TAO_GIOP_Message_Generator_Parser_12 Class Reference

Implementation for GIOP v1.2. More...

#include <GIOP_Message_Generator_Parser_12.h>

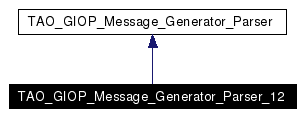

Inheritance diagram for TAO_GIOP_Message_Generator_Parser_12:

Inheritance graph
[legend]
Collaboration diagram for TAO_GIOP_Message_Generator_Parser_12:

Collaboration graph
[legend]
List of all members.

Public Member Functions

virtual int write_request_header (const TAO_Operation_Details &opdetails, TAO_Target_Specification &spec, TAO_OutputCDR &msg)
 Write the request header in to msg.
virtual int write_locate_request_header (CORBA::ULong request_id, TAO_Target_Specification &spec, TAO_OutputCDR &msg)
 Write the LocateRequest header.
virtual int write_reply_header (TAO_OutputCDR &output, TAO_Pluggable_Reply_Params_Base &reply ACE_ENV_ARG_DECL) throw (CORBA::SystemException)
 Write the reply header in to output.
virtual int write_locate_reply_mesg (TAO_OutputCDR &output, CORBA::ULong request_id, TAO_GIOP_Locate_Status_Msg &status)
 Writes the locate _reply message in to the output.
virtual int parse_request_header (TAO_ServerRequest &)
virtual int parse_locate_header (TAO_GIOP_Locate_Request_Header &)
virtual int parse_reply (TAO_InputCDR &input, TAO_Pluggable_Reply_Params &params)
 Parse the reply message.
virtual int parse_locate_reply (TAO_InputCDR &input, TAO_Pluggable_Reply_Params &params)
 Parse the locate reply message.
virtual CORBA::Octet major_version (void)
 Our versions.
virtual CORBA::Octet minor_version (void)
virtual int is_ready_for_bidirectional (void)

Private Member Functions

int marshall_target_spec (TAO_Target_Specification &spec, TAO_OutputCDR &msg)
 Marshall the TargetSpecification.
int check_bidirectional_context (TAO_ServerRequest &)
int process_bidir_context (TAO_Service_Context &, TAO_Transport *transport)
 Process the BiDirContext info that we have received.

Detailed Description

Implementation for GIOP v1.2.


Member Function Documentation

int TAO_GIOP_Message_Generator_Parser_12::check_bidirectional_context TAO_ServerRequest  )  [private]


Check whether we have BiDirContext info available. If available delegate the responsibility on to the TAO_Transport classes to initiate action.

Note:
At somepoint this may be needed for future versions of GIOP and we may have to share this

int TAO_GIOP_Message_Generator_Parser_12::is_ready_for_bidirectional void   )  [virtual]


Is the messaging object ready for processing BiDirectional request/response?

Reimplemented from TAO_GIOP_Message_Generator_Parser.

CORBA::Octet TAO_GIOP_Message_Generator_Parser_12::major_version void   )  [virtual]


Our versions.

Implements TAO_GIOP_Message_Generator_Parser.

int TAO_GIOP_Message_Generator_Parser_12::marshall_target_spec TAO_Target_Specification spec,
TAO_OutputCDR msg
[private]


Marshall the TargetSpecification.

This method may be required for other GIOP versiona coming out later than 1.2. We need to share this method

CORBA::Octet TAO_GIOP_Message_Generator_Parser_12::minor_version void   )  [virtual]


Implements TAO_GIOP_Message_Generator_Parser.

int TAO_GIOP_Message_Generator_Parser_12::parse_locate_header TAO_GIOP_Locate_Request_Header  )  [virtual]


Parse the LocateRequest Header from the incoming stream. This will do a version specific parsing of the incoming Request header

Implements TAO_GIOP_Message_Generator_Parser.

int TAO_GIOP_Message_Generator_Parser_12::parse_locate_reply TAO_InputCDR input,
TAO_Pluggable_Reply_Params params
[virtual]


Parse the locate reply message.

Reimplemented from TAO_GIOP_Message_Generator_Parser.

int TAO_GIOP_Message_Generator_Parser_12::parse_reply TAO_InputCDR input,
TAO_Pluggable_Reply_Params params
[virtual]


Parse the reply message.

Reimplemented from TAO_GIOP_Message_Generator_Parser.

int TAO_GIOP_Message_Generator_Parser_12::parse_request_header TAO_ServerRequest  )  [virtual]


Parse the Request Header from the incoming stream. This will do a version specific parsing of the incoming Request header

Implements TAO_GIOP_Message_Generator_Parser.

int TAO_GIOP_Message_Generator_Parser_12::process_bidir_context TAO_Service_Context ,
TAO_Transport transport
[private]


Process the BiDirContext info that we have received.

int TAO_GIOP_Message_Generator_Parser_12::write_locate_reply_mesg TAO_OutputCDR output,
CORBA::ULong  request_id,
TAO_GIOP_Locate_Status_Msg status
[virtual]


Writes the locate _reply message in to the output.

Implements TAO_GIOP_Message_Generator_Parser.

int TAO_GIOP_Message_Generator_Parser_12::write_locate_request_header CORBA::ULong  request_id,
TAO_Target_Specification spec,
TAO_OutputCDR msg
[virtual]


Write the LocateRequest header.

Implements TAO_GIOP_Message_Generator_Parser.

int TAO_GIOP_Message_Generator_Parser_12::write_reply_header TAO_OutputCDR output,
TAO_Pluggable_Reply_Params_Base &reply  ACE_ENV_ARG_DECL
throw (CORBA::SystemException) [virtual]


Write the reply header in to output.

Implements TAO_GIOP_Message_Generator_Parser.

int TAO_GIOP_Message_Generator_Parser_12::write_request_header const TAO_Operation_Details opdetails,
TAO_Target_Specification spec,
TAO_OutputCDR msg
[virtual]


Write the request header in to msg.

Implements TAO_GIOP_Message_Generator_Parser.


The documentation for this class was generated from the following files:
