ORB_Constants.h File Reference

#include "tao/Basic_Types.h"

Include dependency graph for ORB_Constants.h:

Include dependency graph

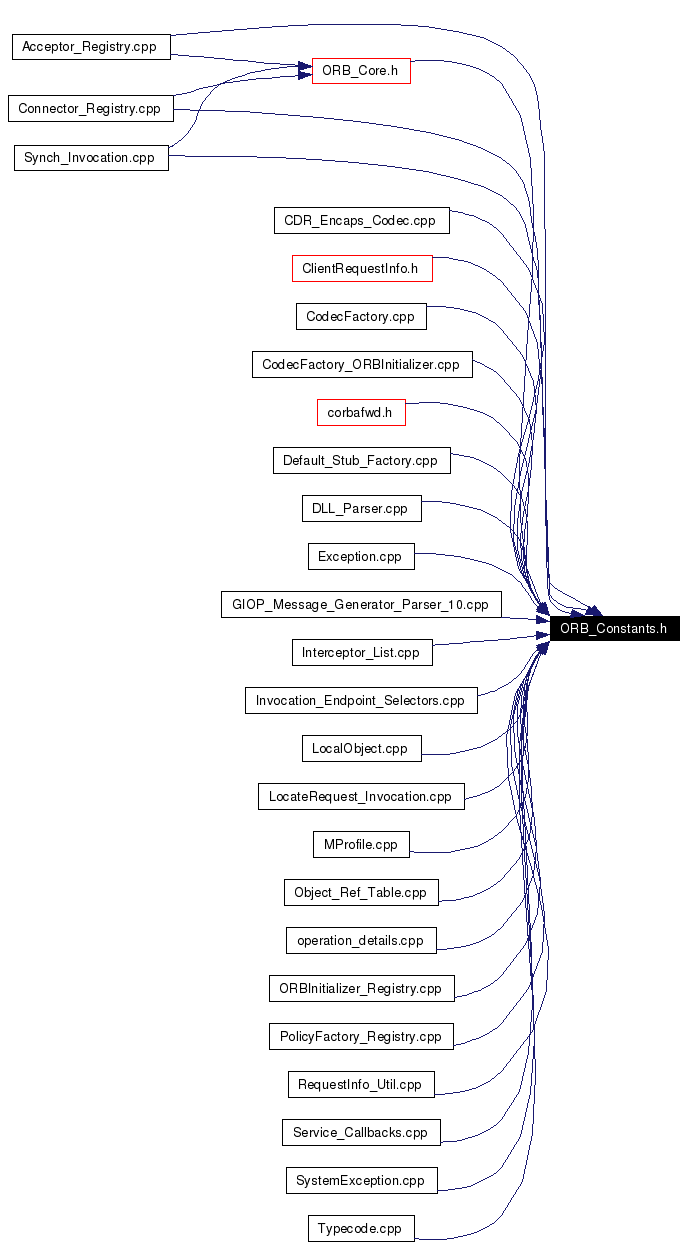

This graph shows which files directly or indirectly include this file:

Included by dependency graph

Namespaces

namespace  CORBA
namespace  TAO

TAO-Specific System Exception Minor Code Values

These system exception minor code values are specific to TAO.

const CORBA::ULong TAO_DEFAULT_MINOR_CODE = TAO::VMCID
 TAO VMCID assigned by the OMG.
const CORBA::ULong TAO_MAX_MINOR_CODE = TAO::MAX_MINOR_CODE
 Maximum allowed system exception minor code.

TAO-Specific Profile IDs

const CORBA::ULong TAO_TAG_UIOP_PROFILE = 0x54414f00U
 Local IPC (Unix Domain).
const CORBA::ULong TAO_TAG_SHMEM_PROFILE = 0x54414f02U
 Shared memory.
const CORBA::ULong TAO_TAG_DIOP_PROFILE = 0x54414f04U
 UDP.
const CORBA::ULong TAO_TAG_UIPMC_PROFILE = 0x54414f0CU
 Unreliable IP Multicast.
const CORBA::ULong TAO_TAG_SCIOP_PROFILE = 0x54414f0EU
 SCIOP.
const CORBA::ULong TAO_TAG_NSKFS_PROFILE = 0x00003039U
 Tandem (HP) File System Protocol.
const CORBA::ULong TAO_TAG_NSKPW_PROFILE = 0x0000303AU
 Tandem (HP) Pathsend Protocol.
const int IPDSFIELD_DSCP_DEFAULT = 0x00
 Local IPC (Unix Domain).

Location Encoding

The location encoding is the 5 bits, after the @ errno encoding.

const CORBA::ULong TAO_INVOCATION_LOCATION_FORWARD_MINOR_CODE = (0x01U << 7)
const CORBA::ULong TAO_INVOCATION_SEND_REQUEST_MINOR_CODE = (0x02U << 7)
const CORBA::ULong TAO_POA_DISCARDING = (0x03U << 7)
const CORBA::ULong TAO_POA_HOLDING = (0x04U << 7)
const CORBA::ULong TAO_UNHANDLED_SERVER_CXX_EXCEPTION = (0x05U << 7)
const CORBA::ULong TAO_INVOCATION_RECV_REQUEST_MINOR_CODE = (0x06U << 7)
const CORBA::ULong TAO_CONNECTOR_REGISTRY_NO_USABLE_PROTOCOL = (0x07U << 7)
const CORBA::ULong TAO_MPROFILE_CREATION_ERROR = (0x08U << 7)
const CORBA::ULong TAO_TIMEOUT_CONNECT_MINOR_CODE = (0x09U << 7)
const CORBA::ULong TAO_TIMEOUT_SEND_MINOR_CODE = (0x0AU << 7)
const CORBA::ULong TAO_TIMEOUT_RECV_MINOR_CODE = (0x0BU << 7)
const CORBA::ULong TAO_IMPLREPO_MINOR_CODE = (0x0CU << 7)
const CORBA::ULong TAO_ACCEPTOR_REGISTRY_OPEN_LOCATION_CODE = (0x0DU << 7)
const CORBA::ULong TAO_ORB_CORE_INIT_LOCATION_CODE = (0x0EU << 7)
const CORBA::ULong TAO_POLICY_NARROW_CODE = (0x0FU << 7)
const CORBA::ULong TAO_GUARD_FAILURE = (0x10U << 7)
const CORBA::ULong TAO_POA_BEING_DESTROYED = (0x11U << 7)
const CORBA::ULong TAO_POA_INACTIVE = (0x12U << 7)
const CORBA::ULong TAO_CONNECTOR_REGISTRY_INIT_LOCATION_CODE = (0x13U << 7)
const CORBA::ULong TAO_AMH_REPLY_LOCATION_CODE = (0x14U << 7)
const CORBA::ULong TAO_RTCORBA_THREAD_CREATION_LOCATION_CODE = (0x15U << 7)

Defines

#define TAO_TWOWAY_RESPONSE_FLAG   255

Variables

const ULong OMGVMCID = 0x4f4d0000U
 The OMG Vendor Minor Codeset ID (VMCID).
const CORBA::ULong VMCID = 0x54410000U
 TAO Vendor Minor Codeset ID (VMCID).
const CORBA::ULong MAX_MINOR_CODE = VMCID | 0xfffU
 Maximum allowed TAO system exception minor code.
const CORBA::ULong VPVID = VMCID
 TAO Vendor PolicyType Valueset ID (VPVID).
const CORBA::ULong TAO_SVC_CONTEXT_ALIGN = 0x54414f00U

Detailed Description

Id
ORB_Constants.h,v 1.6 2004/10/11 22:01:04 irfan Exp

Constants needed by various files.

Author:
Jeff Parsons

Ossama Othman


Define Documentation

#define TAO_TWOWAY_RESPONSE_FLAG   255



Variable Documentation

const int IPDSFIELD_DSCP_DEFAULT = 0x00


Local IPC (Unix Domain).

const CORBA::ULong TAO::MAX_MINOR_CODE = VMCID | 0xfffU


Maximum allowed TAO system exception minor code.

Vendors are only allowed to use the lower order 12 bits of their when defining vendor-specific exception minor codes. MAX_MINOR_CODE is the maximum minor code value available to TAO. Do not exceed it when defining TAO system exception minor codes.

See also:
VMCID

const ULong CORBA::OMGVMCID = 0x4f4d0000U


The OMG Vendor Minor Codeset ID (VMCID).

This number is reserved by the OMG as a prefix to all the standard system exception minor codes. Check the CORBA/IIOP specification for details.

OMG defined system exception minor codes should be logically OR-ed with this constant when passing such minor codes to a CORBA::SystemException constructor. For example, throwing a CORBA::BAD_PARAM exception with an OMG defined minor code of 2 is done as follows:

   *   throw (CORBA::BAD_PARAM (CORBA::OMGVMCID | 2, CORBA::COMPLETED_NO);
   *

*NOT* as:

   *   throw (CORBA::BAD_PARAM (2, CORBA::COMPLETED_NO);
   *

const CORBA::ULong TAO_ACCEPTOR_REGISTRY_OPEN_LOCATION_CODE = (0x0DU << 7)


const CORBA::ULong TAO_AMH_REPLY_LOCATION_CODE = (0x14U << 7)


const CORBA::ULong TAO_CONNECTOR_REGISTRY_INIT_LOCATION_CODE = (0x13U << 7)


const CORBA::ULong TAO_CONNECTOR_REGISTRY_NO_USABLE_PROTOCOL = (0x07U << 7)


const CORBA::ULong TAO_DEFAULT_MINOR_CODE = TAO::VMCID


TAO VMCID assigned by the OMG.

Note:
This constant has historically been used in the wrong way. It was often used as the location argument to the CORBA::SystemException::_tao_minor_code() static method. A more appropriate default location argument/value would have been zero since the location code resides in portion of the lower order 12 bits, not the higher order 20 bits which is where the VMCID resides, and what this value happens to be.

Deprecated:
Please use TAO::VMCID instead, or zero if being used as default TAO exception location code argument.
See also:
TAO::VMCID

const CORBA::ULong TAO_GUARD_FAILURE = (0x10U << 7)


const CORBA::ULong TAO_IMPLREPO_MINOR_CODE = (0x0CU << 7)


const CORBA::ULong TAO_INVOCATION_LOCATION_FORWARD_MINOR_CODE = (0x01U << 7)


const CORBA::ULong TAO_INVOCATION_RECV_REQUEST_MINOR_CODE = (0x06U << 7)


const CORBA::ULong TAO_INVOCATION_SEND_REQUEST_MINOR_CODE = (0x02U << 7)


const CORBA::ULong TAO_MAX_MINOR_CODE = TAO::MAX_MINOR_CODE


Maximum allowed system exception minor code.

Deprecated:
Please use TAO::MAX_MINOR_CODE instead.
See also:
TAO::MAX_MINOR_CODE

const CORBA::ULong TAO_MPROFILE_CREATION_ERROR = (0x08U << 7)


const CORBA::ULong TAO_ORB_CORE_INIT_LOCATION_CODE = (0x0EU << 7)


const CORBA::ULong TAO_POA_BEING_DESTROYED = (0x11U << 7)


const CORBA::ULong TAO_POA_DISCARDING = (0x03U << 7)


const CORBA::ULong TAO_POA_HOLDING = (0x04U << 7)


const CORBA::ULong TAO_POA_INACTIVE = (0x12U << 7)


const CORBA::ULong TAO_POLICY_NARROW_CODE = (0x0FU << 7)


const CORBA::ULong TAO_RTCORBA_THREAD_CREATION_LOCATION_CODE = (0x15U << 7)


const CORBA::ULong TAO_SVC_CONTEXT_ALIGN = 0x54414f00U


Note:
This is *extremely* brittle but works.

const CORBA::ULong TAO_TAG_DIOP_PROFILE = 0x54414f04U


UDP.

const CORBA::ULong TAO_TAG_NSKFS_PROFILE = 0x00003039U


Tandem (HP) File System Protocol.

const CORBA::ULong TAO_TAG_NSKPW_PROFILE = 0x0000303AU


Tandem (HP) Pathsend Protocol.

const CORBA::ULong TAO_TAG_SCIOP_PROFILE = 0x54414f0EU


SCIOP.

const CORBA::ULong TAO_TAG_SHMEM_PROFILE = 0x54414f02U


Shared memory.

const CORBA::ULong TAO_TAG_UIOP_PROFILE = 0x54414f00U


Local IPC (Unix Domain).

const CORBA::ULong TAO_TAG_UIPMC_PROFILE = 0x54414f0CU


Unreliable IP Multicast.

const CORBA::ULong TAO_TIMEOUT_CONNECT_MINOR_CODE = (0x09U << 7)


const CORBA::ULong TAO_TIMEOUT_RECV_MINOR_CODE = (0x0BU << 7)


const CORBA::ULong TAO_TIMEOUT_SEND_MINOR_CODE = (0x0AU << 7)


const CORBA::ULong TAO_UNHANDLED_SERVER_CXX_EXCEPTION = (0x05U << 7)


const CORBA::ULong TAO::VMCID = 0x54410000U


TAO Vendor Minor Codeset ID (VMCID).

TAO Vendor Minor Codeset ID (VMCID) assigned by the OMG. Do *NOT* change at random. The TAO VMCID is an ASCII representation of TA0xxxx (close enough since a VMCID only consists of the higher order 20 bits of a 32 bit unsigned long integer). The first 16 bits are TA, and the remaining 4 are 0.

Note:
Remember that we can only play with the lower order 12 bits. MAX_MINOR_CODE is there to remind us of that.
See also:
MAX_MINOR_CODE

const CORBA::ULong TAO::VPVID = VMCID


TAO Vendor PolicyType Valueset ID (VPVID).

TAO Vendor PolicyType Valueset ID (VPVID) assigned by the OMG. This value was automatically assigned when TAO's VMCID was assigned. Its value is always the same as the VMCID.

As with TAO-specific system exception minor codes, the TAO-specific PolicyType space occupies the lower order 12 bits of the TAO VPVID, i.e.

   *    TAO::VPVID <= TAO PolicyType <= TAO::VPVID | 0xfffU.
   *

For example, TAO-specific PolicyTypes should be defined by logically "OR-ing" a 12 bit or less (i.e. 0x0U <= value <= 0xfffU) value with TAO::VPVID.

See also:
VMCID
