ACE_RMCast_Module Class Reference

Reliable Multicast Module. More...

#include <RMCast_Module.h>

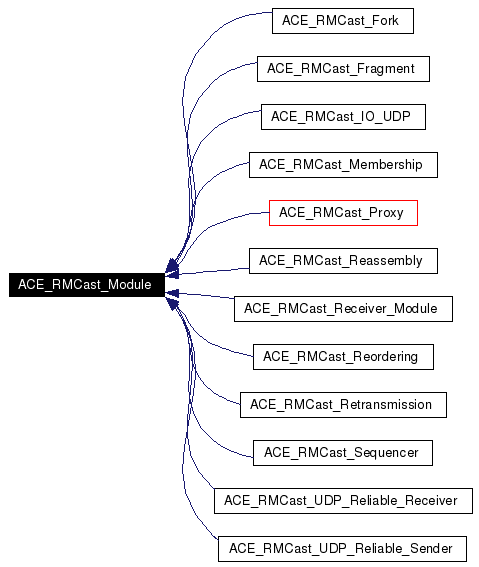

Inheritance diagram for ACE_RMCast_Module:

[legend]Collaboration diagram for ACE_RMCast_Module:

[legend]List of all members.

Public Member Functions
	ACE_RMCast_Module (void)
	Constructor.
virtual	~ACE_RMCast_Module (void)
	Destructor.
virtual int	next (ACE_RMCast_Module *next)
	Modifier for the next element in the stack.
virtual ACE_RMCast_Module *	next (void) const
	Accesor for the next element in the stack.
virtual int	open (void)
	Initialize the module, setting up the next module.
virtual int	close (void)
	Close the module.
virtual int	data (ACE_RMCast::Data &)
	Push data through the stack.
virtual int	poll (ACE_RMCast::Poll &)
	Push a polling request through the stack.
virtual int	ack_join (ACE_RMCast::Ack_Join &)
	Push a message to ack a join request through the stack.
virtual int	ack_leave (ACE_RMCast::Ack_Leave &)
	Push a message to ack a leave request through the stack.
virtual int	ack (ACE_RMCast::Ack &)
	Push an ack mesage through the stack.
virtual int	join (ACE_RMCast::Join &)
	Push a join message through the stack.
virtual int	leave (ACE_RMCast::Leave &)
	Push a leave message through the stack.
Private Attributes
ACE_RMCast_Module *	next_
	The next element in the stack.

---

Detailed Description

Reliable Multicast Module.

The reliable multicast protocol is implemented as a stack of "Modules" each one performing one specific task. In short, this is an instance of the pipes-and-filters architectural pattern.

---

Constructor & Destructor Documentation

ACE_INLINE ACE_RMCast_Module::ACE_RMCast_Module (  void   )

Constructor.

ACE_RMCast_Module::~ACE_RMCast_Module (  void   )  [virtual]

Destructor.

---

Member Function Documentation

int ACE_RMCast_Module::ack (  ACE_RMCast::Ack &   )  [virtual]

Push an ack mesage through the stack. Reimplemented in ACE_RMCast_Fork, ACE_RMCast_IO_UDP, ACE_RMCast_Membership, ACE_RMCast_Proxy, ACE_RMCast_Receiver_Module, and ACE_RMCast_Retransmission.

int ACE_RMCast_Module::ack_join (  ACE_RMCast::Ack_Join &   )  [virtual]

Push a message to ack a join request through the stack. Reimplemented in ACE_RMCast_Fork, ACE_RMCast_IO_UDP, ACE_RMCast_Receiver_Module, and ACE_RMCast_Reordering.

int ACE_RMCast_Module::ack_leave (  ACE_RMCast::Ack_Leave &   )  [virtual]

Push a message to ack a leave request through the stack. Reimplemented in ACE_RMCast_Fork, ACE_RMCast_IO_UDP, and ACE_RMCast_Receiver_Module.

int ACE_RMCast_Module::close (  void   )  [virtual]

Close the module. Reimplemented in ACE_RMCast_Fork, ACE_RMCast_Reassembly, ACE_RMCast_Reordering, and ACE_RMCast_Retransmission.

int ACE_RMCast_Module::data (  ACE_RMCast::Data &   )  [virtual]

Push data through the stack. Reimplemented in ACE_RMCast_Fork, ACE_RMCast_Fragment, ACE_RMCast_IO_UDP, ACE_RMCast_Reassembly, ACE_RMCast_Receiver_Module, ACE_RMCast_Reordering, ACE_RMCast_Retransmission, and ACE_RMCast_Sequencer.

int ACE_RMCast_Module::join (  ACE_RMCast::Join &   )  [virtual]

Push a join message through the stack. Reimplemented in ACE_RMCast_Fork, ACE_RMCast_IO_UDP, ACE_RMCast_Membership, ACE_RMCast_Receiver_Module, and ACE_RMCast_Retransmission.

int ACE_RMCast_Module::leave (  ACE_RMCast::Leave &   )  [virtual]

Push a leave message through the stack. Reimplemented in ACE_RMCast_Fork, ACE_RMCast_IO_UDP, ACE_RMCast_Membership, ACE_RMCast_Receiver_Module, and ACE_RMCast_Retransmission.

ACE_RMCast_Module * ACE_RMCast_Module::next (  void   )  const [virtual]

Accesor for the next element in the stack.

int ACE_RMCast_Module::next (  ACE_RMCast_Module *  next  )  [virtual]

Modifier for the next element in the stack.

int ACE_RMCast_Module::open (  void   )  [virtual]

Initialize the module, setting up the next module. Reimplemented in ACE_RMCast_Fork.

int ACE_RMCast_Module::poll (  ACE_RMCast::Poll &   )  [virtual]

Push a polling request through the stack. Reimplemented in ACE_RMCast_Fork, ACE_RMCast_IO_UDP, and ACE_RMCast_Receiver_Module.

---

Member Data Documentation

ACE_RMCast_Module* ACE_RMCast_Module::next_ [private]

The next element in the stack.

---

The documentation for this class was generated from the following files:

• RMCast_Module.h
• RMCast_Module.cpp
• RMCast_Module.i

---
