ACE_WFMO_Reactor_Handler_Repository Class Reference

Used to map <ace_handle>s onto the appropriate <ace_event_handler> * and other information. More...

#include <WFMO_Reactor.h>

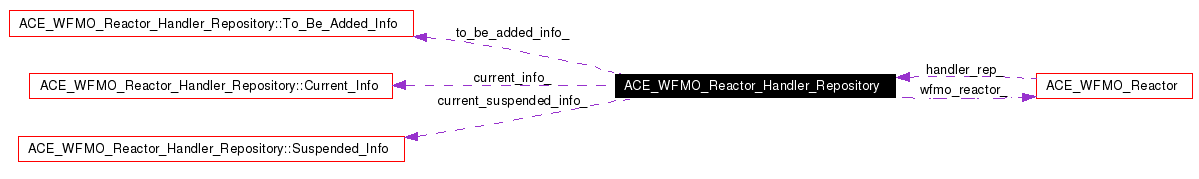

Collaboration diagram for ACE_WFMO_Reactor_Handler_Repository:

[legend]List of all members.

Public Member Functions
	ACE_WFMO_Reactor_Handler_Repository (ACE_WFMO_Reactor &wfmo_reactor)
	Constructor.
virtual	~ACE_WFMO_Reactor_Handler_Repository (void)
	Destructor.
int	open (size_t size)
	Initialize the repository of the approriate <size>.
int	close (void)
	Close down the handler repository.
int	bind (ACE_HANDLE, ACE_Event_Handler *)
int	bind_i (int io_entry, ACE_Event_Handler *event_handler, long network_events, ACE_HANDLE io_handle, ACE_HANDLE event_handle, int delete_event)
int	unbind (ACE_HANDLE, ACE_Reactor_Mask mask)
	Remove the binding of <ace_handle> in accordance with the <mask>.
int	unbind_i (ACE_HANDLE, ACE_Reactor_Mask mask, int &changes_required)
	Non-lock-grabbing version of <unbind>.
void	unbind_all (void)
	Remove all bindings of <ACE_HANDLE, ACE_Event_Handler> tuples.
int	invalid_handle (ACE_HANDLE handle) const
DWORD	max_handlep1 (void) const
	Maximum ACE_HANDLE value, plus 1.
ACE_HANDLE *	handles (void) const
Current_Info *	current_info (void) const
virtual int	changes_required (void)
	Check if changes to the handle set are required.
virtual int	make_changes (void)
	Make changes to the handle set.
int	scheduled_for_deletion (size_t slot) const
	Check to see if <slot> has been scheduled for deletion.
int	modify_network_events_i (ACE_HANDLE io_handle, ACE_Reactor_Mask new_masks, ACE_Reactor_Mask &old_masks, long &new_network_events, ACE_HANDLE &event_handle, int &delete_event, int operation)
ACE_Reactor_Mask	bit_ops (long &existing_masks, ACE_Reactor_Mask to_be_removed_masks, int operation)
int	suspend_handler_i (ACE_HANDLE handle, int &changes_required)
	Temporarily suspend entry.
int	resume_handler_i (ACE_HANDLE handle, int &changes_required)
	Resume suspended entry.
int	make_changes_in_current_infos (void)
	Deletions and suspensions in current_info_.
int	make_changes_in_suspension_infos (void)
	Deletions and resumptions in current_suspended_info_.
int	make_changes_in_to_be_added_infos (void)
int	remove_handler_i (size_t slot, ACE_Reactor_Mask mask)
	Removes the <ace_event_handler> at <slot> from the table.
int	remove_suspended_handler_i (size_t slot, ACE_Reactor_Mask mask)
	Removes the <ace_event_handler> at <slot> from the table.
int	remove_to_be_added_handler_i (size_t slot, ACE_Reactor_Mask to_be_removed_masks)
	Removes the <ace_event_handler> at <slot> from the table.
ACE_Event_Handler *	find_handler (ACE_HANDLE handle)
int	handler (ACE_HANDLE handle, ACE_Reactor_Mask mask, ACE_Event_Handler **event_handler=0)
ACE_Event_Handler *	handler (ACE_HANDLE handle, long &existing_masks)
void	dump (void) const
	Dump the state of an object.
Protected Attributes
ACE_WFMO_Reactor &	wfmo_reactor_
	Reference to our <wfmo_reactor>.
size_t	max_size_
	Maximum number of handles.
ACE_HANDLE *	current_handles_
Current_Info *	current_info_
	Array of current entries in the table.
DWORD	max_handlep1_
	A count of the number of active handles.
To_Be_Added_Info *	to_be_added_info_
	Information for entries to be added.
size_t	handles_to_be_added_
	Number of records to be added.
Suspended_Info *	current_suspended_info_
	Currently suspended handles.
size_t	suspended_handles_
	Number of currently suspended handles.
size_t	handles_to_be_suspended_
	Number of records to be suspended.
size_t	handles_to_be_resumed_
	Number of records to be resumed.
size_t	handles_to_be_deleted_
	Number of records to be deleted.
Friends
class	ACE_WFMO_Reactor
class	ACE_WFMO_Reactor_Test

---

Detailed Description

Used to map <ace_handle>s onto the appropriate <ace_event_handler> * and other information.

---

Constructor & Destructor Documentation

ACE_WFMO_Reactor_Handler_Repository::ACE_WFMO_Reactor_Handler_Repository (  ACE_WFMO_Reactor &  wfmo_reactor  )

Constructor.

ACE_WFMO_Reactor_Handler_Repository::~ACE_WFMO_Reactor_Handler_Repository (  void   )  [virtual]

Destructor.

---

Member Function Documentation

int ACE_WFMO_Reactor_Handler_Repository::bind (  ACE_HANDLE  , ACE_Event_Handler *  )

Bind the <ACE_Event_Handler *> to the <ace_handle>. This is for the simple event entry.

int ACE_WFMO_Reactor_Handler_Repository::bind_i (  int  io_entry, ACE_Event_Handler *  event_handler, long  network_events, ACE_HANDLE  io_handle, ACE_HANDLE  event_handle, int  delete_event )

Insert I/O <event_handler> entry into the system. This method assumes that the lock are head *before* this method is invoked.

ACE_Reactor_Mask ACE_WFMO_Reactor_Handler_Repository::bit_ops (  long &  existing_masks, ACE_Reactor_Mask  to_be_removed_masks, int  operation )

This method is used to change the network mask left (if any) after a remove request to <wfmo_reactor>

ACE_INLINE int ACE_WFMO_Reactor_Handler_Repository::changes_required (  void   )  [virtual]

Check if changes to the handle set are required.

ACE_INLINE int ACE_WFMO_Reactor_Handler_Repository::close (  void   )

Close down the handler repository.

ACE_INLINE ACE_WFMO_Reactor_Handler_Repository::Current_Info * ACE_WFMO_Reactor_Handler_Repository::current_info (  void   )  const

Pointer to the beginning of the current array of <ace_event_handler> *'s.

void ACE_WFMO_Reactor_Handler_Repository::dump (  void   )  const

Dump the state of an object.

ACE_Event_Handler * ACE_WFMO_Reactor_Handler_Repository::find_handler (  ACE_HANDLE  handle  )

Return the Event_Handler associated with <handle>. Return 0 if <handle> is not registered.

ACE_Event_Handler * ACE_WFMO_Reactor_Handler_Repository::handler (  ACE_HANDLE  handle, long &  existing_masks )

Check to see if <handle> is associated with a valid Event_Handler. Return Event_Handler and associated masks.

int ACE_WFMO_Reactor_Handler_Repository::handler (  ACE_HANDLE  handle, ACE_Reactor_Mask  mask, ACE_Event_Handler **  event_handler = 0 )

Check to see if <handle> is associated with a valid Event_Handler bound to <mask>. Return the <event_handler> associated with this <handler> if <event_handler> != 0.

ACE_INLINE ACE_HANDLE * ACE_WFMO_Reactor_Handler_Repository::handles (  void   )  const

Pointer to the beginning of the current array of <ace_handle> 's.

ACE_INLINE int ACE_WFMO_Reactor_Handler_Repository::invalid_handle (  ACE_HANDLE  handle  )  const

ACE_INLINE int ACE_WFMO_Reactor_Handler_Repository::make_changes (  void   )  [virtual]

Make changes to the handle set.

int ACE_WFMO_Reactor_Handler_Repository::make_changes_in_current_infos (  void   )

Deletions and suspensions in current_info_.

int ACE_WFMO_Reactor_Handler_Repository::make_changes_in_suspension_infos (  void   )

Deletions and resumptions in current_suspended_info_.

int ACE_WFMO_Reactor_Handler_Repository::make_changes_in_to_be_added_infos (  void   )

Deletions in to_be_added_info_, or transfers to current_info_ or current_suspended_info_ from to_be_added_info_

ACE_INLINE DWORD ACE_WFMO_Reactor_Handler_Repository::max_handlep1 (  void   )  const

Maximum ACE_HANDLE value, plus 1.

int ACE_WFMO_Reactor_Handler_Repository::modify_network_events_i (  ACE_HANDLE  io_handle, ACE_Reactor_Mask  new_masks, ACE_Reactor_Mask &  old_masks, long &  new_network_events, ACE_HANDLE &  event_handle, int &  delete_event, int  operation )

This method is used to calculate the network mask after a mask_op request to <wfmo_reactor>. Note that because the <event_handler> may already be in the handler repository, we may have to find the old event and the old network events

int ACE_WFMO_Reactor_Handler_Repository::open (  size_t  size  )

Initialize the repository of the approriate <size>.

int ACE_WFMO_Reactor_Handler_Repository::remove_handler_i (  size_t  slot, ACE_Reactor_Mask  mask )

Removes the <ace_event_handler> at <slot> from the table.

int ACE_WFMO_Reactor_Handler_Repository::remove_suspended_handler_i (  size_t  slot, ACE_Reactor_Mask  mask )

Removes the <ace_event_handler> at <slot> from the table.

int ACE_WFMO_Reactor_Handler_Repository::remove_to_be_added_handler_i (  size_t  slot, ACE_Reactor_Mask  to_be_removed_masks )

Removes the <ace_event_handler> at <slot> from the table.

int ACE_WFMO_Reactor_Handler_Repository::resume_handler_i (  ACE_HANDLE  handle, int &  changes_required )

Resume suspended entry.

ACE_INLINE int ACE_WFMO_Reactor_Handler_Repository::scheduled_for_deletion (  size_t  slot  )  const

Check to see if <slot> has been scheduled for deletion.

int ACE_WFMO_Reactor_Handler_Repository::suspend_handler_i (  ACE_HANDLE  handle, int &  changes_required )

Temporarily suspend entry.

ACE_INLINE int ACE_WFMO_Reactor_Handler_Repository::unbind (  ACE_HANDLE  , ACE_Reactor_Mask  mask )

Remove the binding of <ace_handle> in accordance with the <mask>.

void ACE_WFMO_Reactor_Handler_Repository::unbind_all (  void   )

Remove all bindings of <ACE_HANDLE, ACE_Event_Handler> tuples.

int ACE_WFMO_Reactor_Handler_Repository::unbind_i (  ACE_HANDLE  , ACE_Reactor_Mask  mask, int &  changes_required )

Non-lock-grabbing version of <unbind>.

---

Friends And Related Function Documentation

friend class ACE_WFMO_Reactor [friend]

friend class ACE_WFMO_Reactor_Test [friend]

---

Member Data Documentation

ACE_HANDLE* ACE_WFMO_Reactor_Handler_Repository::current_handles_ [protected]

Array of <ace_handles> passed to <waitformultipleobjects>. This is not part of the structure as the handle array needs to be passed directly to <waitformultipleobjects>.

Current_Info* ACE_WFMO_Reactor_Handler_Repository::current_info_ [protected]

Array of current entries in the table.

Suspended_Info* ACE_WFMO_Reactor_Handler_Repository::current_suspended_info_ [protected]

Currently suspended handles.

size_t ACE_WFMO_Reactor_Handler_Repository::handles_to_be_added_ [protected]

Number of records to be added.

size_t ACE_WFMO_Reactor_Handler_Repository::handles_to_be_deleted_ [protected]

Number of records to be deleted.

size_t ACE_WFMO_Reactor_Handler_Repository::handles_to_be_resumed_ [protected]

Number of records to be resumed.

size_t ACE_WFMO_Reactor_Handler_Repository::handles_to_be_suspended_ [protected]

Number of records to be suspended.

DWORD ACE_WFMO_Reactor_Handler_Repository::max_handlep1_ [protected]

A count of the number of active handles.

size_t ACE_WFMO_Reactor_Handler_Repository::max_size_ [protected]

Maximum number of handles.

size_t ACE_WFMO_Reactor_Handler_Repository::suspended_handles_ [protected]

Number of currently suspended handles.

To_Be_Added_Info* ACE_WFMO_Reactor_Handler_Repository::to_be_added_info_ [protected]

Information for entries to be added.

ACE_WFMO_Reactor& ACE_WFMO_Reactor_Handler_Repository::wfmo_reactor_ [protected]

Reference to our <wfmo_reactor>.

---

The documentation for this class was generated from the following files:

• WFMO_Reactor.h
• WFMO_Reactor.cpp
• WFMO_Reactor.inl

---
