ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK > Class Template Reference

Generic interface for iterating over a subclass of <ace_timer_queue>. More...

#include <Timer_Queue_T.h>

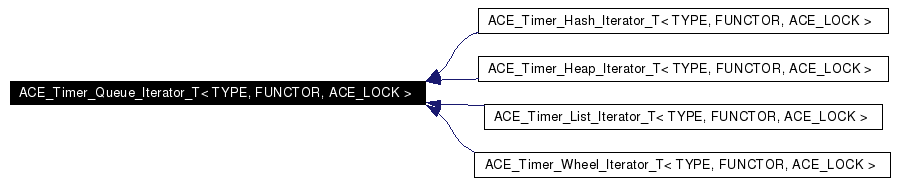

Inheritance diagram for ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >:

Inheritance graph
[legend]
List of all members.

Public Member Functions

 ACE_Timer_Queue_Iterator_T (void)
 Constructor.
virtual ~ACE_Timer_Queue_Iterator_T (void)
 Destructor.
virtual void first (void)=0
 Positions the iterator at the earliest node in the Timer Queue.
virtual void next (void)=0
 Positions the iterator at the next node in the Timer Queue.
virtual int isdone (void) const =0
 Returns true when there are no more nodes in the sequence.
virtual ACE_Timer_Node_T<
TYPE > *
item (void)=0
 Returns the node at the current position in the sequence.

Detailed Description

template<class TYPE, class FUNCTOR, class ACE_LOCK>
class ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >

Generic interface for iterating over a subclass of <ace_timer_queue>.

This is a generic iterator that can be used to visit every node of a timer queue. Be aware that it isn't guaranteed that the transversal will be in order of timeout values.


Constructor & Destructor Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::ACE_Timer_Queue_Iterator_T void   )


Constructor.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::~ACE_Timer_Queue_Iterator_T void   )  [virtual]


Destructor.


Member Function Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual void ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::first void   )  [pure virtual]


Positions the iterator at the earliest node in the Timer Queue.

Implemented in ACE_Timer_Hash_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual int ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::isdone void   )  const [pure virtual]


Returns true when there are no more nodes in the sequence.

Implemented in ACE_Timer_Hash_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual ACE_Timer_Node_T<TYPE>* ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::item void   )  [pure virtual]


Returns the node at the current position in the sequence.

Implemented in ACE_Timer_Hash_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual void ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::next void   )  [pure virtual]


Positions the iterator at the next node in the Timer Queue.

Implemented in ACE_Timer_Hash_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >.


The documentation for this class was generated from the following files:
