ACE_Stream_Tail<> Class Template Reference

Standard module that acts as the head of a stream. More...

#include <Stream_Modules.h>

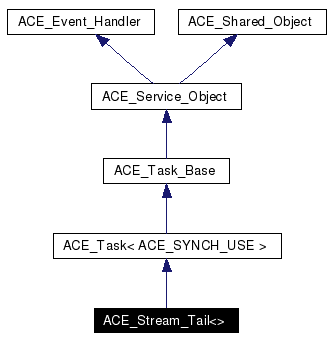

Inheritance diagram for ACE_Stream_Tail<>:

Inheritance graph
[legend]

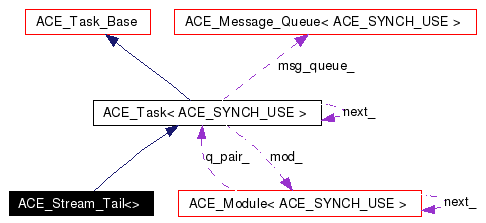

Collaboration diagram for ACE_Stream_Tail<>:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Stream_Tail (void)
 Construction.
 ~ACE_Stream_Tail (void)
 Destruction.
virtual int open (void *a=0)
virtual int close (u_long flags=0)
virtual int put (ACE_Message_Block *msg, ACE_Time_Value *=0)
virtual int svc (void)
 Run by a daemon thread to handle deferred processing.
virtual int init (int argc, ACE_TCHAR *argv[])
 Initializes object when dynamic linking occurs.
virtual int info (ACE_TCHAR **info_string, size_t length) const
 Returns information on a service object.
virtual int fini (void)
 Terminates object when dynamic unlinking occurs.
void dump (void) const
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Private Member Functions

int control (ACE_Message_Block *)
 Performs canonical flushing at the ACE_Stream tail.
int canonical_flush (ACE_Message_Block *)

Detailed Description

template<ACE_SYNCH_DECL>
class ACE_Stream_Tail<>

Standard module that acts as the head of a stream.


Constructor & Destructor Documentation

template<ACE_SYNCH_DECL >
ACE_Stream_Tail<>::ACE_Stream_Tail void   )


Construction.

template<ACE_SYNCH_DECL >
ACE_Stream_Tail<>::~ACE_Stream_Tail void   )


Destruction.


Member Function Documentation

template<ACE_SYNCH_DECL >
int ACE_Stream_Tail<>::canonical_flush ACE_Message_Block  )  [private]


template<ACE_SYNCH_DECL >
int ACE_Stream_Tail<>::close u_long  flags = 0  )  [virtual]


Hook called from <ace_thread_exit> when during thread exit and from the default implementation of <module_closed>. In general, this method shouldn't be called directly by an application, particularly if the <task> is running as an Active Object. Instead, a special message should be passed into the <task> via the <put> method defined below, and the <svc> method should interpret this as a flag to shut down the <task>.

Reimplemented from ACE_Task_Base.

template<ACE_SYNCH_DECL >
int ACE_Stream_Tail<>::control ACE_Message_Block  )  [private]


Performs canonical flushing at the ACE_Stream tail.

template<ACE_SYNCH_DECL >
void ACE_Stream_Tail<>::dump void   )  const


Dump the state of an object.

Reimplemented from ACE_Task< ACE_SYNCH_USE >.

template<ACE_SYNCH_DECL >
int ACE_Stream_Tail<>::fini void   )  [virtual]


Terminates object when dynamic unlinking occurs.

Reimplemented from ACE_Shared_Object.

template<ACE_SYNCH_DECL >
int ACE_Stream_Tail<>::info ACE_TCHAR **  info_string,
size_t  length
const [virtual]


Returns information on a service object.

Reimplemented from ACE_Shared_Object.

template<ACE_SYNCH_DECL >
int ACE_Stream_Tail<>::init int  argc,
ACE_TCHAR argv[]
[virtual]


Initializes object when dynamic linking occurs.

Reimplemented from ACE_Shared_Object.

template<ACE_SYNCH_DECL >
int ACE_Stream_Tail<>::open void *  a = 0  )  [virtual]


Hook called to initialize a task and prepare it for execution. <args> can be used to pass arbitrary information into <open>.

Reimplemented from ACE_Task_Base.

template<ACE_SYNCH_DECL >
int ACE_Stream_Tail<>::put ACE_Message_Block msg,
ACE_Time_Value = 0
[virtual]


A hook method that can be used to pass a message to a task, where it can be processed immediately or queued for subsequent processing in the <svc> hook method.

Reimplemented from ACE_Task_Base.

template<ACE_SYNCH_DECL >
int ACE_Stream_Tail<>::svc void   )  [virtual]


Run by a daemon thread to handle deferred processing.

Reimplemented from ACE_Task_Base.


Member Data Documentation

template<ACE_SYNCH_DECL >
ACE_Stream_Tail<>::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

Reimplemented from ACE_Task< ACE_SYNCH_USE >.


The documentation for this class was generated from the following files:
