TAO_ORB_Manager Class Reference

Helper class for simple ORB/POA initialization and registering servants with the POA. More...

#include <ORB_Manager.h>

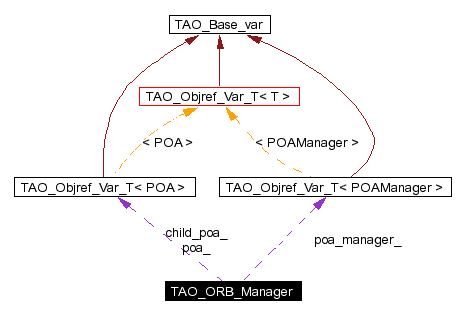

Collaboration diagram for TAO_ORB_Manager:

[legend]List of all members.

Public Methods
	TAO_ORB_Manager (CORBA::ORB_ptr orb=0, PortableServer::POA_ptr poa=0, PortableServer::POAManager_ptr poa_manager=0)
int	init (int &argc, char *argv[] ACE_ENV_ARG_DECL_WITH_DEFAULTS)
int	init (int &argc, char *argv[], const char *orb_name ACE_ENV_ARG_DECL_WITH_DEFAULTS)
int	init_child_poa (int &argc, char *argv[], const char *poa_name ACE_ENV_ARG_DECL_WITH_DEFAULTS)
int	init_child_poa (int &argc, char *argv[], const char *poa_name, const char *orb_name ACE_ENV_ARG_DECL_WITH_DEFAULTS)
int	fini (ACE_ENV_SINGLE_ARG_DECL)
	~TAO_ORB_Manager (void)
	Destructor.
int	activate_poa_manager (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
char *	activate (PortableServer::Servant servant ACE_ENV_ARG_DECL_WITH_DEFAULTS)
void	deactivate (const char *id ACE_ENV_ARG_DECL_WITH_DEFAULTS)
char *	activate_under_child_poa (const char *object_name, PortableServer::Servant servant ACE_ENV_ARG_DECL_WITH_DEFAULTS)
void	deactivate_under_child_poa (const char *id ACE_ENV_ARG_DECL_WITH_DEFAULTS)
int	run (ACE_Time_Value &tv ACE_ENV_ARG_DECL_WITH_DEFAULTS)
int	run (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
CORBA::ORB_ptr	orb (void)
PortableServer::POA_ptr	root_poa (void)
PortableServer::POA_ptr	child_poa (void)
PortableServer::POAManager_ptr	poa_manager (void)
Protected Attributes
CORBA::ORB_var	orb_
	The ORB.
PortableServer::POA_var	poa_
	The POA for this ORB.
PortableServer::POA_var	child_poa_
	Child poa under the root POA.
PortableServer::POAManager_var	poa_manager_
	The POA manager of poa_.

---

Detailed Description

Helper class for simple ORB/POA initialization and registering servants with the POA.

This class is a TAO extension that makes it easier to write CORBA applications. It's just a wrapper and doesn't do anything special within the ORB itself.

---

Constructor & Destructor Documentation

TAO_ORB_Manager::TAO_ORB_Manager (  CORBA::ORB_ptr    orb = 0, PortableServer::POA_ptr    poa = 0, PortableServer::POAManager_ptr    poa_manager = 0 )

Constructor. Parameters: orb  pointer to an ORB which is duplicated an stored internally in an ORB_var. If pointer is 0, a new ORB pointer is created internally in the init() call. poa  pointer to a POA which is duplicated and stored internally in a POA_var. If pointer is 0, a pointer to the Root POA is obtained from the ORB. poa_manager  pointer to a POA Manager which is duplicated and stored internally in a POAManager_var. If pointer is 0, a new POAManager is created internally in the init() call.

TAO_ORB_Manager::~TAO_ORB_Manager (  void    )

Destructor.

---

Member Function Documentation

char * TAO_ORB_Manager::activate (  PortableServer::Servant servant    ACE_ENV_ARG_DECL_WITH_DEFAULTS )

Activate <servant>, using the POA <activate_object> call. Users can call this method multiple times to activate multiple objects. Returns: 0 on failure, a string representation of the object ID if successful. Caller of this method is responsible for memory deallocation of the string.

int TAO_ORB_Manager::activate_poa_manager (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )

Put POA manager into the <Active> state, so that incoming corba requests are processed. This method is useful for clients, which are not going to enter "orb->run" loop, yet may want to service incoming requests while waiting for a result of CORBA call on a server. Returns: -1 on failure, 0 on success

char * TAO_ORB_Manager::activate_under_child_poa (  const char *    object_name, PortableServer::Servant servant    ACE_ENV_ARG_DECL_WITH_DEFAULTS )

Precondition: init_child_poa has been called. Activate <servant> using the POA <activate_object_with_id> created from the string <object_name>. Users should call this to activate objects under the child_poa. Parameters: object_name  String name which will be used to create an Object ID for the servant. servant  The servant to activate under the child POA. Returns: 0 on failure, a string representation of the object ID if successful. Caller of this method is responsible for memory deallocation of the string.

PortableServer::POA_ptr TAO_ORB_Manager::child_poa (  void    )

Accessor which returns the child poa. Following the normal CORBA memory management rules of return values from functions, this function duplicates the poa return value before returning it. Returns: Child POA pointer which has been duplicated. Caller must release pointer when done.

void TAO_ORB_Manager::deactivate (  const char *id    ACE_ENV_ARG_DECL_WITH_DEFAULTS )

Deactivate object in RootPOA. Parameters: id  a string representation of the Object ID of the servant to deactivate in the POA

void TAO_ORB_Manager::deactivate_under_child_poa (  const char *id    ACE_ENV_ARG_DECL_WITH_DEFAULTS )

Deactivate object in child POA. Parameters: id  string representation of the object ID, which represents the object to deactivate in the POA

int TAO_ORB_Manager::fini (  ACE_ENV_SINGLE_ARG_DECL    )

Shut down. Invoke the destroy() methods on the orb and poa. Returns: -1 on failure, 0 on success

int TAO_ORB_Manager::init (  int &    argc, char *    argv[], const char *orb_name    ACE_ENV_ARG_DECL_WITH_DEFAULTS )

Initialize the ORB/root POA, using the supplied command line arguments or the default ORB components. Returns: -1 on failure, 0 on success

int TAO_ORB_Manager::init (  int &    argc, char *argv    ACE_ENV_ARG_DECL_WITH_DEFAULTS[] )

Initialize the ORB/root POA, using the supplied command line arguments or the default ORB components. Returns: -1 on failure, 0 on success

int TAO_ORB_Manager::init_child_poa (  int &    argc, char *    argv[], const char *    poa_name, const char *orb_name    ACE_ENV_ARG_DECL_WITH_DEFAULTS )

Creates a child poa under the root poa with PERSISTENT and USER_ID policies. Call this if you want a <child_poa> with the above policies, otherwise call init. Returns -1 on failure.

int TAO_ORB_Manager::init_child_poa (  int &    argc, char *    argv[], const char *poa_name    ACE_ENV_ARG_DECL_WITH_DEFAULTS )

Creates a child poa under the root poa with PERSISTENT and USER_ID policies. Call this if you want a <child_poa> with the above policies, otherwise call init. Returns: -1 on failure, 0 on success

CORBA::ORB_ptr TAO_ORB_Manager::orb (  void    )

Accessor which returns the ORB pointer. Following the normal CORBA memory management rules of return values from functions, this function duplicates the orb return value before returning it. Returns: orb ORB pointer which has been duplicated, so caller must release pointer when done.

PortableServer::POAManager_ptr TAO_ORB_Manager::poa_manager (  void    )

Accessor which returns the poa manager. Following the normal CORBA memory management rules of return values from functions, this function duplicates the poa manager return value before returning it. Returns: POAManager pointer which has been duplicated. Caller must release pointer when done.

PortableServer::POA_ptr TAO_ORB_Manager::root_poa (  void    )

Accessor which returns the root poa. Following the normal CORBA memory management rules of return values from functions, this function duplicates the poa return value before returning it. Returns: poa Root POA pointer which has been duplicated. Caller must release pointer when done.

int TAO_ORB_Manager::run (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )

int TAO_ORB_Manager::run (  ACE_Time_Value &tv    ACE_ENV_ARG_DECL_WITH_DEFAULTS )

Run the ORB event loop with the specified <tv> time value. Parameters: tv  the time interval for how long to run the ORB event loop. Returns: -1 on failure, 0 on success

---

Member Data Documentation

PortableServer::POA_var TAO_ORB_Manager::child_poa_ [protected]

Child poa under the root POA.

CORBA::ORB_var TAO_ORB_Manager::orb_ [protected]

The ORB.

PortableServer::POA_var TAO_ORB_Manager::poa_ [protected]

The POA for this ORB.

PortableServer::POAManager_var TAO_ORB_Manager::poa_manager_ [protected]

The POA manager of poa_.

---

The documentation for this class was generated from the following files:

• ORB_Manager.h
• ORB_Manager.cpp

---
