ImR_Activator_i Class Reference

IMR Activator Interface. More...

#include <ImR_Activator_i.h>

Inheritance diagram for ImR_Activator_i:

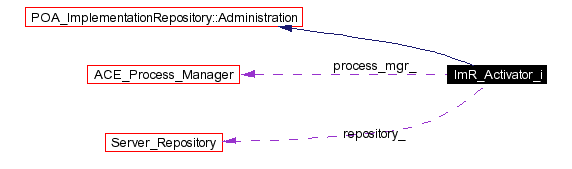

[legend]Collaboration diagram for ImR_Activator_i:

[legend]List of all members.

Public Methods
	ImR_Activator_i (void)
	~ImR_Activator_i (void)
char *	find_ior (const char *object_name ACE_ENV_ARG_DECL) throw (CORBA::SystemException, ImplementationRepository::NotFound)
	IOR_LookupTable_Callback method. Will return an IOR.
virtual void	activate_server (const char *server ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw ( CORBA::SystemException, ImplementationRepository::NotFound, ImplementationRepository::CannotActivate )
	Starts up the server <server> if not already running.
virtual void	register_server (const char *server, const ImplementationRepository::StartupOptions &options ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw ( CORBA::SystemException, ImplementationRepository::AlreadyRegistered, ImplementationRepository::NotFound )
virtual void	reregister_server (const char *server, const ImplementationRepository::StartupOptions &options ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, ImplementationRepository::AlreadyRegistered, ImplementationRepository::NotFound )
	Updates the startup information about the server <server>.
virtual void	remove_server (const char *server ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, ImplementationRepository::NotFound)
	Removes the server <server> from the repository.
virtual void	shutdown_server (const char *server ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, ImplementationRepository::NotFound)
	Attempts to gracefully shut down the server,.
virtual void	server_is_running (const char *server, const char *partial_ior, ImplementationRepository::ServerObject_ptr server_object ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, ImplementationRepository::NotFound)
virtual void	server_is_shutting_down (const char *server ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, ImplementationRepository::NotFound)
	What the server should call before it shuts down.
virtual void	find (const char *server, ImplementationRepository::ServerInformation_out info ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, ImplementationRepository::NotFound)
	Returns the startup information for a server.
virtual void	list (CORBA::ULong how_many, ImplementationRepository::ServerInformationList_out server_list, ImplementationRepository::ServerInformationIterator_out server_iterator ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual char *	activate_server_with_startup (const char *server, int check_startup ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw ( CORBA::SystemException, ImplementationRepository::NotFound, ImplementationRepository::CannotActivate )
int	init (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
	Initialize the Server state - parsing arguments and waiting.
int	fini (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
	Cleans up any state created by init ().
int	run (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
	Runs the orb.
Private Methods
char *	activate_server_i (const char *server, int check_startup ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw ( CORBA::SystemException, ImplementationRepository::NotFound, ImplementationRepository::CannotActivate )
void	start_server_i (const char *server ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw ( CORBA::SystemException, ImplementationRepository::NotFound, ImplementationRepository::CannotActivate )
	This method starts the server process.
int	ready_check (const char *server) throw (CORBA::SystemException, ImplementationRepository::NotFound)
Private Attributes
ACE_Process_Manager	process_mgr_
	The Process Manager.
Server_Repository	repository_
	Repository containing information about each server.
PortableServer::POA_var	root_poa_
	The Root POA for this ORB.
PortableServer::POA_var	imr_poa_
	Implementation Repository's POA.
CORBA::Long	registration_token_
ACE_CString	name_

---

Detailed Description

IMR Activator Interface.

This class provides the interface for the various activities that can be done by the ImR_Activator.

---

Constructor & Destructor Documentation

ImR_Activator_i::ImR_Activator_i (  void    )

ImR_Activator_i::~ImR_Activator_i (  void    )

---

Member Function Documentation

void ImR_Activator_i::activate_server (  const char *server    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw ( CORBA::SystemException, ImplementationRepository::NotFound, ImplementationRepository::CannotActivate ) [virtual]

Starts up the server <server> if not already running. Implements POA_ImplementationRepository::Administration.

char * ImR_Activator_i::activate_server_i (  const char *    server, int check_startup    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw ( CORBA::SystemException, ImplementationRepository::NotFound, ImplementationRepository::CannotActivate ) [private]

char * ImR_Activator_i::activate_server_with_startup (  const char *    server, int check_startup    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw ( CORBA::SystemException, ImplementationRepository::NotFound, ImplementationRepository::CannotActivate ) [virtual]

Implementation of activate_server. <check_startup> is a flag to check the activation mode before attempting to start it.

void ImR_Activator_i::find (  const char *    server, ImplementationRepository::ServerInformation_out info    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException, ImplementationRepository::NotFound) [virtual]

Returns the startup information for a server. Implements POA_ImplementationRepository::Administration.

char* ImR_Activator_i::find_ior (  const char *object_name    ACE_ENV_ARG_DECL )  throw (CORBA::SystemException, ImplementationRepository::NotFound) [virtual]

IOR_LookupTable_Callback method. Will return an IOR. Implements POA_ImplementationRepository::Administration.

int ImR_Activator_i::fini (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )

Cleans up any state created by init ().

int ImR_Activator_i::init (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )

Initialize the Server state - parsing arguments and waiting.

void ImR_Activator_i::list (  CORBA::ULong    how_many, ImplementationRepository::ServerInformationList_out    server_list, ImplementationRepository::ServerInformationIterator_out server_iterator    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException) [virtual]

Used to access the list of servers registered. May also return an iterator which can be used to access more than <how_many> of them. Implements POA_ImplementationRepository::Administration.

int ImR_Activator_i::ready_check (  const char *    server )  throw (CORBA::SystemException, ImplementationRepository::NotFound) [private]

This method will continuously ping a server and either return when it responds to the ping or return -1 if it times out.

void ImR_Activator_i::register_server (  const char *    server, const ImplementationRepository::StartupOptions &options    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw ( CORBA::SystemException, ImplementationRepository::AlreadyRegistered, ImplementationRepository::NotFound ) [virtual]

Adds the server to the repository and registers the startup information about the server <server>. Implements POA_ImplementationRepository::Administration.

void ImR_Activator_i::remove_server (  const char *server    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException, ImplementationRepository::NotFound) [virtual]

Removes the server <server> from the repository. Implements POA_ImplementationRepository::Administration.

void ImR_Activator_i::reregister_server (  const char *    server, const ImplementationRepository::StartupOptions &options    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException, ImplementationRepository::AlreadyRegistered, ImplementationRepository::NotFound ) [virtual]

Updates the startup information about the server <server>. Implements POA_ImplementationRepository::Administration.

int ImR_Activator_i::run (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )

Runs the orb.

void ImR_Activator_i::server_is_running (  const char *    server, const char *    partial_ior, ImplementationRepository::ServerObject_ptr server_object    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException, ImplementationRepository::NotFound) [virtual]

Called by the server to update transient information such as current location of the <server> and its ServerObject. Implements POA_ImplementationRepository::Administration.

void ImR_Activator_i::server_is_shutting_down (  const char *server    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException, ImplementationRepository::NotFound) [virtual]

What the server should call before it shuts down. Implements POA_ImplementationRepository::Administration.

void ImR_Activator_i::shutdown_server (  const char *server    ACE_ENV_ARG_DECL )  throw (CORBA::SystemException, ImplementationRepository::NotFound) [virtual]

Attempts to gracefully shut down the server,. Attempt to gracefully shut down the server, if that fails, will try to do it ungracefully. Implements POA_ImplementationRepository::Administration.

void ImR_Activator_i::start_server_i (  const char *server    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw ( CORBA::SystemException, ImplementationRepository::NotFound, ImplementationRepository::CannotActivate ) [private]

This method starts the server process.

---

Member Data Documentation

PortableServer::POA_var ImR_Activator_i::imr_poa_ [private]

Implementation Repository's POA.

ACE_CString ImR_Activator_i::name_ [private]

ACE_Process_Manager ImR_Activator_i::process_mgr_ [private]

The Process Manager.

CORBA::Long ImR_Activator_i::registration_token_ [private]

We're given a token when registering with the locator, which we must use when unregistering.

Server_Repository ImR_Activator_i::repository_ [private]

Repository containing information about each server.

PortableServer::POA_var ImR_Activator_i::root_poa_ [private]

The Root POA for this ORB.

---

The documentation for this class was generated from the following files:

• ImR_Activator_i.h
• ImR_Activator_i.cpp

---
