TAO_Sync_Strategy Class Reference

Define the interface for the Queueing Strategy. More...

#include <Sync_Strategies.h>

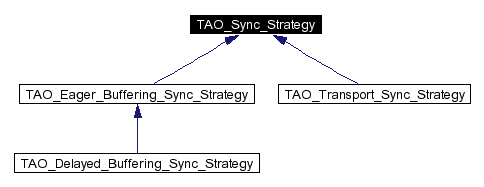

Inheritance diagram for TAO_Sync_Strategy:

Inheritance graph
List of all members.

Public Methods

virtual ~TAO_Sync_Strategy (void)

virtual int must_queue (int queue_empty)=0
 Return 1 if a message must be queued.

virtual int buffering_constraints_reached (TAO_Stub *stub, size_t msg_count, size_t total_bytes, int &must_flush, const ACE_Time_Value &current_deadline, int &set_timer, ACE_Time_Value &interval)=0
 Return 1 if it is time to start.

Detailed Description

Define the interface for the Queueing Strategy.

The low-level I/O components in the ORB use this strategy to determine when messages must be queued, immediately sent or flushed.

The strategy isolates this low-level components from the higher level strategies used by the application developer.

The class name (Sync_Strategy) is inherited from the policies (SyncScopePolicy), but Queueing_Strategy probably captures its intent better. It should be changed in a future revision of the ORB.

Constructor & Destructor Documentation

TAO_Sync_Strategy::~TAO_Sync_Strategy void    [virtual]


Member Function Documentation

virtual int TAO_Sync_Strategy::buffering_constraints_reached TAO_Stub   stub,
size_t    msg_count,
size_t    total_bytes,
int &    must_flush,
const ACE_Time_Value   current_deadline,
int &    set_timer,
ACE_Time_Value   interval
[pure virtual]

Return 1 if it is time to start.

stub  The object used to make the request, this is used to obtain the policies currently in effect for the request
msg_count  The number of messages currently queued
total_bytes  Number of bytes currently queued
set_timer  Returns 1 if a timer should be set to drain the queue
interval  If set_timer returns 1, this parameter contains the timer interval

Implemented in TAO_Transport_Sync_Strategy, and TAO_Eager_Buffering_Sync_Strategy.

virtual int TAO_Sync_Strategy::must_queue int    queue_empty [pure virtual]

Return 1 if a message must be queued.

Implemented in TAO_Transport_Sync_Strategy, TAO_Eager_Buffering_Sync_Strategy, and TAO_Delayed_Buffering_Sync_Strategy.

The documentation for this class was generated from the following files:
