TAO_Default_Server_Strategy_Factory Class Reference

This is the default strategy factory for CORBA servers. It allows developers to choose strategies via argument flags. This design gives substantial freedom for experimentation. More...

#include <default_server.h>

Inheritance diagram for TAO_Default_Server_Strategy_Factory:

Inheritance graph
[legend]

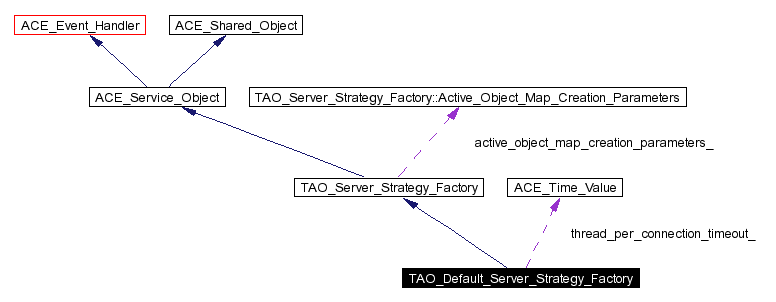

Collaboration diagram for TAO_Default_Server_Strategy_Factory:

Collaboration graph
[legend]
List of all members.

Public Methods

 TAO_Default_Server_Strategy_Factory (void)
virtual ~TAO_Default_Server_Strategy_Factory (void)
virtual int init (int argc, ACE_TCHAR *argv[])
virtual int open (TAO_ORB_Core *)
virtual int enable_poa_locking (void)
 Enable POA locking?

virtual int activate_server_connections (void)
 Are server connections active (i.e. run in their own thread).

virtual int thread_per_connection_timeout (ACE_Time_Value &timeout)
virtual int server_connection_thread_flags (void)
 The thread activation parameters.

virtual int server_connection_thread_count (void)
int parse_args (int argc, ACE_TCHAR *argv[])

Protected Types

enum  Lock_Type { TAO_NULL_LOCK, TAO_THREAD_LOCK }

Protected Methods

void tokenize (ACE_TCHAR *flag_string)
void report_option_value_error (const ACE_TCHAR *option_name, const ACE_TCHAR *option_value)

Protected Attributes

int activate_server_connections_
 Should the server connection handlers run in their own thread?

u_long thread_flags_
 Default thread flags passed to thr_create().

Lock_Type poa_lock_type_
 The type of lock to be returned by <create_poa_lock()>.

int thread_per_connection_use_timeout_
 The timeout flag and value for the thread-per-connection model.

ACE_Time_Value thread_per_connection_timeout_

Detailed Description

This is the default strategy factory for CORBA servers. It allows developers to choose strategies via argument flags. This design gives substantial freedom for experimentation.


Member Enumeration Documentation

enum TAO_Default_Server_Strategy_Factory::Lock_Type [protected]


Enumeration values:
TAO_NULL_LOCK
TAO_THREAD_LOCK


Constructor & Destructor Documentation

TAO_Default_Server_Strategy_Factory::TAO_Default_Server_Strategy_Factory void


TAO_Default_Server_Strategy_Factory::~TAO_Default_Server_Strategy_Factory void    [virtual]



Member Function Documentation

int TAO_Default_Server_Strategy_Factory::activate_server_connections void    [virtual]


Are server connections active (i.e. run in their own thread).

Reimplemented from TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::enable_poa_locking void    [virtual]


Enable POA locking?

Reimplemented from TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::init int    argc,
ACE_TCHAR   argv[]
[virtual]


Reimplemented from ACE_Shared_Object.

int TAO_Default_Server_Strategy_Factory::open TAO_ORB_Core   [virtual]


Call <open> on various strategies. This is not performed in <init> so that the other portions of the ORB have a chance to "settle" in their initialization since the streategies herein might need some of that information.

Reimplemented from TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::parse_args int    argc,
ACE_TCHAR   argv[]


Parse the arguments, check the documentation in $TAO_ROOT/docs/Options.html for details

void TAO_Default_Server_Strategy_Factory::report_option_value_error const ACE_TCHAR   option_name,
const ACE_TCHAR   option_value
[protected]


int TAO_Default_Server_Strategy_Factory::server_connection_thread_count void    [virtual]


Reimplemented from TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::server_connection_thread_flags void    [virtual]


The thread activation parameters.

Reimplemented from TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::thread_per_connection_timeout ACE_Time_Value   timeout [virtual]


Obtain the timeout value used by the thread-per-connection server threads to poll the shutdown flag in the ORB. Return -1 if the ORB should use the compile-time defaults. If the return value is zero then the threads block without timeouts.

Reimplemented from TAO_Server_Strategy_Factory.

void TAO_Default_Server_Strategy_Factory::tokenize ACE_TCHAR   flag_string [protected]



Member Data Documentation

int TAO_Default_Server_Strategy_Factory::activate_server_connections_ [protected]


Should the server connection handlers run in their own thread?

Lock_Type TAO_Default_Server_Strategy_Factory::poa_lock_type_ [protected]


The type of lock to be returned by <create_poa_lock()>.

u_long TAO_Default_Server_Strategy_Factory::thread_flags_ [protected]


Default thread flags passed to thr_create().

ACE_Time_Value TAO_Default_Server_Strategy_Factory::thread_per_connection_timeout_ [protected]


int TAO_Default_Server_Strategy_Factory::thread_per_connection_use_timeout_ [protected]


The timeout flag and value for the thread-per-connection model.


The documentation for this class was generated from the following files:
