TAO::Remote_Invocation Class Reference

Base class for remote invocations. More...

#include <Remote_Invocation.h>

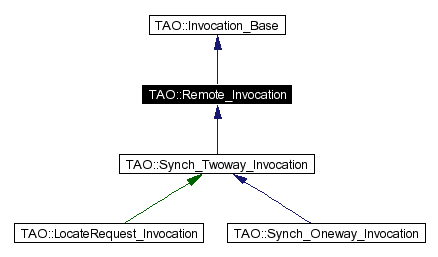

Inheritance diagram for TAO::Remote_Invocation:

Inheritance graph

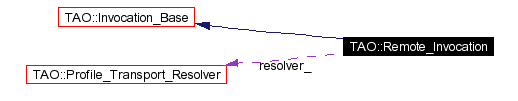

Collaboration diagram for TAO::Remote_Invocation:

Collaboration graph
List of all members.

Public Methods

 Remote_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail, bool response_expected)

Protected Methods

void init_target_spec (TAO_Target_Specification &spec ACE_ENV_ARG_DECL)
 Initialize the spec.

void write_header (TAO_Target_Specification &spec, TAO_OutputCDR &out_stream ACE_ENV_ARG_DECL)
 Write the GIOP header into the stream.

void marshal_data (TAO_OutputCDR &cdr ACE_ENV_ARG_DECL)
 Marshal the arguments into the stream.

Invocation_Status send_message (TAO_OutputCDR &cdr, short message_semantics, ACE_Time_Value *max_wait_time ACE_ENV_ARG_DECL)
 Write the message onto the socket.

Protected Attributes

 Our resolver.

Detailed Description

Base class for remote invocations.

This class encapulates some of the common functionalities used by synchronous, asynchronous, DII and DSI invocations.

Constructor & Destructor Documentation

TAO::Remote_Invocation::Remote_Invocation CORBA::Object_ptr    otarget,
Profile_Transport_Resolver   resolver,
TAO_Operation_Details   detail,
bool    response_expected

otarget, The  original target on which this invocation was started. This is there to be passed up to its parent class.
resolver, The  profile and transport holder.
op, operation  details of the invocation on the target
response_expected, flag  to indicate whether the operation encapsulated by op returns a response or not.

Member Function Documentation

void TAO::Remote_Invocation::init_target_spec TAO_Target_Specification &spec    ACE_ENV_ARG_DECL [protected]

Initialize the spec.

void TAO::Remote_Invocation::marshal_data TAO_OutputCDR &cdr    ACE_ENV_ARG_DECL [protected]

Marshal the arguments into the stream.

Invocation_Status TAO::Remote_Invocation::send_message TAO_OutputCDR   cdr,
short    message_semantics,
ACE_Time_Value *max_wait_time    ACE_ENV_ARG_DECL

Write the message onto the socket.

void TAO::Remote_Invocation::write_header TAO_Target_Specification   spec,
TAO_OutputCDR &out_stream    ACE_ENV_ARG_DECL

Write the GIOP header into the stream.

Mega hack for RTCORBA END

Member Data Documentation

Profile_Transport_Resolver& TAO::Remote_Invocation::resolver_ [protected]

Our resolver.

The documentation for this class was generated from the following files:
Generated on Fri Apr 2 17:46:42 2004 for TAO by doxygen1.2.18
