CIAO::Assembly_Impl Class Reference

Servant implementation for Components::Deployment::Assembly. More...

#include <Assembly_Impl.h>

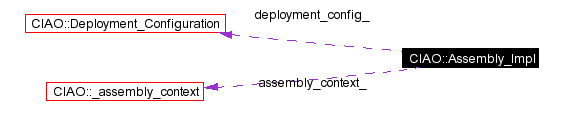

Collaboration diagram for CIAO::Assembly_Impl:

[legend]List of all members.

Public Methods
	Assembly_Impl (CORBA::ORB_ptr o, PortableServer::POA_ptr p, Assembly_Spec *spec, Deployment_Configuration &config)
	Constructor.
virtual	~Assembly_Impl (void)
	Destructor.
virtual PortableServer::POA_ptr	_default_POA (void)
int	init (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual void	build (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, Components::CreateFailure)
	Components::Deployment::Assembly defined attributes/operations.
virtual void	tear_down (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, Components::RemoveFailure)
virtual::Components::Deployment::AssemblyState	get_state (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
Protected Methods
void	make_connection (Assembly_Connection::Connect_Info *info ACE_ENV_ARG_DECL_WITH_DEFAULTS)
CORBA::Object_ptr	resolve_interface (Assembly_Connection::IF_Resolver_Info *info ACE_ENV_ARG_DECL_WITH_DEFAULTS)
Components::CCMObject_ptr	resolve_component (Assembly_Connection::IF_Resolver_Info *info ACE_ENV_ARG_DECL_WITH_DEFAULTS)
Components::CCMHome_ptr	resolve_home (Assembly_Connection::IF_Resolver_Info *info ACE_ENV_ARG_DECL_WITH_DEFAULTS)
Components::EventConsumerBase_ptr	resolve_consumer (Assembly_Connection::IF_Resolver_Info *info ACE_ENV_ARG_DECL_WITH_DEFAULTS)
Protected Attributes
CORBA::ORB_var	orb_
	Keep a pointer to the managing ORB serving this servant.
PortableServer::POA_var	poa_
	Keep a pointer to the managing POA.
::Components::Deployment::AssemblyState	state_
	Current State.
CORBA::ULong	serial_number_
	<Debug> My instance number.
Deployment_Configuration &	deployment_config_
	Deployment Configuration Info.
Assembly_Spec *	assembly_spec_
	Assembly Specification.
Assembly_Context	assembly_context_
Static Protected Attributes
CORBA::ULong	assembly_count_ = 0
	<Debug> instance counter.

---

Detailed Description

Servant implementation for Components::Deployment::Assembly.

This class implements the Components::Deployment::Assembly interface as defined by the CCM spcification. As the interface implies, this is actually part of the deployment interface and is used to manage the lifecycle of containers running on the server.

---

Constructor & Destructor Documentation

ACE_INLINE CIAO::Assembly_Impl::Assembly_Impl (  CORBA::ORB_ptr    o, PortableServer::POA_ptr    p, Assembly_Spec *    spec, Deployment_Configuration &    config )

Constructor.

CIAO::Assembly_Impl::~Assembly_Impl (  void    )  [virtual]

Destructor.

---

Member Function Documentation

PortableServer::POA_ptr CIAO::Assembly_Impl::_default_POA (  void    )  [virtual]

Get the containing POA. This operation does *not* increase the reference count of the POA.

void CIAO::Assembly_Impl::build (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )  throw (CORBA::SystemException, Components::CreateFailure) [virtual]

Components::Deployment::Assembly defined attributes/operations.

Components::Deployment::AssemblyState CIAO::Assembly_Impl::get_state (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )  throw (CORBA::SystemException)

int CIAO::Assembly_Impl::init (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )  throw (CORBA::SystemException)

Initialize the Assembly with an Assembly_Spec and a reference to a Deployment_Configuration object. The Assembly class assumes the ownership of Assembly_Spec.

void CIAO::Assembly_Impl::make_connection (  Assembly_Connection::Connect_Info *info    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  [protected]

Connection establishment helper functions

Components::CCMObject_ptr CIAO::Assembly_Impl::resolve_component (  Assembly_Connection::IF_Resolver_Info *info    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  [protected]

Connection establishment helper functions

Components::EventConsumerBase_ptr CIAO::Assembly_Impl::resolve_consumer (  Assembly_Connection::IF_Resolver_Info *info    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  [protected]

Connection establishment helper functions

Components::CCMHome_ptr CIAO::Assembly_Impl::resolve_home (  Assembly_Connection::IF_Resolver_Info *info    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  [protected]

Connection establishment helper functions

CORBA::Object_ptr CIAO::Assembly_Impl::resolve_interface (  Assembly_Connection::IF_Resolver_Info *info    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  [protected]

Connection establishment helper functions

void CIAO::Assembly_Impl::tear_down (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )  throw (CORBA::SystemException, Components::RemoveFailure) [virtual]

---

Member Data Documentation

Assembly_Context CIAO::Assembly_Impl::assembly_context_ [protected]

CORBA::ULong CIAO::Assembly_Impl::assembly_count_ = 0 [static, protected]

<Debug> instance counter.

Assembly_Spec* CIAO::Assembly_Impl::assembly_spec_ [protected]

Assembly Specification.

Deployment_Configuration& CIAO::Assembly_Impl::deployment_config_ [protected]

Deployment Configuration Info.

CORBA::ORB_var CIAO::Assembly_Impl::orb_ [protected]

Keep a pointer to the managing ORB serving this servant.

PortableServer::POA_var CIAO::Assembly_Impl::poa_ [protected]

Keep a pointer to the managing POA.

CORBA::ULong CIAO::Assembly_Impl::serial_number_ [protected]

<Debug> My instance number.

::Components::Deployment::AssemblyState CIAO::Assembly_Impl::state_ [protected]

Current State.

---

The documentation for this class was generated from the following files:

• Assembly_Impl.h
• Assembly_Impl.cpp
• Assembly_Impl.inl

---
