TAO_FlowConsumer Class Reference

#include <AVStreams_i.h>

Inheritance diagram for TAO_FlowConsumer:

Inheritance graph
[legend]

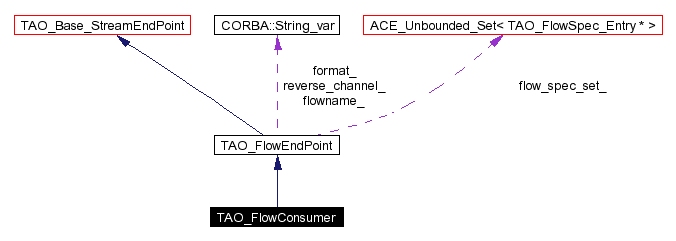

Collaboration diagram for TAO_FlowConsumer:

Collaboration graph
[legend]
List of all members.

Public Methods

 TAO_FlowConsumer (void)
 default constructor.

 TAO_FlowConsumer (const char *flowname, AVStreams::protocolSpec protocols, const char *format)
virtual void stop (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
 stop this flow, to be overridden by the application.

virtual void start (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
 start this flow, to be overridden by the application.

virtual char * go_to_listen (AVStreams::QoS &the_qos, CORBA::Boolean is_mcast, AVStreams::FlowEndPoint_ptr peer, char *&flowProtocol ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::failedToListen, AVStreams::FPError, AVStreams::QoSRequestFailed)
virtual CORBA::Boolean connect_to_peer (AVStreams::QoS &the_qos, const char *address, const char *use_flow_protocol ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::failedToConnect, AVStreams::FPError, AVStreams::QoSRequestFailed)

Constructor & Destructor Documentation

TAO_FlowConsumer::TAO_FlowConsumer (  void    )


default constructor.

TAO_FlowConsumer::TAO_FlowConsumer (  const char *    flowname,
AVStreams::protocolSpec    protocols,
const char *    format
)


Member Function Documentation

CORBA::Boolean TAO_FlowConsumer::connect_to_peer (  AVStreams::QoS &    the_qos,
const char *    address,
const char *use_flow_protocol    ACE_ENV_ARG_DECL_WITH_DEFAULTS
)  throw (CORBA::SystemException, AVStreams::failedToConnect, AVStreams::FPError, AVStreams::QoSRequestFailed) [virtual]


This should be implemented in both the FlowProducer and consumer and hence is pure virtual since we need to know the role of the flowendpoint to create appropriate protocol objects. eg. in SFP to create Producer Object/ Consumer Object.

Implements TAO_FlowEndPoint.

char * TAO_FlowConsumer::go_to_listen (  AVStreams::QoS &    the_qos,
CORBA::Boolean    is_mcast,
AVStreams::FlowEndPoint_ptr    peer,
char *&flowProtocol    ACE_ENV_ARG_DECL_WITH_DEFAULTS
)  throw (CORBA::SystemException, AVStreams::failedToListen, AVStreams::FPError, AVStreams::QoSRequestFailed) [virtual]


This should be implemented in both the FlowProducer and consumer and hence is pure virtual since we need to know the role of the flowendpoint to create appropriate protocol objects. eg. in SFP to create Producer Object/ Consumer Object.

Implements TAO_FlowEndPoint.

void TAO_FlowConsumer::start (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )  throw (CORBA::SystemException) [virtual]


start this flow, to be overridden by the application.

void TAO_FlowConsumer::stop (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )  throw (CORBA::SystemException) [virtual]


stop this flow, to be overridden by the application.

The documentation for this class was generated from the following files:
Generated on Fri Apr 2 19:02:59 2004 for TAO_AV by doxygen1.2.18
