ACE_WIN32_Asynch_Read_Dgram_Result Class Reference

This class provides concrete implementation for ACE_Asynch_Read_Dgram::Result class. More...

#include <WIN32_Asynch_IO.h>

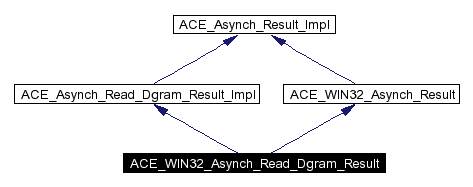

Inheritance diagram for ACE_WIN32_Asynch_Read_Dgram_Result:

Inheritance graph
[legend]

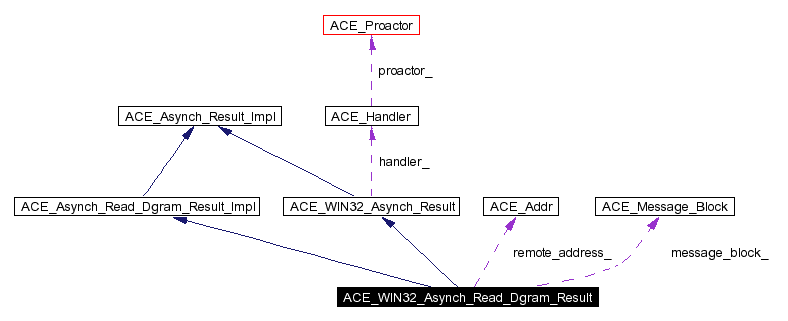

Collaboration diagram for ACE_WIN32_Asynch_Read_Dgram_Result:

Collaboration graph
[legend]
List of all members.

Public Methods

size_t bytes_to_read (void) const
ACE_Message_Blockmessage_block (void) const
 Message block which contains the read data.

int remote_address (ACE_Addr &addr) const
 The address of where the packet came from.

sockaddr * saddr () const
int flags (void) const
 The flags used in the read.

ACE_HANDLE handle (void) const
 I/O handle used for reading.

size_t bytes_transferred (void) const
 Number of bytes transferred by the operation.

const void * act (void) const
 ACT associated with the operation.

int success (void) const
 Did the operation succeed?

const void * completion_key (void) const
u_long error (void) const
 Error value if the operation fail.

ACE_HANDLE event (void) const
 Event associated with the OVERLAPPED structure.

u_long offset (void) const
 This really make sense only when doing file I/O.

u_long offset_high (void) const
 Offset_high associated with the OVERLAPPED structure.

int priority (void) const
int signal_number (void) const
 No-op. Returns 0.

int post_completion (ACE_Proactor_Impl *proactor)
 Post <this> to the Proactor's completion port.


Protected Methods

 ACE_WIN32_Asynch_Read_Dgram_Result (ACE_Handler &handler, ACE_HANDLE handle, ACE_Message_Block *message_block, size_t bytes_to_read, int flags, int protocol_family, const void *act, ACE_HANDLE event, int priority, int signal_number=0)
virtual void complete (size_t bytes_transferred, int success, const void *completion_key, u_long error)
 Proactor will call this method when the read completes.

virtual ~ACE_WIN32_Asynch_Read_Dgram_Result (void)
 Destructor.


Protected Attributes

size_t bytes_to_read_
 Bytes requested when the asynchronous read was initiated.

ACE_Message_Blockmessage_block_
 Message block for reading the data into.

ACE_Addrremote_address_
 The address of where the packet came from.

int addr_len_
int flags_
 The flags used in the read.

ACE_HANDLE handle_
 I/O handle used for reading.


Friends

class ACE_WIN32_Asynch_Read_Dgram
 Factory class will have special permissions.

class ACE_WIN32_Proactor
 Proactor class has special permission.


Detailed Description

This class provides concrete implementation for ACE_Asynch_Read_Dgram::Result class.


Constructor & Destructor Documentation

ACE_WIN32_Asynch_Read_Dgram_Result::ACE_WIN32_Asynch_Read_Dgram_Result ACE_Handler   handler,
ACE_HANDLE    handle,
ACE_Message_Block   message_block,
size_t    bytes_to_read,
int    flags,
int    protocol_family,
const void *    act,
ACE_HANDLE    event,
int    priority,
int    signal_number = 0
[protected]


Constructor is protected since creation is limited to ACE_Asynch_Read_Dgram factory.

ACE_WIN32_Asynch_Read_Dgram_Result::~ACE_WIN32_Asynch_Read_Dgram_Result void    [protected, virtual]


Destructor.


Member Function Documentation

const void * ACE_WIN32_Asynch_Read_Dgram_Result::act void    const [virtual]


ACT associated with the operation.

Reimplemented from ACE_WIN32_Asynch_Result.

size_t ACE_WIN32_Asynch_Read_Dgram_Result::bytes_to_read void    const [virtual]


The number of bytes which were requested at the start of the asynchronous read.

Implements ACE_Asynch_Read_Dgram_Result_Impl.

size_t ACE_WIN32_Asynch_Read_Dgram_Result::bytes_transferred void    const [virtual]


Number of bytes transferred by the operation.

Reimplemented from ACE_WIN32_Asynch_Result.

void ACE_WIN32_Asynch_Read_Dgram_Result::complete size_t    bytes_transferred,
int    success,
const void *    completion_key,
u_long    error
[protected, virtual]


Proactor will call this method when the read completes.

Implements ACE_Asynch_Result_Impl.

const void * ACE_WIN32_Asynch_Read_Dgram_Result::completion_key void    const [virtual]


This returns the ACT associated with the handle when it was registered with the I/O completion port. This ACT is not the same as the ACT associated with the asynchronous operation.

Reimplemented from ACE_WIN32_Asynch_Result.

u_long ACE_WIN32_Asynch_Read_Dgram_Result::error void    const [virtual]


Error value if the operation fail.

Reimplemented from ACE_WIN32_Asynch_Result.

ACE_HANDLE ACE_WIN32_Asynch_Read_Dgram_Result::event void    const [virtual]


Event associated with the OVERLAPPED structure.

Reimplemented from ACE_WIN32_Asynch_Result.

int ACE_WIN32_Asynch_Read_Dgram_Result::flags void    const [virtual]


The flags used in the read.

Implements ACE_Asynch_Read_Dgram_Result_Impl.

ACE_HANDLE ACE_WIN32_Asynch_Read_Dgram_Result::handle void    const [virtual]


I/O handle used for reading.

Implements ACE_Asynch_Read_Dgram_Result_Impl.

ACE_Message_Block * ACE_WIN32_Asynch_Read_Dgram_Result::message_block void    const [virtual]


Message block which contains the read data.

Implements ACE_Asynch_Read_Dgram_Result_Impl.

u_long ACE_WIN32_Asynch_Read_Dgram_Result::offset void    const [virtual]


This really make sense only when doing file I/O.

Reimplemented from ACE_WIN32_Asynch_Result.

u_long ACE_WIN32_Asynch_Read_Dgram_Result::offset_high void    const [virtual]


Offset_high associated with the OVERLAPPED structure.

Reimplemented from ACE_WIN32_Asynch_Result.

int ACE_WIN32_Asynch_Read_Dgram_Result::post_completion ACE_Proactor_Impl   proactor [virtual]


Post <this> to the Proactor's completion port.

Reimplemented from ACE_WIN32_Asynch_Result.

int ACE_WIN32_Asynch_Read_Dgram_Result::priority void    const [virtual]


The priority of the asynchronous operation. Currently, this is not supported on Win32.

Reimplemented from ACE_WIN32_Asynch_Result.

int ACE_WIN32_Asynch_Read_Dgram_Result::remote_address ACE_Addr   addr const [virtual]


The address of where the packet came from.

Implements ACE_Asynch_Read_Dgram_Result_Impl.

sockaddr * ACE_WIN32_Asynch_Read_Dgram_Result::saddr


int ACE_WIN32_Asynch_Read_Dgram_Result::signal_number void    const [virtual]


No-op. Returns 0.

Reimplemented from ACE_WIN32_Asynch_Result.

int ACE_WIN32_Asynch_Read_Dgram_Result::success void    const [virtual]


Did the operation succeed?

Reimplemented from ACE_WIN32_Asynch_Result.


Friends And Related Function Documentation

friend class ACE_WIN32_Asynch_Read_Dgram [friend]


Factory class will have special permissions.

friend class ACE_WIN32_Proactor [friend]


Proactor class has special permission.

Reimplemented from ACE_WIN32_Asynch_Result.


Member Data Documentation

int ACE_WIN32_Asynch_Read_Dgram_Result::addr_len_ [protected]


size_t ACE_WIN32_Asynch_Read_Dgram_Result::bytes_to_read_ [protected]


Bytes requested when the asynchronous read was initiated.

int ACE_WIN32_Asynch_Read_Dgram_Result::flags_ [protected]


The flags used in the read.

ACE_HANDLE ACE_WIN32_Asynch_Read_Dgram_Result::handle_ [protected]


I/O handle used for reading.

ACE_Message_Block* ACE_WIN32_Asynch_Read_Dgram_Result::message_block_ [protected]


Message block for reading the data into.

ACE_Addr* ACE_WIN32_Asynch_Read_Dgram_Result::remote_address_ [protected]


The address of where the packet came from.


The documentation for this class was generated from the following files:
