ACE_Token_Request Class Reference

Message format for delivering requests to the ACE_Token Server. More...

#include <Token_Request_Reply.h>

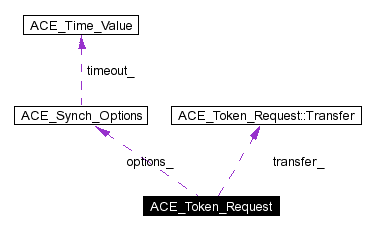

Collaboration diagram for ACE_Token_Request:

[legend]List of all members.

Public Types
enum	OPERATION {   ACQUIRE, RELEASE, RENEW, REMOVE,   TRY_ACQUIRE }
	Operation types. More...
Public Methods
	ACE_Token_Request (void)
	Default constructor.
	ACE_Token_Request (int token_type, int proxy_type, ACE_UINT32 operation, const ACE_TCHAR token_name[], const ACE_TCHAR client_id[], const ACE_Synch_Options &options)
ACE_UINT32	length (void) const
	Get the length of the encoded/decoded message.
void	length (ACE_UINT32)
	Set the length of the encoded/decoded message.
int	proxy_type (void) const
	Get the type of proxy.
void	proxy_type (int proxy_type)
	Set the type of proxy.
int	token_type (void) const
	Get the type of token.
void	token_type (int token_type)
	Set the type of token.
ACE_UINT32	operation_type (void) const
	Get the type of the operation.
void	operation_type (ACE_UINT32)
	Set the type of the operation.
ACE_UINT32	requeue_position (void) const
void	requeue_position (ACE_UINT32)
ACE_UINT32	notify (void) const
	Get notify. These should be used when acquire is the operation type.
void	notify (ACE_UINT32)
	Set notify. These should be used when acquire is the operation type.
ACE_Synch_Options &	options (void) const
void	options (const ACE_Synch_Options &options)
ACE_TCHAR *	token_name (void) const
ACE_TCHAR *	client_id (void) const
void	token_name (const ACE_TCHAR *token_name, const ACE_TCHAR *client_id)
int	encode (void *&)
	Encode the message before transmission.
int	decode (void)
void	dump (void) const
	Print out the values of the message for debugging purposes.
Private Attributes
ACE_Token_Request::Transfer	transfer_
ACE_TCHAR *	token_name_
	Pointer to the beginning of the token name in this->data_.
ACE_TCHAR *	client_id_
	Pointer to the beginning of the client id in this->data_;.
ACE_Synch_Options	options_
	Holds arg, sec, usec, etc.

---

Detailed Description

Message format for delivering requests to the ACE_Token Server.

This class is implemented to minimize data copying. In particular, all marshaling is done in situ...

---

Member Enumeration Documentation

enum ACE_Token_Request::OPERATION

Operation types. Enumeration values: ACQUIRE  Acquire the token. RELEASE  Release the token. RENEW  Renew the token. REMOVE  Remove the token. TRY_ACQUIRE

---

Constructor & Destructor Documentation

ACE_Token_Request::ACE_Token_Request (  void    )

Default constructor.

ACE_Token_Request::ACE_Token_Request (  int    token_type, int    proxy_type, ACE_UINT32    operation, const ACE_TCHAR    token_name[], const ACE_TCHAR    client_id[], const ACE_Synch_Options &    options )

token_type - MUTEX, RWLOCK proxy_type - MUTEX, RLOCK, WLOCK (acquires mean different things) operation - method token_name client_id options - we check USE_TIMEOUT and use the arg.

---

Member Function Documentation

ACE_TCHAR* ACE_Token_Request::client_id (  void    )  const

int ACE_Token_Request::decode (  void    )

Decode message after reception. This must be called to set the internal options.

void ACE_Token_Request::dump (  void    )  const

Print out the values of the message for debugging purposes.

int ACE_Token_Request::encode (  void *&    )

Encode the message before transmission.

void ACE_Token_Request::length (  ACE_UINT32    )

Set the length of the encoded/decoded message.

ACE_UINT32 ACE_Token_Request::length (  void    )  const

Get the length of the encoded/decoded message.

void ACE_Token_Request::notify (  ACE_UINT32    )

Set notify. These should be used when acquire is the operation type.

ACE_UINT32 ACE_Token_Request::notify (  void    )  const

Get notify. These should be used when acquire is the operation type.

void ACE_Token_Request::operation_type (  ACE_UINT32    )

Set the type of the operation.

ACE_UINT32 ACE_Token_Request::operation_type (  void    )  const

Get the type of the operation.

void ACE_Token_Request::options (  const ACE_Synch_Options &    options )

ACE_Synch_Options& ACE_Token_Request::options (  void    )  const

void ACE_Token_Request::proxy_type (  int    proxy_type )

Set the type of proxy.

int ACE_Token_Request::proxy_type (  void    )  const

Get the type of proxy.

void ACE_Token_Request::requeue_position (  ACE_UINT32    )

Set the requeue position. These should be used when renew is the operation type.

ACE_UINT32 ACE_Token_Request::requeue_position (  void    )  const

Get the requeue position. These should be used when renew is the operation type.

void ACE_Token_Request::token_name (  const ACE_TCHAR *    token_name, const ACE_TCHAR *    client_id )

ACE_TCHAR* ACE_Token_Request::token_name (  void    )  const

void ACE_Token_Request::token_type (  int    token_type )

Set the type of token.

int ACE_Token_Request::token_type (  void    )  const

Get the type of token.

---

Member Data Documentation

ACE_TCHAR* ACE_Token_Request::client_id_ [private]

Pointer to the beginning of the client id in this->data_;.

ACE_Synch_Options ACE_Token_Request::options_ [private]

Holds arg, sec, usec, etc.

ACE_TCHAR* ACE_Token_Request::token_name_ [private]

Pointer to the beginning of the token name in this->data_.

struct ACE_Token_Request::Transfer ACE_Token_Request::transfer_ [private]

---

The documentation for this class was generated from the following files:

• Token_Request_Reply.h
• Token_Request_Reply.cpp

---
