ACE_TSS_Singleton< TYPE, ACE_LOCK > Class Template Reference

This class uses the Adapter pattern to turn ordinary classes into Thread-specific Singletons optimized with the Double-Checked Locking optimization pattern. More...

#include <Singleton.h>

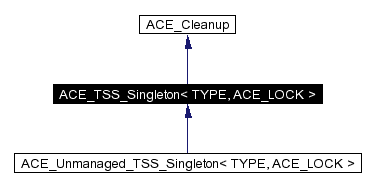

Inheritance diagram for ACE_TSS_Singleton< TYPE, ACE_LOCK >:

Inheritance graph
[legend]
Collaboration diagram for ACE_TSS_Singleton< TYPE, ACE_LOCK >:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual void cleanup (void *param=0)

Static Public Methods

TYPE * instance (void)
 Global access point to the singleton.

void dump (void)
 Dump the state of the object.


Protected Methods

 ACE_TSS_Singleton (void)
 Default constructor.

 ACE_TSS_TYPE (TYPE) instance_
 Contained instance.

void operator= (const ACE_TSS_Singleton< TYPE, ACE_LOCK > &)
 ACE_TSS_Singleton (const ACE_TSS_Singleton< TYPE, ACE_LOCK > &)

Static Protected Methods

ACE_TSS_Singleton< TYPE, ACE_LOCK > *& instance_i (void)
 Get pointer to the TSS Singleton instance.


Static Protected Attributes

ACE_TSS_Singleton< TYPE, ACE_LOCK > * singleton_ = 0
 Pointer to the Singleton (ACE_Cleanup) instance.


Detailed Description

template<class TYPE, class ACE_LOCK>
class ACE_TSS_Singleton< TYPE, ACE_LOCK >

This class uses the Adapter pattern to turn ordinary classes into Thread-specific Singletons optimized with the Double-Checked Locking optimization pattern.

This implementation is another variation on the GoF Singleton pattern. In this case, a single <ACE_TSS_Singleton<TYPE, LOCK> > instance is allocated here, not a <TYPE> instance. Each call to the <instance> static method returns a Singleton whose pointer resides in thread-specific storage. As with ACE_Singleton, we use the ACE_Object_Manager so that the Singleton can be cleaned up when the process exits. For this scheme to work, a (static) cleanup() function must be provided. ACE_Singleton provides one so that TYPE doesn't need to.


Constructor & Destructor Documentation

template<class TYPE, class ACE_LOCK>
ACE_INLINE ACE_TSS_Singleton< TYPE, ACE_LOCK >::ACE_TSS_Singleton void    [protected]


Default constructor.

template<class TYPE, class ACE_LOCK>
ACE_TSS_Singleton< TYPE, ACE_LOCK >::ACE_TSS_Singleton const ACE_TSS_Singleton< TYPE, ACE_LOCK > &    [protected]



Member Function Documentation

template<class TYPE, class ACE_LOCK>
ACE_TSS_Singleton< TYPE, ACE_LOCK >::ACE_TSS_TYPE TYPE    [protected]


Contained instance.

template<class TYPE, class ACE_LOCK>
void ACE_TSS_Singleton< TYPE, ACE_LOCK >::cleanup void *    param = 0 [virtual]


Cleanup method, used by <ace_cleanup_destroyer> to destroy the singleton.

Reimplemented from ACE_Cleanup.

template<class TYPE, class ACE_LOCK>
void ACE_TSS_Singleton< TYPE, ACE_LOCK >::dump void    [static]


Dump the state of the object.

Reimplemented in ACE_Unmanaged_TSS_Singleton< TYPE, ACE_LOCK >.

template<class TYPE, class ACE_LOCK>
TYPE * ACE_TSS_Singleton< TYPE, ACE_LOCK >::instance void    [static]


Global access point to the singleton.

Reimplemented in ACE_Unmanaged_TSS_Singleton< TYPE, ACE_LOCK >.

template<class TYPE, class ACE_LOCK>
ACE_TSS_Singleton< TYPE, ACE_LOCK > *& ACE_TSS_Singleton< TYPE, ACE_LOCK >::instance_i void    [static, protected]


Get pointer to the TSS Singleton instance.

Reimplemented in ACE_Unmanaged_TSS_Singleton< TYPE, ACE_LOCK >.

template<class TYPE, class ACE_LOCK>
void ACE_TSS_Singleton< TYPE, ACE_LOCK >::operator= const ACE_TSS_Singleton< TYPE, ACE_LOCK > &    [protected]



Member Data Documentation

template<class TYPE, class ACE_LOCK>
ACE_TSS_Singleton< TYPE, ACE_LOCK > * ACE_TSS_Singleton< TYPE, ACE_LOCK >::singleton_ = 0 [static, protected]


Pointer to the Singleton (ACE_Cleanup) instance.

Reimplemented in ACE_Unmanaged_TSS_Singleton< TYPE, ACE_LOCK >.


The documentation for this class was generated from the following files:
