ACE_QoS_Params Class Reference

Wrapper class that simplifies the information passed to the QoS enabled <ACE_OS::connect> and <ACE_OS::join_leaf> methods. More...

#include <OS_QoS.h>

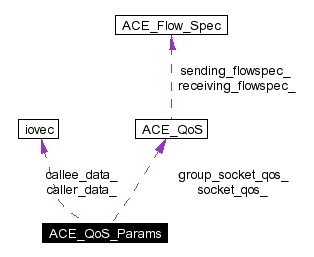

Collaboration diagram for ACE_QoS_Params:

[legend]List of all members.

Public Methods
	ACE_QoS_Params (iovec *caller_data=0, iovec *callee_data=0, ACE_QoS *socket_qos=0, ACE_QoS *group_socket_qos=0, unsigned long flags=0)
iovec *	caller_data (void) const
	Get caller data.
void	caller_data (iovec *)
	Set caller data.
iovec *	callee_data (void) const
	Get callee data.
void	callee_data (iovec *)
	Set callee data.
ACE_QoS *	socket_qos (void) const
	Get socket qos.
void	socket_qos (ACE_QoS *)
	Set socket qos.
ACE_QoS *	group_socket_qos (void) const
	Get group socket qos.
void	group_socket_qos (ACE_QoS *)
	Set group socket qos.
unsigned long	flags (void) const
	Get flags.
void	flags (unsigned long)
	Set flags.
Private Attributes
iovec *	caller_data_
iovec *	callee_data_
ACE_QoS *	socket_qos_
ACE_QoS *	group_socket_qos_
unsigned long	flags_
	Flags that indicate if we're a sender, receiver, or both.

---

Detailed Description

Wrapper class that simplifies the information passed to the QoS enabled <ACE_OS::connect> and <ACE_OS::join_leaf> methods.

---

Constructor & Destructor Documentation

ACE_QoS_Params::ACE_QoS_Params (  iovec *    caller_data = 0, iovec *    callee_data = 0, ACE_QoS *    socket_qos = 0, ACE_QoS *    group_socket_qos = 0, unsigned long    flags = 0 )

Initialize the data members. The <caller_data> is a pointer to the user data that is to be transferred to the peer during connection establishment. The <callee_data> is a pointer to the user data that is to be transferred back from the peer during connection establishment. The_<socket_qos> is a pointer to the flow specifications for the socket, one for each direction. The <group_socket_qos> is a pointer to the flow speicfications for the socket group, if applicable. The_<flags> indicate if we're a sender, receiver, or both.

---

Member Function Documentation

void ACE_QoS_Params::callee_data (  iovec *    )

Set callee data.

iovec * ACE_QoS_Params::callee_data (  void    )  const

Get callee data.

void ACE_QoS_Params::caller_data (  iovec *    )

Set caller data.

iovec * ACE_QoS_Params::caller_data (  void    )  const

Get caller data.

void ACE_QoS_Params::flags (  unsigned    long )

Set flags.

unsigned long ACE_QoS_Params::flags (  void    )  const

Get flags.

void ACE_QoS_Params::group_socket_qos (  ACE_QoS *    )

Set group socket qos.

ACE_QoS * ACE_QoS_Params::group_socket_qos (  void    )  const

Get group socket qos.

void ACE_QoS_Params::socket_qos (  ACE_QoS *    )

Set socket qos.

ACE_QoS * ACE_QoS_Params::socket_qos (  void    )  const

Get socket qos.

---

Member Data Documentation

iovec* ACE_QoS_Params::callee_data_ [private]

A pointer to the user data that is to be transferred back from the peer during connection establishment.

iovec* ACE_QoS_Params::caller_data_ [private]

A pointer to the user data that is to be transferred to the peer during connection establishment.

unsigned long ACE_QoS_Params::flags_ [private]

Flags that indicate if we're a sender, receiver, or both.

ACE_QoS* ACE_QoS_Params::group_socket_qos_ [private]

A pointer to the flow speicfications for the socket group, if applicable.

ACE_QoS* ACE_QoS_Params::socket_qos_ [private]

A pointer to the flow speicfications for the socket, one for each direction.

---

The documentation for this class was generated from the following files:

• OS_QoS.h
• OS_QoS.cpp

---
