ACE_POSIX_Asynch_Timer Class Reference

This class is posted to the completion port when a timer expires. When the <complete method> of this object is called, the <handler>'s <handle_timeout> method will be called. More...

#include <POSIX_Proactor.h>

Inheritance diagram for ACE_POSIX_Asynch_Timer:

Inheritance graph
[legend]

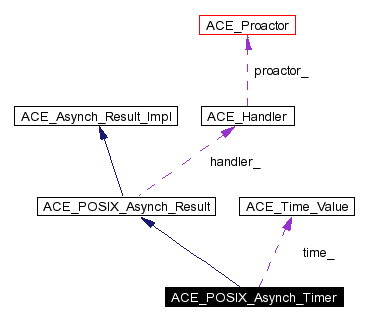

Collaboration diagram for ACE_POSIX_Asynch_Timer:

Collaboration graph
[legend]
List of all members.

Protected Methods

 ACE_POSIX_Asynch_Timer (ACE_Handler &handler, const void *act, const ACE_Time_Value &tv, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
 Constructor.

virtual ~ACE_POSIX_Asynch_Timer (void)
 Destructor.

virtual void complete (size_t bytes_transferred, int success, const void *completion_key, u_long error=0)
 This method calls the <handler>'s handle_timeout method.


Protected Attributes

ACE_Time_Value time_
 Time value requested by caller.


Friends

class ACE_POSIX_Proactor

Detailed Description

This class is posted to the completion port when a timer expires. When the <complete method> of this object is called, the <handler>'s <handle_timeout> method will be called.


Constructor & Destructor Documentation

ACE_POSIX_Asynch_Timer::ACE_POSIX_Asynch_Timer ACE_Handler   handler,
const void *    act,
const ACE_Time_Value   tv,
ACE_HANDLE    event = ACE_INVALID_HANDLE,
int    priority = 0,
int    signal_number = ACE_SIGRTMIN
[protected]


Constructor.

virtual ACE_POSIX_Asynch_Timer::~ACE_POSIX_Asynch_Timer void    [inline, protected, virtual]


Destructor.


Member Function Documentation

void ACE_POSIX_Asynch_Timer::complete size_t    bytes_transferred,
int    success,
const void *    completion_key,
u_long    error = 0
[protected, virtual]


This method calls the <handler>'s handle_timeout method.

Implements ACE_Asynch_Result_Impl.


Friends And Related Function Documentation

friend class ACE_POSIX_Proactor [friend]


The factory method for this class is with the POSIX_Proactor class.


Member Data Documentation

ACE_Time_Value ACE_POSIX_Asynch_Timer::time_ [protected]


Time value requested by caller.


The documentation for this class was generated from the following files:
Generated on Fri Apr 2 16:51:44 2004 for ACE by doxygen1.2.18
