ACE_Message_Queue_Base Class Reference

Base class for <ACE_Message_Queue>, which is the central queueing facility for messages in the ACE framework. More...

#include <Message_Queue.h>

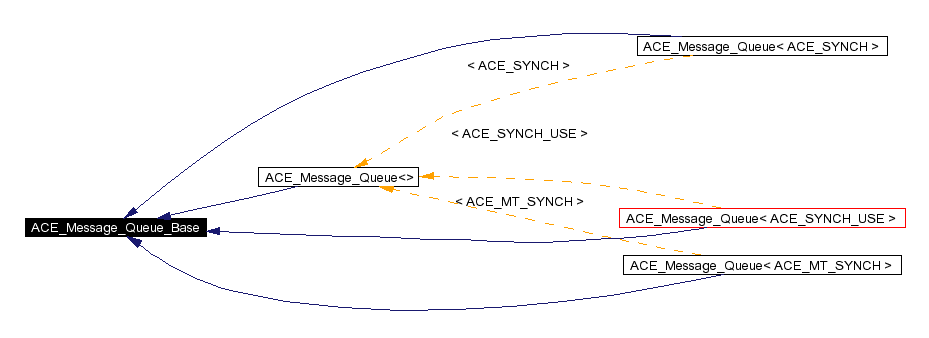

Inheritance diagram for ACE_Message_Queue_Base:

[legend]List of all members.


Public Types
enum	{ DEFAULT_HWM = 16 * 1024, DEFAULT_LWM = 16 * 1024, WAS_ACTIVE = 1, ACTIVATED = 1, WAS_INACTIVE = 2, DEACTIVATED = 2, PULSED = 3 }
Public Methods
	ACE_Message_Queue_Base (void)
virtual int	close (void)=0
	Close down the message queue and release all resources.
virtual	~ACE_Message_Queue_Base (void)
	Close down the message queue and release all resources.
virtual int	peek_dequeue_head (ACE_Message_Block &first_item, ACE_Time_Value timeout=0)=0
virtual int	enqueue_tail (ACE_Message_Block new_item, ACE_Time_Value timeout=0)=0
virtual int	enqueue (ACE_Message_Block new_item, ACE_Time_Value timeout=0)=0
virtual int	dequeue_head (ACE_Message_Block &first_item, ACE_Time_Value timeout=0)=0
virtual int	dequeue (ACE_Message_Block &first_item, ACE_Time_Value timeout=0)=0
virtual int	is_full (void)=0
	True if queue is full, else false.
virtual int	is_empty (void)=0
	True if queue is empty, else false.
virtual size_t	message_bytes (void)=0
virtual size_t	message_length (void)=0
virtual int	message_count (void)=0
	Number of total messages on the queue.
virtual void	message_bytes (size_t new_size)=0
virtual void	message_length (size_t new_length)=0
virtual int	deactivate (void)=0
virtual int	activate (void)=0
virtual int	pulse (void)=0
virtual int	state (void)
	Returns the current state of the queue.
virtual int	deactivated (void)=0
virtual ACE_Notification_Strategy *	notification_strategy (void)=0
	Get the notification strategy for the <Message_Queue>.
virtual void	notification_strategy (ACE_Notification_Strategy *s)=0
	Set the notification strategy for the <Message_Queue>.
virtual void	dump (void) const=0
	Dump the state of an object.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Attributes
int	state_
Private Methods
void	operator= (const ACE_Message_Queue_Base &)
	ACE_Message_Queue_Base (const ACE_Message_Queue_Base &)

Detailed Description

Base class for <ACE_Message_Queue>, which is the central queueing facility for messages in the ACE framework.

For all the <ACE_Time_Value> pointer parameters the caller will block until action is possible if <timeout> == 0. Otherwise, it will wait until the absolute time specified in *<timeout> elapses.

A queue is always in one of three states: . ACTIVATED . DEACTIVATED . PULSED

Member Enumeration Documentation

anonymous enum

Enumeration values:

DEFAULT_HWM Default high watermark (16 K).

DEFAULT_LWM Default low watermark (same as high water mark).

WAS_ACTIVE
Deprecated:
Use ACTIVATED instead.

ACTIVATED Message queue is active and processing normally.

WAS_INACTIVE
Deprecated:
Use DEACTIVATED instead.

DEACTIVATED Queue is deactivated; no enqueue or dequeue operations allowed.

PULSED Message queue was pulsed; enqueue and dequeue may proceed normally.

Constructor & Destructor Documentation

ACE_INLINE ACE_Message_Queue_Base::ACE_Message_Queue_Base ( void )

ACE_INLINE ACE_Message_Queue_Base::~ACE_Message_Queue_Base ( void ) [virtual]

Close down the message queue and release all resources.

ACE_Message_Queue_Base::ACE_Message_Queue_Base ( const ACE_Message_Queue_Base & ) [private]

Member Function Documentation

virtual int ACE_Message_Queue_Base::activate ( void ) [pure virtual]

Reactivate the queue so that threads can enqueue and dequeue messages again.
Return values:

The queue's state before this call.

Implemented in ACE_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual int ACE_Message_Queue_Base::close ( void ) [pure virtual]

Close down the message queue and release all resources.

Implemented in ACE_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual int ACE_Message_Queue_Base::deactivate ( void ) [pure virtual]

Deactivate the queue and wake up all threads waiting on the queue so they can continue. No messages are removed from the queue, however. Any other operations called until the queue is activated again will immediately return -1 with errno ESHUTDOWN.
Return values:

The queue's state before this call.

Implemented in ACE_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual int ACE_Message_Queue_Base::deactivated ( void ) [pure virtual]

Returns 1 if the state of the queue is DEACTIVATED, and 0 if the queue's state is ACTIVATED or PULSED.
Implemented in ACE_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual int ACE_Message_Queue_Base::dequeue ( ACE_Message_Block *& first_item,

ACE_Time_Value * timeout = 0

) [pure virtual]

Implemented in ACE_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual int ACE_Message_Queue_Base::dequeue_head ( ACE_Message_Block *& first_item,

ACE_Time_Value * timeout = 0

) [pure virtual]

Dequeue and return the <ACE_Message_Block *> at the head of the queue. Returns number of items in queue if the call succeeds or -1 otherwise. These calls return -1 when queue is closed, deactivated (in which case <errno> == <ESHUTDOWN>), when a signal occurs (in which case <errno> == <EINTR>, or if the time specified in timeout elapses (in which case <errno> == <EWOULDBLOCK>).
Implemented in ACE_Message_Queue<>, ACE_Dynamic_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual void ACE_Message_Queue_Base::dump ( void ) const [pure virtual]

Dump the state of an object.

Implemented in ACE_Message_Queue<>, ACE_Dynamic_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual int ACE_Message_Queue_Base::enqueue ( ACE_Message_Block * new_item,

ACE_Time_Value * timeout = 0

) [pure virtual]

Implemented in ACE_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual int ACE_Message_Queue_Base::enqueue_tail ( ACE_Message_Block * new_item,

ACE_Time_Value * timeout = 0

) [pure virtual]

Enqueue a <ACE_Message_Block *> into the tail of the queue. Returns number of items in queue if the call succeeds or -1 otherwise. These calls return -1 when queue is closed, deactivated (in which case <errno> == <ESHUTDOWN>), when a signal occurs (in which case <errno> == <EINTR>, or if the time specified in timeout elapses (in which case <errno> == <EWOULDBLOCK>).
Implemented in ACE_Message_Queue<>, ACE_Dynamic_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual int ACE_Message_Queue_Base::is_empty ( void ) [pure virtual]

True if queue is empty, else false.

Implemented in ACE_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual int ACE_Message_Queue_Base::is_full ( void ) [pure virtual]

True if queue is full, else false.

Implemented in ACE_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual void ACE_Message_Queue_Base::message_bytes ( size_t new_size ) [pure virtual]

New value of the number of total bytes on the queue, i.e., sum of the message block sizes.
Implemented in ACE_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual size_t ACE_Message_Queue_Base::message_bytes ( void ) [pure virtual]

Number of total bytes on the queue, i.e., sum of the message block sizes.
Implemented in ACE_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual int ACE_Message_Queue_Base::message_count ( void ) [pure virtual]

Number of total messages on the queue.

Implemented in ACE_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual void ACE_Message_Queue_Base::message_length ( size_t new_length ) [pure virtual]

New value of the number of total length on the queue, i.e., sum of the message block lengths.
Implemented in ACE_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual size_t ACE_Message_Queue_Base::message_length ( void ) [pure virtual]

Number of total length on the queue, i.e., sum of the message block lengths.
Implemented in ACE_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual void ACE_Message_Queue_Base::notification_strategy ( ACE_Notification_Strategy * s ) [pure virtual]

Set the notification strategy for the <Message_Queue>.

Implemented in ACE_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual ACE_Notification_Strategy* ACE_Message_Queue_Base::notification_strategy ( void ) [pure virtual]

Get the notification strategy for the <Message_Queue>.

Implemented in ACE_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

void ACE_Message_Queue_Base::operator= ( const ACE_Message_Queue_Base & ) [private]

virtual int ACE_Message_Queue_Base::peek_dequeue_head ( ACE_Message_Block *& first_item,

ACE_Time_Value * timeout = 0

) [pure virtual]

Retrieve the first <ACE_Message_Block> without removing it. Note that <timeout> uses <{absolute}> time rather than <{relative}> time. If the <timeout> elapses without receiving a message -1 is returned and <errno> is set to <EWOULDBLOCK>. If the queue is deactivated -1 is returned and <errno> is set to <ESHUTDOWN>. Otherwise, returns -1 on failure, else the number of items still on the queue.
Implemented in ACE_Message_Queue<>, ACE_Dynamic_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

virtual int ACE_Message_Queue_Base::pulse ( void ) [pure virtual]

Pulse the queue to wake up any waiting threads. Changes the queue state to PULSED; future enqueue/dequeue operations proceed as in ACTIVATED state.
Return values:

The queue's state before this call.

Implemented in ACE_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

ACE_INLINE int ACE_Message_Queue_Base::state ( void ) [virtual]

Returns the current state of the queue.

Reimplemented in ACE_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

Member Data Documentation

ACE_Message_Queue_Base::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented in ACE_Message_Queue<>, ACE_Dynamic_Message_Queue<>, ACE_Message_Queue< ACE_SYNCH >, ACE_Message_Queue< ACE_SYNCH_USE >, and ACE_Message_Queue< ACE_MT_SYNCH >.

int ACE_Message_Queue_Base::state_ [protected]

Indicates the state of the queue, which can be <ACTIVATED>, <DEACTIVATED>, or <PULSED>.

The documentation for this class was generated from the following files:
