ACE_MEM_SAP Class Reference

Defines the methods of shared memory management for shared memory transport. More...

#include <MEM_SAP.h>

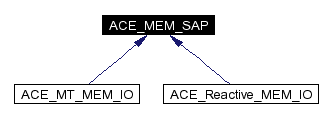

Inheritance diagram for ACE_MEM_SAP:

[legend]Collaboration diagram for ACE_MEM_SAP:

[legend]List of all members.

Public Types
typedef ACE_Malloc_T< ACE_MMAP_MEMORY_POOL, ACE_Process_Mutex, ACE_PI_Control_Block >	MALLOC_TYPE
typedef ACE_MMAP_Memory_Pool_Options	MALLOC_OPTIONS
Public Methods
virtual	~ACE_MEM_SAP (void)
	Destructor.
virtual int	init (ACE_HANDLE handle, const ACE_TCHAR *name, MALLOC_OPTIONS *options)=0
virtual int	fini ()
virtual ssize_t	recv_buf (ACE_MEM_SAP_Node *&buf, int flags, const ACE_Time_Value *timeout)=0
virtual ssize_t	send_buf (ACE_MEM_SAP_Node *buf, int flags, const ACE_Time_Value *timeout)=0
ACE_MEM_SAP_Node *	acquire_buffer (const ssize_t size)
int	release_buffer (ACE_MEM_SAP_Node *buf)
void	dump (void) const
	Dump the state of an object.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Methods
int	create_shm_malloc (const ACE_TCHAR *name, MALLOC_OPTIONS *options)
int	close_shm_malloc (void)
	ACE_MEM_SAP (void)
	Constructor. Prevent this class from being instantiated.
Protected Attributes
ACE_HANDLE	handle_
MALLOC_TYPE *	shm_malloc_
	Data exchange channel.

---

Detailed Description

Defines the methods of shared memory management for shared memory transport.

---

Member Typedef Documentation

typedef ACE_MMAP_Memory_Pool_Options ACE_MEM_SAP::MALLOC_OPTIONS

typedef ACE_Malloc_T<ACE_MMAP_MEMORY_POOL, ACE_Process_Mutex, ACE_PI_Control_Block> ACE_MEM_SAP::MALLOC_TYPE

---

Constructor & Destructor Documentation

ASYS_INLINE ACE_MEM_SAP::~ACE_MEM_SAP (  void    )  [virtual]

Destructor.

ACE_MEM_SAP::ACE_MEM_SAP (  void    )  [protected]

Constructor. Prevent this class from being instantiated.

---

Member Function Documentation

ASYS_INLINE ACE_MEM_SAP_Node * ACE_MEM_SAP::acquire_buffer (  const ssize_t    size )

request a buffer of size <size>. Return 0 if the <shm_malloc_> is not initialized.

int ACE_MEM_SAP::close_shm_malloc (  void    )  [protected]

Close down the share memory pool. Clean up the mmap file if we are the last one using it.

int ACE_MEM_SAP::create_shm_malloc (  const ACE_TCHAR *    name, MALLOC_OPTIONS *    options )  [protected]

Create a new shm_malloc object. Return 0 if succeed and -1 otherwise. This method should only be called from an acceptor class that wants to create a new memory pool for inter process communication.

void ACE_MEM_SAP::dump (  void    )  const

Dump the state of an object.

int ACE_MEM_SAP::fini (    )  [virtual]

Finalizing the MEM_SAP object. This method doesn't invoke the <remove> method.

virtual int ACE_MEM_SAP::init (  ACE_HANDLE    handle, const ACE_TCHAR *    name, MALLOC_OPTIONS *    options )  [pure virtual]

Initialize the MEM_SAP object. Implemented in ACE_Reactive_MEM_IO, and ACE_MT_MEM_IO.

virtual ssize_t ACE_MEM_SAP::recv_buf (  ACE_MEM_SAP_Node *&    buf, int    flags, const ACE_Time_Value *    timeout )  [pure virtual]

Fetch location of next available data into <recv_buffer_>. As this operation read the address of the data off the socket using ACE::recv, <timeout> only applies to ACE::recv. Implemented in ACE_Reactive_MEM_IO, and ACE_MT_MEM_IO.

ASYS_INLINE int ACE_MEM_SAP::release_buffer (  ACE_MEM_SAP_Node *    buf )

release a buffer pointed by <buf>. Return -1 if the <shm_malloc_> is not initialized.

virtual ssize_t ACE_MEM_SAP::send_buf (  ACE_MEM_SAP_Node *    buf, int    flags, const ACE_Time_Value *    timeout )  [pure virtual]

Wait to to <timeout> amount of time to send <buf>. If <send> times out a -1 is returned with <errno == ETIME>. If it succeeds the number of bytes sent is returned. Implemented in ACE_Reactive_MEM_IO, and ACE_MT_MEM_IO.

---

Member Data Documentation

ACE_MEM_SAP::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

ACE_HANDLE ACE_MEM_SAP::handle_ [protected]

MALLOC_TYPE* ACE_MEM_SAP::shm_malloc_ [protected]

Data exchange channel.

---

The documentation for this class was generated from the following files:

• MEM_SAP.h
• MEM_SAP.cpp
• MEM_SAP.i

---
