ACE_Future_Set< T > Class Template Reference

This class implements a mechanism which allows the values of a collection of ACE_Future objects to be accessed by reader threads as they become available. The caller(s) provide the ACE_Future_Set (i.e. the observer...) with the collection of ACE_Future objects (i.e. the subjects...) that are to be observed using the the ACE_Future_Set::insert() method. The caller(s) may then iterate over the collection in the order in which they become readable using the ACE_Future_Set::next_readable() method. More...

#include <Future_Set.h>

Inheritance diagram for ACE_Future_Set< T >:

Inheritance graph
[legend]

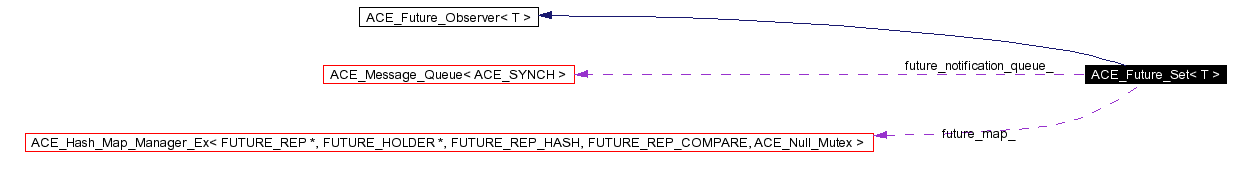

Collaboration diagram for ACE_Future_Set< T >:

Collaboration graph
[legend]
List of all members.

Public Methods

 ACE_Future_Set (ACE_Message_Queue< ACE_SYNCH > *future_notification_queue_=0)
 Constructor.

 ~ACE_Future_Set (void)
 Destructor.

int is_empty (void) const
int insert (ACE_Future< T > &future)
int next_readable (ACE_Future< T > &result, ACE_Time_Value *tv=0)
virtual void update (const ACE_Future< T > &future)

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.


Private Types

typedef ACE_Future< T > FUTURE
typedef ACE_Future_Rep< T > FUTURE_REP
typedef ACE_Future_Holder< T > FUTURE_HOLDER
typedef ACE_Pointer_Hash<
FUTURE_REP * >
FUTURE_REP_HASH
typedef ACE_Equal_To< FUTURE_REP * > FUTURE_REP_COMPARE
typedef ACE_Hash_Map_Manager_Ex<
FUTURE_REP *, FUTURE_HOLDER *,
FUTURE_REP_HASH, FUTURE_REP_COMPARE,
ACE_Null_Mutex
FUTURE_HASH_MAP

Private Methods

void operator= (const ACE_Future_Set< T > &)
 ACE_Future_Set (const ACE_Future_Set< T > &)

Private Attributes

FUTURE_HASH_MAP future_map_
ACE_Message_Queue< ACE_SYNCH > * future_notification_queue_
int delete_queue_
 Keeps track of whether we need to delete the message queue.


Detailed Description

template<class T>
class ACE_Future_Set< T >

This class implements a mechanism which allows the values of a collection of ACE_Future objects to be accessed by reader threads as they become available. The caller(s) provide the ACE_Future_Set (i.e. the observer...) with the collection of ACE_Future objects (i.e. the subjects...) that are to be observed using the the ACE_Future_Set::insert() method. The caller(s) may then iterate over the collection in the order in which they become readable using the ACE_Future_Set::next_readable() method.


Member Typedef Documentation

template<class T>
typedef ACE_Future<T> ACE_Future_Set< T >::FUTURE [private]


template<class T>
typedef ACE_Hash_Map_Manager_Ex<FUTURE_REP *, FUTURE_HOLDER *, FUTURE_REP_HASH, FUTURE_REP_COMPARE, ACE_Null_Mutex> ACE_Future_Set< T >::FUTURE_HASH_MAP [private]


template<class T>
typedef ACE_Future_Holder<T> ACE_Future_Set< T >::FUTURE_HOLDER [private]


template<class T>
typedef ACE_Future_Rep<T> ACE_Future_Set< T >::FUTURE_REP [private]


template<class T>
typedef ACE_Equal_To<FUTURE_REP *> ACE_Future_Set< T >::FUTURE_REP_COMPARE [private]


template<class T>
typedef ACE_Pointer_Hash<FUTURE_REP *> ACE_Future_Set< T >::FUTURE_REP_HASH [private]



Constructor & Destructor Documentation

template<class T>
ACE_Future_Set< T >::ACE_Future_Set ACE_Message_Queue< ACE_SYNCH > *    future_notification_queue_ = 0


Constructor.

template<class T>
ACE_Future_Set< T >::~ACE_Future_Set void


Destructor.

template<class T>
ACE_Future_Set< T >::ACE_Future_Set const ACE_Future_Set< T > &    [private]



Member Function Documentation

template<class T>
int ACE_Future_Set< T >::insert ACE_Future< T > &    future


Enqueus the given ACE_Future into this objects queue when it is readable.

Returns 0 if the future is successfully inserted, 1 if the future is already inserted, and -1 if failures occur.

template<class T>
int ACE_Future_Set< T >::is_empty void    const


Return 1 if their are no ACE_Future objects left on its queue and 0 otherwise.

When an ACE_Future_Set has no ACE_Future>subjects to observe it is empty. The ACE_Future_Set is in the empty state when either the caller(s) have retrieved every readable ACE_Future subject assigned the ACE_Future_Set via the ACE_Future_Set::next_readable() method, or when the ACE_Future_Set has not been assigned any subjects.

template<class T>
int ACE_Future_Set< T >::next_readable ACE_Future< T > &    result,
ACE_Time_Value   tv = 0


Wait up to <tv> time to get the <value>. Note that <tv> must be specified in absolute time rather than relative time.); get the next <ACE_Future> that is readable. If <tv> = 0, the will block forever.

If a readable future becomes available, then the input <ACE_Future> object param will be assigned with it and 1 will be returned. If the <ACE_Future_Set> is empty (i.e. see definition of <ACE_Future_Set::is_empty>), then 0 is returned.

When a readable <ACE_Future> object is retrieved via the <ACE_Future_Set::next_readable> method, the <ACE_Future_Set> will remove that <ACE_Future> object from its list of subjects.

template<class T>
void ACE_Future_Set< T >::operator= const ACE_Future_Set< T > &    [private]


template<class T>
void ACE_Future_Set< T >::update const ACE_Future< T > &    future [virtual]


Called by the ACE_Future subject in which we are subscribed to when its value is written to.

Implements ACE_Future_Observer< T >.


Member Data Documentation

template<class T>
ACE_Future_Set< T >::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

Reimplemented from ACE_Future_Observer< T >.

template<class T>
int ACE_Future_Set< T >::delete_queue_ [private]


Keeps track of whether we need to delete the message queue.

template<class T>
FUTURE_HASH_MAP ACE_Future_Set< T >::future_map_ [private]


Map of <ACE_Futures>, subjects, which have not been written to by client's writer thread.

template<class T>
ACE_Message_Queue<ACE_SYNCH>* ACE_Future_Set< T >::future_notification_queue_ [private]


Message queue for notifying the reader thread of <ACE_Futures> which have been written to by client's writer thread.


The documentation for this class was generated from the following files:
