ACE_Framework_Component Class Reference

Base class that defines a uniform interface for all managed framework components. More...

#include <Framework_Component.h>

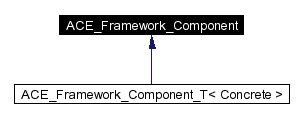

Inheritance diagram for ACE_Framework_Component:

[legend]List of all members.

Public Methods
	ACE_Framework_Component (void *_this, const ACE_TCHAR *dll_name=0, const ACE_TCHAR *name=0)
	Constructor.
virtual void	close_singleton (void)=0
	Close the contained singleton.
Protected Methods
virtual	~ACE_Framework_Component (void)
	Destructor.
Private Attributes
const void *	this_
	Pointer to the actual component.
const ACE_TCHAR *	dll_name_
	Library associated with this component.
const ACE_TCHAR *	name_
	Component name.
Friends
class	ACE_Framework_Repository

---

Detailed Description

Base class that defines a uniform interface for all managed framework components.

---

Constructor & Destructor Documentation

ACE_INLINE ACE_Framework_Component::ACE_Framework_Component (  void *    _this, const ACE_TCHAR *    dll_name = 0, const ACE_TCHAR *    name = 0 )

Constructor.

ACE_Framework_Component::~ACE_Framework_Component (  void    )  [protected, virtual]

Destructor.

---

Member Function Documentation

virtual void ACE_Framework_Component::close_singleton (  void    )  [pure virtual]

Close the contained singleton. Implemented in ACE_Framework_Component_T< Concrete >.

---

Friends And Related Function Documentation

friend class ACE_Framework_Repository [friend]

---

Member Data Documentation

const ACE_TCHAR* ACE_Framework_Component::dll_name_ [private]

Library associated with this component.

const ACE_TCHAR* ACE_Framework_Component::name_ [private]

Component name.

const void* ACE_Framework_Component::this_ [private]

Pointer to the actual component.

---

The documentation for this class was generated from the following files:

• Framework_Component.h
• Framework_Component.cpp
• Framework_Component.inl

---
