ACE_Fixed_Set< T, ACE_SIZE > Class Template Reference

Implement a simple unordered set of <T> with maximum <ACE_SIZE>. More...

#include <Containers_T.h>

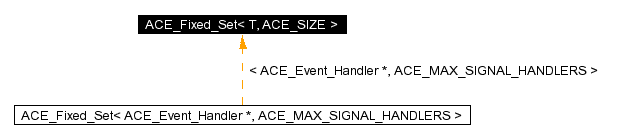

Inheritance diagram for ACE_Fixed_Set< T, ACE_SIZE >:

Inheritance graph
[legend]
Collaboration diagram for ACE_Fixed_Set< T, ACE_SIZE >:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_Fixed_Set_Iterator<
T, ACE_SIZE >
ITERATOR
typedef ACE_Fixed_Set_Iterator<
T, ACE_SIZE >
CONST_ITERATOR

Public Methods

 ACE_Fixed_Set (void)
 Default Constructor.

 ACE_Fixed_Set (const ACE_Fixed_Set< T, ACE_SIZE > &)
 Copy constructor.

void operator= (const ACE_Fixed_Set< T, ACE_SIZE > &)
 Assignment operator.

 ~ACE_Fixed_Set (void)
 Destructor.

int is_empty (void) const
 Returns 1 if the container is empty, otherwise returns 0.

int is_full (void) const
 Returns 1 if the container is full, otherwise returns 0.

int insert (const T &new_item)
 Linear time insertion of an item unique to the set.

int remove (const T &item)
 Linear time removal operation of an item.

int find (const T &item) const
 Finds if item occurs in the set. Returns 0 if finds, else -1.

size_t size (void) const
 Size of the set.

void dump (void) const
 Dump the state of an object.


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.


Private Attributes

struct {
   T   item_
   int   is_free_
search_structure_ [ACE_SIZE]
 Holds the contents of the set.

size_t cur_size_
 Current size of the set.

size_t max_size_
 Maximum size of the set.


Friends

class ACE_Fixed_Set_Iterator< T, ACE_SIZE >
class ACE_Fixed_Set_Const_Iterator< T, ACE_SIZE >

Detailed Description

template<class T, size_t ACE_SIZE>
class ACE_Fixed_Set< T, ACE_SIZE >

Implement a simple unordered set of <T> with maximum <ACE_SIZE>.

This implementation of an unordered set uses a fixed array. It does not allow duplicate members. The set provides linear insertion/deletion operations.

Requirements and Performance Characteristics


Member Typedef Documentation

template<class T, size_t ACE_SIZE>
typedef ACE_Fixed_Set_Iterator<T, ACE_SIZE> ACE_Fixed_Set< T, ACE_SIZE >::CONST_ITERATOR


template<class T, size_t ACE_SIZE>
typedef ACE_Fixed_Set_Iterator<T, ACE_SIZE> ACE_Fixed_Set< T, ACE_SIZE >::ITERATOR



Constructor & Destructor Documentation

template<class T, size_t ACE_SIZE>
ACE_Fixed_Set< T, ACE_SIZE >::ACE_Fixed_Set void


Default Constructor.

Creates an empy set

template<class T, size_t ACE_SIZE>
ACE_Fixed_Set< T, ACE_SIZE >::ACE_Fixed_Set const ACE_Fixed_Set< T, ACE_SIZE > &


Copy constructor.

Initializes a set to be a copy of the set parameter.

template<class T, size_t ACE_SIZE>
ACE_Fixed_Set< T, ACE_SIZE >::~ACE_Fixed_Set void


Destructor.

Destroys a set.


Member Function Documentation

template<class T, size_t ACE_SIZE>
void ACE_Fixed_Set< T, ACE_SIZE >::dump void    const


Dump the state of an object.

template<class T, size_t ACE_SIZE>
int ACE_Fixed_Set< T, ACE_SIZE >::find const T &    item const


Finds if item occurs in the set. Returns 0 if finds, else -1.

Performs a linear find operation for the specified item.

template<class T, size_t ACE_SIZE>
int ACE_Fixed_Set< T, ACE_SIZE >::insert const T &    new_item


Linear time insertion of an item unique to the set.

Insert new_item into the set (doesn't allow duplicates). Returns -1 if failures occur, 1 if item is already present, else 0.

template<class T, size_t ACE_SIZE>
ACE_INLINE int ACE_Fixed_Set< T, ACE_SIZE >::is_empty void    const


Returns 1 if the container is empty, otherwise returns 0.

Performs constant time check to determine if a set is empty.

template<class T, size_t ACE_SIZE>
ACE_INLINE int ACE_Fixed_Set< T, ACE_SIZE >::is_full void    const


Returns 1 if the container is full, otherwise returns 0.

Performs a constant time check to see if the set is full.

template<class T, size_t ACE_SIZE>
void ACE_Fixed_Set< T, ACE_SIZE >::operator= const ACE_Fixed_Set< T, ACE_SIZE > &


Assignment operator.

Deep copy of one set to another.

template<class T, size_t ACE_SIZE>
int ACE_Fixed_Set< T, ACE_SIZE >::remove const T &    item


Linear time removal operation of an item.

Remove first occurrence of <item> from the set. Returns 0 if it removes the item, -1 if it can't find the item, and -1 if a failure occurs. Removal doesn't reclaim memory for the item.

template<class T, size_t ACE_SIZE>
size_t ACE_Fixed_Set< T, ACE_SIZE >::size void    const


Size of the set.

Returns the current size of the set.


Friends And Related Function Documentation

template<class T, size_t ACE_SIZE>
friend class ACE_Fixed_Set_Const_Iterator< T, ACE_SIZE > [friend]


template<class T, size_t ACE_SIZE>
friend class ACE_Fixed_Set_Iterator< T, ACE_SIZE > [friend]



Member Data Documentation

template<class T, size_t ACE_SIZE>
ACE_Fixed_Set< T, ACE_SIZE >::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

template<class T, size_t ACE_SIZE>
size_t ACE_Fixed_Set< T, ACE_SIZE >::cur_size_ [private]


Current size of the set.

template<class T, size_t ACE_SIZE>
int ACE_Fixed_Set< T, ACE_SIZE >::is_free_ [private]


Keeps track of whether this item is in use or not.

template<class T, size_t ACE_SIZE>
T ACE_Fixed_Set< T, ACE_SIZE >::item_ [private]


Item in the set.

template<class T, size_t ACE_SIZE>
size_t ACE_Fixed_Set< T, ACE_SIZE >::max_size_ [private]


Maximum size of the set.

struct { ... } ACE_Fixed_Set< T, ACE_SIZE >::search_structure_[ACE_SIZE] [private]


Holds the contents of the set.


The documentation for this class was generated from the following files:
