ACE_Based_Pointer_Basic< CONCRETE > Class Template Reference

A proxy that keeps track of the relative offset of a "pointer" from its base address. This class makes it possible to transparently use "pointers" in shared memory as easily as programming with pointers to local memory. In particular, we don't need to ensure that the base addresses of all the pointers are mapped into separate processes at the same absolute memory base address. More...

#include <Based_Pointer_T.h>

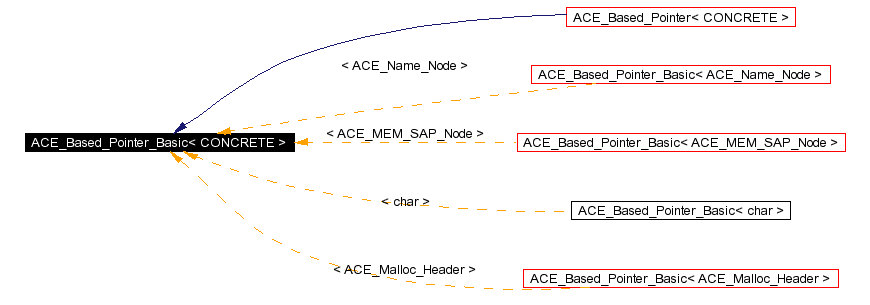

Inheritance diagram for ACE_Based_Pointer_Basic< CONCRETE >:

Inheritance graph
[legend]
List of all members.

Public Methods

 ACE_Based_Pointer_Basic (void)
 ACE_Based_Pointer_Basic (CONCRETE *initial)
 ACE_Based_Pointer_Basic (const ACE_Based_Pointer_Basic< CONCRETE > &)
 Copy constructor.

 ACE_Based_Pointer_Basic (const void *base_addr, int o)
void operator= (CONCRETE *from)
 Pseudo-assignment operator.

void operator= (const ACE_Based_Pointer_Basic< CONCRETE > &)
 Pseudo-assignment operator.

CONCRETE operator * (void) const
 Dereference operator.

int operator< (const ACE_Based_Pointer_Basic< CONCRETE > &) const
 Less than operator.

int operator<= (const ACE_Based_Pointer_Basic< CONCRETE > &) const
 Less than or equal operator.

int operator> (const ACE_Based_Pointer_Basic< CONCRETE > &) const
 Greater than operator.

int operator>= (const ACE_Based_Pointer_Basic< CONCRETE > &) const
 Greater than or equal operator.

int operator== (const ACE_Based_Pointer_Basic< CONCRETE > &) const
 Equality operator.

int operator!= (const ACE_Based_Pointer_Basic< CONCRETE > &) const
 Inequality operator.

CONCRETE operator[] (int index) const
 Subscript operator.

void operator+= (int index)
 Increment operator.

 operator CONCRETE * () const
 Returns the underlying memory address of the smart pointer.

CONCRETE * addr (void) const
 Returns the underlying memory address of the smart pointer.

void dump (void) const
 Dump the state of the object.


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.


Protected Attributes

long target_
long base_offset_
 Keep track of our offset from the base pointer.


Detailed Description

template<class CONCRETE>
class ACE_Based_Pointer_Basic< CONCRETE >

A proxy that keeps track of the relative offset of a "pointer" from its base address. This class makes it possible to transparently use "pointers" in shared memory as easily as programming with pointers to local memory. In particular, we don't need to ensure that the base addresses of all the pointers are mapped into separate processes at the same absolute memory base address.


Constructor & Destructor Documentation

template<class CONCRETE>
ACE_Based_Pointer_Basic< CONCRETE >::ACE_Based_Pointer_Basic void


This constructor initializes the <base_offset_> by asking the <ACE_BASED_POINTER_REPOSITORY> Singleton for the base address of the memory region within which it is instantiated. Two results are possible:

1. An <ACE_*_Memory_Pool> has stored a base address/size pair and the new based-pointer instance is located between the base address and the base address + size - 1. In this case, the repository returns the base address.

2. No suitable address/size pair was found. The repository assumes an address in the regular (not mapped) virtual address space of the process and returns 0. In this case, the based-pointer uses its address as an offset to it's base address 0.

template<class CONCRETE>
ACE_Based_Pointer_Basic< CONCRETE >::ACE_Based_Pointer_Basic CONCRETE *    initial


Initialize this object using the <initial> pointer. This constructor initializes the <base_offset_> by asking the <ACE_BASED_POINTER_REPOSITORY> Singleton for the base address of the memory region within which it is instantiated. Three results are possible:

1. An <ACE_*_Memory_Pool> has stored a base address/size pair and the new based-pointer instance is located between the base address and the base address + size - 1. In this case, the repository returns the base address.

2. No suitable address/size pair was found. The repository assumes an address in the regular (not mapped) virtual address space of the process and returns 0. In this case, the based-pointer uses its address as an offset to its base address 0.

3. If <initial> is 0 then set the value of <target_> to -1, which indicates a "NULL" pointer.

template<class CONCRETE>
ACE_Based_Pointer_Basic< CONCRETE >::ACE_Based_Pointer_Basic const ACE_Based_Pointer_Basic< CONCRETE > &


Copy constructor.

template<class CONCRETE>
ACE_Based_Pointer_Basic< CONCRETE >::ACE_Based_Pointer_Basic const void *    base_addr,
int    o


Constructor for know base address. <o> is only used to resolve overload ambiguity.


Member Function Documentation

template<class CONCRETE>
ACE_INLINE CONCRETE * ACE_Based_Pointer_Basic< CONCRETE >::addr void    const


Returns the underlying memory address of the smart pointer.

template<class CONCRETE>
void ACE_Based_Pointer_Basic< CONCRETE >::dump void    const


Dump the state of the object.

template<class CONCRETE>
ACE_INLINE CONCRETE ACE_Based_Pointer_Basic< CONCRETE >::operator * void    const


Dereference operator.

template<class CONCRETE>
ACE_INLINE ACE_Based_Pointer_Basic< CONCRETE >::operator CONCRETE *


Returns the underlying memory address of the smart pointer.

template<class CONCRETE>
ACE_INLINE int ACE_Based_Pointer_Basic< CONCRETE >::operator!= const ACE_Based_Pointer_Basic< CONCRETE > &    const


Inequality operator.

template<class CONCRETE>
ACE_INLINE void ACE_Based_Pointer_Basic< CONCRETE >::operator+= int    index


Increment operator.

template<class CONCRETE>
ACE_INLINE int ACE_Based_Pointer_Basic< CONCRETE >::operator< const ACE_Based_Pointer_Basic< CONCRETE > &    const


Less than operator.

template<class CONCRETE>
ACE_INLINE int ACE_Based_Pointer_Basic< CONCRETE >::operator<= const ACE_Based_Pointer_Basic< CONCRETE > &    const


Less than or equal operator.

template<class CONCRETE>
ACE_INLINE void ACE_Based_Pointer_Basic< CONCRETE >::operator= const ACE_Based_Pointer_Basic< CONCRETE > &


Pseudo-assignment operator.

template<class CONCRETE>
ACE_INLINE void ACE_Based_Pointer_Basic< CONCRETE >::operator= CONCRETE *    from


Pseudo-assignment operator.

Reimplemented in ACE_Based_Pointer< CONCRETE >, ACE_Based_Pointer< ACE_Name_Node >, ACE_Based_Pointer< ACE_MEM_SAP_Node >, and ACE_Based_Pointer< ACE_Malloc_Header >.

template<class CONCRETE>
ACE_INLINE int ACE_Based_Pointer_Basic< CONCRETE >::operator== const ACE_Based_Pointer_Basic< CONCRETE > &    const


Equality operator.

template<class CONCRETE>
ACE_INLINE int ACE_Based_Pointer_Basic< CONCRETE >::operator> const ACE_Based_Pointer_Basic< CONCRETE > &    const


Greater than operator.

template<class CONCRETE>
ACE_INLINE int ACE_Based_Pointer_Basic< CONCRETE >::operator>= const ACE_Based_Pointer_Basic< CONCRETE > &    const


Greater than or equal operator.

template<class CONCRETE>
ACE_INLINE CONCRETE ACE_Based_Pointer_Basic< CONCRETE >::operator[] int    index const


Subscript operator.


Member Data Documentation

template<class CONCRETE>
ACE_Based_Pointer_Basic< CONCRETE >::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

template<class CONCRETE>
long ACE_Based_Pointer_Basic< CONCRETE >::base_offset_ [protected]


Keep track of our offset from the base pointer.

template<class CONCRETE>
long ACE_Based_Pointer_Basic< CONCRETE >::target_ [protected]



The documentation for this class was generated from the following files:
