ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER > Class Template Reference

Defines a map implementation. More...

#include <Map_T.h>

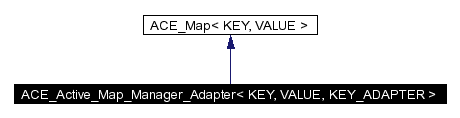

Inheritance diagram for ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >:

Inheritance graph
[legend]

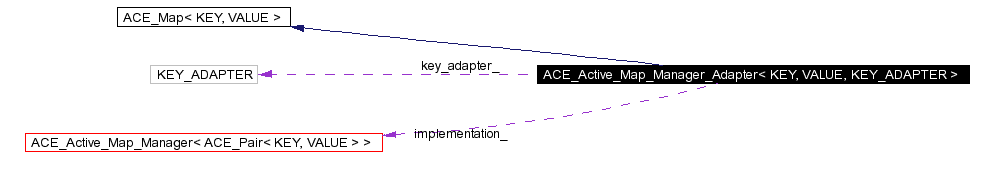

Collaboration diagram for ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_Pair< KEY, VALUE > expanded_value
typedef ACE_Active_Map_Manager_Iterator_Adapter<
ACE_Reference_Pair< const
KEY, VALUE >, expanded_value > 		iterator_impl
typedef ACE_Active_Map_Manager_Reverse_Iterator_Adapter<
ACE_Reference_Pair< const
KEY, VALUE >, expanded_value > 		reverse_iterator_impl
typedef ACE_Active_Map_Manager<
expanded_value > 		implementation

Public Methods

 ACE_Active_Map_Manager_Adapter (ACE_Allocator *alloc=0)
 Initialize with the <ACE_DEFAULT_MAP_SIZE>.

 ACE_Active_Map_Manager_Adapter (size_t size, ACE_Allocator *alloc=0)
virtual ~ACE_Active_Map_Manager_Adapter (void)
 Close down and release dynamically allocated resources.

virtual int open (size_t length=ACE_DEFAULT_MAP_SIZE, ACE_Allocator *alloc=0)
 Initialize a <Map> with size <length>.

virtual int close (void)
 Close down a <Map> and release dynamically allocated resources.

virtual int bind (const KEY &key, const VALUE &value)
virtual int bind_modify_key (const VALUE &value, KEY &key)
virtual int create_key (KEY &key)
virtual int bind_create_key (const VALUE &value, KEY &key)
virtual int bind_create_key (const VALUE &value)
virtual int recover_key (const KEY &modified_key, KEY &original_key)
virtual int rebind (const KEY &key, const VALUE &value)
virtual int rebind (const KEY &key, const VALUE &value, VALUE &old_value)
virtual int rebind (const KEY &key, const VALUE &value, KEY &old_key, VALUE &old_value)
virtual int trybind (const KEY &key, VALUE &value)
virtual int find (const KEY &key, VALUE &value)
 Locate <value> associated with <key>.

virtual int find (const KEY &key)
 Is <key> in the map?

virtual int unbind (const KEY &key)
 Remove <key> from the map.

virtual int unbind (const KEY &key, VALUE &value)
virtual size_t current_size (void) const
 Return the current size of the map.

virtual size_t total_size (void) const
 Return the total size of the map.

virtual void dump (void) const
 Dump the state of an object.

ACE_Active_Map_Manager< ACE_Pair<
KEY, VALUE > > & 		impl (void)
 Accessor to implementation object.

KEY_ADAPTER & key_adapter (void)
 Accessor to key adapter.


Protected Methods

virtual int find (const KEY &key, expanded_value *&internal_value)
 Find helper.

virtual int unbind (const KEY &key, expanded_value *&internal_value)
 Unbind helper.

virtual ACE_Iterator_Impl<
ACE_Reference_Pair< const
KEY, VALUE > > * 		begin_impl (void)
 Return forward iterator.

virtual ACE_Iterator_Impl<
ACE_Reference_Pair< const
KEY, VALUE > > * 		end_impl (void)
virtual ACE_Reverse_Iterator_Impl<
ACE_Reference_Pair< const
KEY, VALUE > > * 		rbegin_impl (void)
 Return reverse iterator.

virtual ACE_Reverse_Iterator_Impl<
ACE_Reference_Pair< const
KEY, VALUE > > * 		rend_impl (void)

Protected Attributes

ACE_Active_Map_Manager< ACE_Pair<
KEY, VALUE > > 		implementation_
 All implementation details are forwarded to this class.

KEY_ADAPTER key_adapter_
 Adapts between the user key and the Active_Map_Manager_Key.


Private Methods

void operator= (const ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER > &)
 ACE_Active_Map_Manager_Adapter (const ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER > &)

Detailed Description

template<class KEY, class VALUE, class KEY_ADAPTER>
class ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >

Defines a map implementation.

Implementation to be provided by <ACE_Active_Map_Manager>.

Member Typedef Documentation

template<class KEY, class VALUE, class KEY_ADAPTER>
typedef ACE_Pair<KEY, VALUE> ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::expanded_value


template<class KEY, class VALUE, class KEY_ADAPTER>
typedef ACE_Active_Map_Manager<expanded_value> ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::implementation


template<class KEY, class VALUE, class KEY_ADAPTER>
typedef ACE_Active_Map_Manager_Iterator_Adapter<ACE_Reference_Pair<const KEY, VALUE>, expanded_value> ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::iterator_impl


template<class KEY, class VALUE, class KEY_ADAPTER>
typedef ACE_Active_Map_Manager_Reverse_Iterator_Adapter<ACE_Reference_Pair<const KEY, VALUE>, expanded_value> ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::reverse_iterator_impl


Constructor & Destructor Documentation

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::ACE_Active_Map_Manager_Adapter (  ACE_Allocator *    alloc = 0 )


Initialize with the <ACE_DEFAULT_MAP_SIZE>.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::ACE_Active_Map_Manager_Adapter (  size_t    size,
ACE_Allocator *    alloc = 0
)


Initialize with <size> entries. The <size> parameter is ignored by maps for which an initialize size does not make sense.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::~ACE_Active_Map_Manager_Adapter (  void    )  [virtual]


Close down and release dynamically allocated resources.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::ACE_Active_Map_Manager_Adapter (  const ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER > &    )  [private]


Member Function Documentation

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE ACE_Iterator_Impl< ACE_Reference_Pair< const KEY, VALUE > > * ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::begin_impl (  void    )  [protected, virtual]


Return forward iterator.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::bind (  const KEY &    key,
const VALUE &    value
)  [virtual]


Add <key>/<value> pair to the map. If <key> is already in the map then no changes are made and 1 is returned. Returns 0 on a successful addition. This function fails for maps that do not allow user specified keys. <key> is an "in" parameter.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::bind_create_key (  const VALUE &    value )  [virtual]


Add <value> to the map. The user does not care about the corresponding key produced by the Map. For maps that do not naturally produce keys, the map adapters will use the <KEY_GENERATOR> class to produce a key. However, the users are responsible for not jeopardizing this key production scheme by using user specified keys with keys produced by the key generator.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::bind_create_key (  const VALUE &    value,
KEY &    key
)  [virtual]


Add <value> to the map, and the corresponding key produced by the Map is returned through <key> which is an "out" parameter. For maps that do not naturally produce keys, the map adapters will use the <KEY_GENERATOR> class to produce a key. However, the users are responsible for not jeopardizing this key production scheme by using user specified keys with keys produced by the key generator.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::bind_modify_key (  const VALUE &    value,
KEY &    key
)  [virtual]


Add <key>/<value> pair to the map. <key> is an "inout" parameter and maybe modified/extended by the map to add additional information. To recover original key, call the <recover_key> method.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::close (  void    )  [virtual]


Close down a <Map> and release dynamically allocated resources.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::create_key (  KEY &    key )  [virtual]


Produce a key and return it through <key> which is an "out" parameter. For maps that do not naturally produce keys, the map adapters will use the <KEY_GENERATOR> class to produce a key. However, the users are responsible for not jeopardizing this key production scheme by using user specified keys with keys produced by the key generator.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE size_t ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::current_size (  void    )  const [virtual]


Return the current size of the map.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE void ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::dump (  void    )  const [virtual]


Dump the state of an object.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE ACE_Iterator_Impl< ACE_Reference_Pair< const KEY, VALUE > > * ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::end_impl (  void    )  [protected, virtual]


Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::find (  const KEY &    key,
expanded_value *&    internal_value
)  [protected, virtual]


Find helper.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::find (  const KEY &    key )  [virtual]


Is <key> in the map?

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::find (  const KEY &    key,
VALUE &    value
)  [virtual]


Locate <value> associated with <key>.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE ACE_Active_Map_Manager< ACE_Pair< KEY, VALUE > > & ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::impl (  void    )


Accessor to implementation object.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE KEY_ADAPTER & ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::key_adapter (  void    )


Accessor to key adapter.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::open (  size_t    length = ACE_DEFAULT_MAP_SIZE,
ACE_Allocator *    alloc = 0
)  [virtual]


Initialize a <Map> with size <length>.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
void ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::operator= (  const ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER > &    )  [private]


template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE ACE_Reverse_Iterator_Impl< ACE_Reference_Pair< const KEY, VALUE > > * ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::rbegin_impl (  void    )  [protected, virtual]


Return reverse iterator.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::rebind (  const KEY &    key,
const VALUE &    value,
KEY &    old_key,
VALUE &    old_value
)  [virtual]


Reassociate <key> with <value>, storing the old key and value into the "out" parameters <old_key> and <old_value>. The function fails if <key> is not in the map for maps that do not allow user specified keys. However, for maps that allow user specified keys, if the key is not in the map, a new <key>/<value> association is created.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::rebind (  const KEY &    key,
const VALUE &    value,
VALUE &    old_value
)  [virtual]


Reassociate <key> with <value>, storing the old value into the "out" parameter <old_value>. The function fails if <key> is not in the map for maps that do not allow user specified keys. However, for maps that allow user specified keys, if the key is not in the map, a new <key>/<value> association is created.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::rebind (  const KEY &    key,
const VALUE &    value
)  [virtual]


Reassociate <key> with <value>. The function fails if <key> is not in the map for maps that do not allow user specified keys. However, for maps that allow user specified keys, if the key is not in the map, a new <key>/<value> association is created.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::recover_key (  const KEY &    modified_key,
KEY &    original_key
)  [virtual]


Recovers the original key potentially modified by the map during <bind_modify_key>.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE ACE_Reverse_Iterator_Impl< ACE_Reference_Pair< const KEY, VALUE > > * ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::rend_impl (  void    )  [protected, virtual]


Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE size_t ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::total_size (  void    )  const [virtual]


Return the total size of the map.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::trybind (  const KEY &    key,
VALUE &    value
)  [virtual]


Associate <key> with <value> if and only if <key> is not in the map. If <key> is already in the map, then the <value> parameter is overwritten with the existing value in the map. Returns 0 if a new <key>/<value> association is created. Returns 1 if an attempt is made to bind an existing entry. This function fails for maps that do not allow user specified keys.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::unbind (  const KEY &    key,
expanded_value *&    internal_value
)  [protected, virtual]


Unbind helper.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::unbind (  const KEY &    key,
VALUE &    value
)  [virtual]


Remove <key> from the map, and return the <value> associated with <key>.

Implements ACE_Map< KEY, VALUE >.

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_INLINE int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::unbind (  const KEY &    key )  [virtual]


Remove <key> from the map.

Implements ACE_Map< KEY, VALUE >.

Member Data Documentation

template<class KEY, class VALUE, class KEY_ADAPTER>
ACE_Active_Map_Manager<ACE_Pair<KEY, VALUE> > ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::implementation_ [protected]


All implementation details are forwarded to this class.

template<class KEY, class VALUE, class KEY_ADAPTER>
KEY_ADAPTER ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::key_adapter_ [protected]


Adapts between the user key and the Active_Map_Manager_Key.

The documentation for this class was generated from the following files:
Generated on Fri Apr 2 16:46:15 2004 for ACE by doxygen1.2.18
