Basic_Types.h File Reference

#include "ace/config-all.h"
#include "ace/os_include/os_limits.h"
#include "ace/os_include/os_float.h"
#include "ace/os_include/os_stdlib.h"
#include "ace/os_include/os_stddef.h"
#include "ace/os_include/sys/os_types.h"
#include "ace/ACE_export.h"
#include "ace/Basic_Types.i"

Include dependency graph for Basic_Types.h:

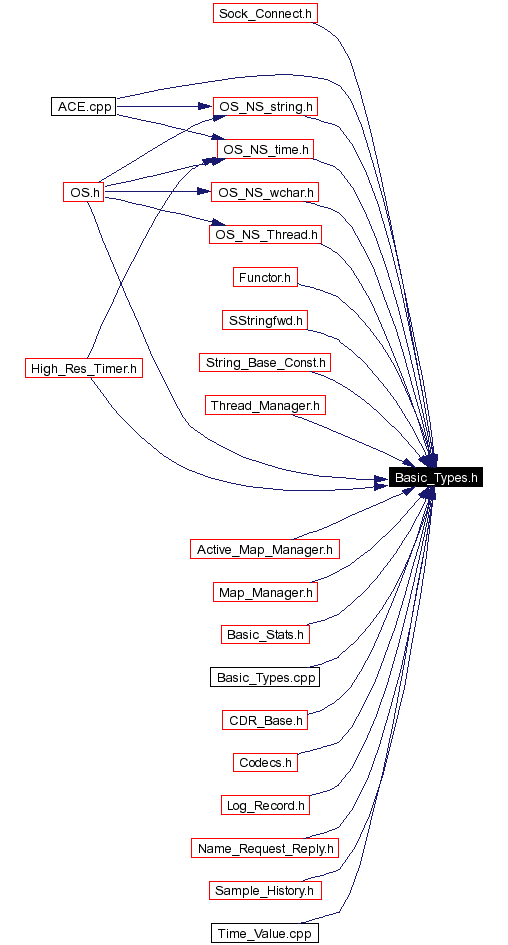

This graph shows which files directly or indirectly include this file:

Defines
#define	ACE_SIZEOF_CHAR   1
#define	ACE_SIZEOF_WCHAR   0
#define	ACE_SIZEOF_LONG_LONG   8
#define	ACE_WINT_T   wint_t
#define	ACE_WCHAR_T   wchar_t
#define	ACE_SIZEOF_VOID_P   ACE_SIZEOF_LONG
#define	ACE_BIG_ENDIAN   0x3210
#define	ACE_BYTE_ORDER   ACE_BIG_ENDIAN
#define	ACE_SWAP_LONG(L)
#define	ACE_SWAP_WORD(L)   ((((L) & 0x00FF) << 8) | (((L) & 0xFF00) >> 8))
#define	ACE_HTONL(X)   X
#define	ACE_NTOHL(X)   X
#define	ACE_IDL_NCTOHL(X)   (X << 24)
#define	ACE_IDL_NSTOHL(X)   ((X) << 16)
#define	ACE_HTONS(x)   x
#define	ACE_NTOHS(x)   x
#define	ACE_LONGLONG_TO_PTR(PTR_TYPE, L)   ACE_reinterpret_cast (PTR_TYPE, ACE_static_cast (ptrdiff_t, L))
#define	ACE_U64_TO_U32(n)   (ACE_static_cast (ACE_UINT32, (n)))
#define	ACE_CU64_TO_CU32(n)   (ACE_static_cast (ACE_CAST_CONST ACE_UINT32, (n)))
#define	ACE_UINT64_LITERAL(n)   n ## ui64
#define	ACE_INT64_LITERAL(n)   n ## i64
#define	ACE_UINT64_FORMAT_SPECIFIER   ACE_LIB_TEXT ("%llu")
#define	ACE_INT64_FORMAT_SPECIFIER   ACE_LIB_TEXT ("%lld")
#define	ACE_SSIZE_T_FORMAT_SPECIFIER   ACE_LIB_TEXT ("%d")
#define	ACE_SIZE_T_FORMAT_SPECIFIER   ACE_LIB_TEXT ("%u")
#define	ACE_UINT64_DBLCAST_ADAPTER(n)   ACE_static_cast (__int64, n)
#define	ACE_CHAR_MAX   0x7F
#define	ACE_CHAR_MIN   -(ACE_CHAR_MAX)-1
#define	ACE_OCTET_MAX   0xFF
#define	ACE_INT16_MAX   0x7FFF
#define	ACE_INT16_MIN   -(ACE_INT16_MAX)-1
#define	ACE_UINT16_MAX   0xFFFF
#define	ACE_WCHAR_MAX   ACE_UINT16_MAX
#define	ACE_INT32_MAX   0x7FFFFFFF
#define	ACE_INT32_MIN   -(ACE_INT32_MAX)-1
#define	ACE_UINT32_MAX   0xFFFFFFFF
#define	ACE_INT64_MAX   ACE_INT64_LITERAL(0x7FFFFFFFFFFFFFFF)
#define	ACE_INT64_MIN   -(ACE_INT64_MAX)-1
#define	ACE_UINT64_MAX   ACE_UINT64_LITERAL(0xFFFFFFFFFFFFFFFF)
#define	ACE_FLT_MAX   3.402823466e+38F
#define	ACE_DBL_MAX   1.7976931348623158e+308
Typedefs
typedef unsigned long long	ACE_UINT64
typedef ACE_UINT16	ACE_USHORT16
typedef unsigned char	ACE_Byte
typedef ptrdiff_t	ptr_arith_t

---

Detailed Description

Id:

Basic_Types.h,v 4.111 2003/11/06 18:19:38 dhinton Exp

Author:

David L. Levine

defines the list of preprocessor macros below. The config.h file can pre-define any of these to short-cut the definitions. This is usually only necessary if the preprocessor does all of its math using integers.

Sizes of built-in types:

• ACE_SIZEOF_CHAR
• ACE_SIZEOF_WCHAR
• ACE_SIZEOF_SHORT
• ACE_SIZEOF_INT
• ACE_SIZEOF_LONG
• ACE_SIZEOF_LONG_LONG
• ACE_SIZEOF_VOID_P
• ACE_SIZEOF_FLOAT
• ACE_SIZEOF_DOUBLE
• ACE_SIZEOF_LONG_DOUBLE

Wrappers for built-in types of specific sizes:

• ACE_USHORT16 (For backward compatibility. Use ACE_UINT16 instead.)
• ACE_INT16
• ACE_UINT16
• ACE_INT32
• ACE_UINT32
• ACE_UINT64 (Note: ACE_INT64 is not defined, because there is no ACE_LongLong for platforms that don't have a native 8-byte integer type.)

Byte-order (endian-ness) determination: ACE_BYTE_ORDER, to either ACE_BIG_ENDIAN or ACE_LITTLE_ENDIAN

---

Define Documentation

#define ACE_BIG_ENDIAN   0x3210

#define ACE_BYTE_ORDER   ACE_BIG_ENDIAN

#define ACE_CHAR_MAX   0x7F

#define ACE_CHAR_MIN   -(ACE_CHAR_MAX)-1

#define ACE_CU64_TO_CU32 (  n    )     (ACE_static_cast (ACE_CAST_CONST ACE_UINT32, (n)))

#define ACE_DBL_MAX   1.7976931348623158e+308

#define ACE_FLT_MAX   3.402823466e+38F

#define ACE_HTONL (  X    )     X

#define ACE_HTONS (  x    )     x

#define ACE_IDL_NCTOHL (  X    )     (X << 24)

#define ACE_IDL_NSTOHL (  X    )     ((X) << 16)

#define ACE_INT16_MAX   0x7FFF

#define ACE_INT16_MIN   -(ACE_INT16_MAX)-1

#define ACE_INT32_MAX   0x7FFFFFFF

#define ACE_INT32_MIN   -(ACE_INT32_MAX)-1

#define ACE_INT64_FORMAT_SPECIFIER   ACE_LIB_TEXT ("%lld")

#define ACE_INT64_LITERAL (  n    )     n ## i64

#define ACE_INT64_MAX   ACE_INT64_LITERAL(0x7FFFFFFFFFFFFFFF)

#define ACE_INT64_MIN   -(ACE_INT64_MAX)-1

#define ACE_LONGLONG_TO_PTR (  PTR_TYPE, L    )     ACE_reinterpret_cast (PTR_TYPE, ACE_static_cast (ptrdiff_t, L))

#define ACE_NTOHL (  X    )     X

#define ACE_NTOHS (  x    )     x

#define ACE_OCTET_MAX   0xFF

#define ACE_SIZE_T_FORMAT_SPECIFIER   ACE_LIB_TEXT ("%u")

#define ACE_SIZEOF_CHAR   1

#define ACE_SIZEOF_LONG_LONG   8

#define ACE_SIZEOF_VOID_P   ACE_SIZEOF_LONG

#define ACE_SIZEOF_WCHAR   0

#define ACE_SSIZE_T_FORMAT_SPECIFIER   ACE_LIB_TEXT ("%d")

#define ACE_SWAP_LONG (  L    )

Value: ((ACE_SWAP_WORD ((L) & 0xFFFF) << 16) \ | ACE_SWAP_WORD(((L) >> 16) & 0xFFFF))

#define ACE_SWAP_WORD (  L    )     ((((L) & 0x00FF) << 8) | (((L) & 0xFF00) >> 8))

#define ACE_U64_TO_U32 (  n    )     (ACE_static_cast (ACE_UINT32, (n)))

#define ACE_UINT16_MAX   0xFFFF

#define ACE_UINT32_MAX   0xFFFFFFFF

#define ACE_UINT64_DBLCAST_ADAPTER (  n    )     ACE_static_cast (__int64, n)

#define ACE_UINT64_FORMAT_SPECIFIER   ACE_LIB_TEXT ("%llu")

#define ACE_UINT64_LITERAL (  n    )     n ## ui64

#define ACE_UINT64_MAX   ACE_UINT64_LITERAL(0xFFFFFFFFFFFFFFFF)

#define ACE_WCHAR_MAX   ACE_UINT16_MAX

#define ACE_WCHAR_T   wchar_t

#define ACE_WINT_T   wint_t

---

Typedef Documentation

typedef unsigned char ACE_Byte

typedef unsigned long long ACE_UINT64

typedef ACE_UINT16 ACE_USHORT16

typedef ptrdiff_t ptr_arith_t

---
