TAO_UIPMC_Endpoint Class Reference

TAO_UIPMC_Endpoint. More...

#include <UIPMC_Endpoint.h>

Inheritance diagram for TAO_UIPMC_Endpoint:

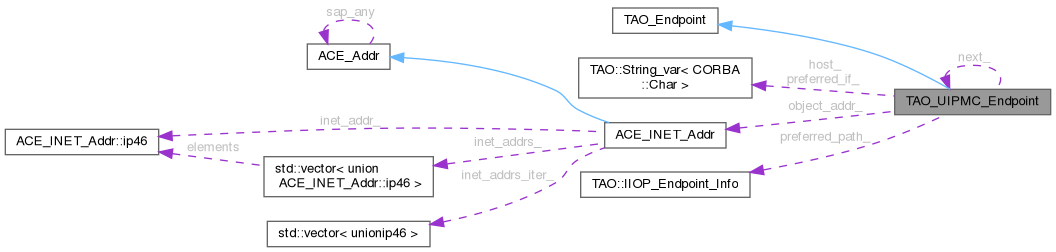

Collaboration diagram for TAO_UIPMC_Endpoint:

Public Member Functions
	TAO_UIPMC_Endpoint ()
	Default constructor.
	TAO_UIPMC_Endpoint (const ACE_INET_Addr &addr)
	Constructor.
	~TAO_UIPMC_Endpoint ()
	Destructor.
virtual TAO_Endpoint *	next ()
virtual int	addr_to_string (char *buffer, size_t length)
virtual TAO_Endpoint *	duplicate ()
	Makes a copy of this TAO_Endpoint.
CORBA::Boolean	is_equivalent (const TAO_Endpoint *other_endpoint)
CORBA::ULong	hash ()
	Return a hash value for this object.
const ACE_INET_Addr &	object_addr () const
	Return a reference to the object_addr .
void	object_addr (const ACE_INET_Addr &addr)
	Set the IP multicast address and port.
const char *	host () const
CORBA::UShort	port () const
	Return the port number.
CORBA::UShort	port (CORBA::UShort p)
	Set the port number.
bool	is_preferred_network () const
	Do we have a preferred local network interface set for this target?
const char *	preferred_network () const
	Return the preferred network interface if any.
CORBA::ULong	preferred_interfaces (TAO_ORB_Core *oc)
const char *	preferred_if () const
	Acessor for the preferred network interface name if set.
Public Member Functions inherited from TAO_Endpoint
	TAO_Endpoint (CORBA::ULong tag, CORBA::Short priority=TAO_INVALID_PRIORITY)
virtual	~TAO_Endpoint ()=default
CORBA::ULong	tag () const
void	priority (CORBA::Short priority)
CORBA::Short	priority () const
virtual TAO_Endpoint *	next_filtered (TAO_ORB_Core *, TAO_Endpoint *root)

Private Attributes
CORBA::String_var	host_
	String representing the host address.
CORBA::UShort	port_
	UDP port number.
ACE_INET_Addr	object_addr_
TAO::IIOP_Endpoint_Info	preferred_path_
	Preferred path for routing this endpoint.
TAO_UIPMC_Endpoint *	next_
CORBA::String_var	preferred_if_
	Preferred interface name (if set)

Additional Inherited Members
Protected Attributes inherited from TAO_Endpoint
TAO_SYNCH_MUTEX	addr_lookup_lock_
CORBA::ULong	hash_val_
CORBA::ULong const	tag_
CORBA::Short	priority_

Detailed Description

TAO_UIPMC_Endpoint.

UIPMC-specific implementation of PP Framework Endpoint interface.

Constructor & Destructor Documentation

TAO_UIPMC_Endpoint() [1/2]

TAO_UIPMC_Endpoint::TAO_UIPMC_Endpoint

(

)

Default constructor.

TAO_UIPMC_Endpoint() [2/2]

TAO_UIPMC_Endpoint::TAO_UIPMC_Endpoint

(

const ACE_INET_Addr &

addr

)

Constructor.

~TAO_UIPMC_Endpoint()

TAO_UIPMC_Endpoint::~TAO_UIPMC_Endpoint

(

)

Destructor.

Member Function Documentation

addr_to_string()

int TAO_UIPMC_Endpoint::addr_to_string ( char * buffer, size_t length )

virtual

Implements TAO_Endpoint.

duplicate()

TAO_Endpoint * TAO_UIPMC_Endpoint::duplicate ( )

virtual

Makes a copy of this TAO_Endpoint.

Implements TAO_Endpoint.

hash()

CORBA::ULong TAO_UIPMC_Endpoint::hash ( )

virtual

Return a hash value for this object.

Implements TAO_Endpoint.

host()

const char * TAO_UIPMC_Endpoint::host

(

)

const

Return a pointer to the stringified host address (not including the port). This class retains ownership of the address memory.

is_equivalent()

CORBA::Boolean TAO_UIPMC_Endpoint::is_equivalent ( const TAO_Endpoint * other_endpoint )

virtual

Return true if this endpoint is equivalent to other_endpoint. Two endpoints are equivalent if their port and host are the same.

Implements TAO_Endpoint.

is_preferred_network()

bool TAO_UIPMC_Endpoint::is_preferred_network

(

)

const

Do we have a preferred local network interface set for this target?

next()

TAO_Endpoint * TAO_UIPMC_Endpoint::next ( )

virtual

Implements TAO_Endpoint.

object_addr() [1/2]

const ACE_INET_Addr & TAO_UIPMC_Endpoint::object_addr

(

)

const

Return a reference to the object_addr .

object_addr() [2/2]

void TAO_UIPMC_Endpoint::object_addr

(

const ACE_INET_Addr &

addr

)

Set the IP multicast address and port.

port() [1/2]

CORBA::UShort TAO_UIPMC_Endpoint::port

(

)

const

Return the port number.

port() [2/2]

CORBA::UShort TAO_UIPMC_Endpoint::port

(

CORBA::UShort

p

)

Set the port number.

preferred_if()

const char * TAO_UIPMC_Endpoint::preferred_if

(

)

const

Acessor for the preferred network interface name if set.

preferred_interfaces()

CORBA::ULong TAO_UIPMC_Endpoint::preferred_interfaces

(

TAO_ORB_Core *

oc

)

Transform this endpoint into (potentially) a chain of endpoints in preferrence order of specific local interface bind address (if the ORB is thus configured)

preferred_network()

const char * TAO_UIPMC_Endpoint::preferred_network

(

)

const

Return the preferred network interface if any.

Member Data Documentation

host_

CORBA::String_var TAO_UIPMC_Endpoint::host_

private

String representing the host address.

next_

TAO_UIPMC_Endpoint* TAO_UIPMC_Endpoint::next_

private

UIPMC Endpoints can be strung into a list. Return the next endpoint in the list, if any.

object_addr_

ACE_INET_Addr TAO_UIPMC_Endpoint::object_addr_

private

Cached instance of ACE_INET_Addr for use in making invocations, etc.

port_

CORBA::UShort TAO_UIPMC_Endpoint::port_

private

UDP port number.

preferred_if_

CORBA::String_var TAO_UIPMC_Endpoint::preferred_if_

private

Preferred interface name (if set)

preferred_path_

TAO::IIOP_Endpoint_Info TAO_UIPMC_Endpoint::preferred_path_

private

Preferred path for routing this endpoint.

---

The documentation for this class was generated from the following files:

• UIPMC_Endpoint.h
• UIPMC_Endpoint.cpp
• UIPMC_Endpoint.inl
