Public Member Functions | Protected Member Functions | Protected Attributes | List of all members
TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl > Class Template Reference

Helper class for the child process created in TAO_AV_Endpoint_Process_Strategy. More...

#include <Endpoint_Strategy_T.h>

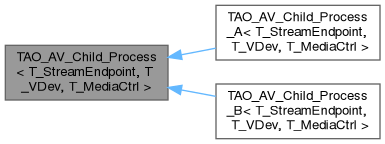

Inheritance diagram for TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >:
Inheritance graph
[legend]
Collaboration diagram for TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >:
Collaboration graph
[legend]

Public Member Functions

 TAO_AV_Child_Process ()
 Constructor.

virtual ~TAO_AV_Child_Process ()
 Destructor.

int init (int argc, ACE_TCHAR **argv, CORBA::ORB_ptr orb, PortableServer::POA_ptr poa)

int run (ACE_Time_Value *tv=0)
 runs the ORB event loop


Protected Member Functions

int activate_objects (int argc, ACE_TCHAR **argv)

char * activate_with_poa (PortableServer::Servant servant)
 activate the servant with the poa

int unbind_names ()
 Removes the vdev and streamendpoint names from the naming service.

int bind_to_naming_service ()
 Binds to the naming service.

int register_vdev ()
 Registers vdev with the naming service.

int register_stream_endpoint ()
 Registers stream_endpoint with the naming service.

int release_semaphore ()
 Releases the semaphore on which the parent is waiting on.

virtual int make_vdev (T_VDev *&vdev)

virtual int make_stream_endpoint (T_StreamEndpoint *&stream_endpoint)

virtual int make_mediactrl (T_MediaCtrl *&media_ctrl)


Protected Attributes

CosNaming::NamingContext_var naming_context_
 The root Naming Context of the TAO naming service.

CosNaming::Name vdev_name_
 Name of the vdev.

CosNaming::Name stream_endpoint_name_
 Name of the stream_endpoint.

T_StreamEndpoint * stream_endpoint_
 The stream endpoint member.

T_VDev * vdev_
 The virtual device.

CORBA::Object_var vdev_obj_
 Virtual device CORBA object reference.

T_MediaCtrl * media_ctrl_
 Media controller.

CORBA::Object_var media_ctrl_obj_

pid_t pid_
 pid of this process

char host_ [MAXHOSTNAMELEN]
 Name of the host.

CORBA::ORB_ptr orb_

PortableServer::POA_ptr poa_


Detailed Description

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
class TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >

Helper class for the child process created in TAO_AV_Endpoint_Process_Strategy.

Constructor & Destructor Documentation

◆ TAO_AV_Child_Process()

template<class T_StreamEndpoint_B , class T_VDev , class T_MediaCtrl >
TAO_AV_Child_Process< T_StreamEndpoint_B, T_VDev, T_MediaCtrl >::TAO_AV_Child_Process ( )

Constructor.

◆ ~TAO_AV_Child_Process()

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::~TAO_AV_Child_Process ( )
virtual

Destructor.

Member Function Documentation

◆ activate_objects()

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
int TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::activate_objects ( int argc,
ACE_TCHAR ** argv )
protected

Creates the objects and inserts them into the Naming Service, so the parent can pick the IOR's and return them to the client

◆ activate_with_poa()

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
char * TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::activate_with_poa ( PortableServer::Servant servant)
protected

activate the servant with the poa

◆ bind_to_naming_service()

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
int TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::bind_to_naming_service ( )
protected

Binds to the naming service.

◆ init()

template<class T_StreamEndpoint_B , class T_VDev , class T_MediaCtrl >
int TAO_AV_Child_Process< T_StreamEndpoint_B, T_VDev, T_MediaCtrl >::init ( int argc,
ACE_TCHAR ** argv,
CORBA::ORB_ptr orb,
PortableServer::POA_ptr poa )

Initializes the ORB, creates and activates the T_StreamEndpoint, T_VDev, T_MediaCtrl in the POA

◆ make_mediactrl()

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
int TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::make_mediactrl ( T_MediaCtrl *& media_ctrl)
protectedvirtual

Bridge method to create a media_ctrl, a la Acceptor. Applications can override this

◆ make_stream_endpoint()

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
int TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::make_stream_endpoint ( T_StreamEndpoint *& stream_endpoint)
protectedvirtual

Bridge method to create a stream_endpoint, a la Acceptor. Applications can override this

◆ make_vdev()

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
int TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::make_vdev ( T_VDev *& vdev)
protectedvirtual

Bridge method to create a vdev, a la Acceptor. Applications can override this

◆ register_stream_endpoint()

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
int TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::register_stream_endpoint ( )
protected

Registers stream_endpoint with the naming service.

◆ register_vdev()

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
int TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::register_vdev ( )
protected

Registers vdev with the naming service.

◆ release_semaphore()

template<class T_StreamEndpoint_B , class T_VDev , class T_MediaCtrl >
int TAO_AV_Child_Process< T_StreamEndpoint_B, T_VDev, T_MediaCtrl >::release_semaphore ( )
protected

Releases the semaphore on which the parent is waiting on.

◆ run()

template<class T_StreamEndpoint_B , class T_VDev , class T_MediaCtrl >
int TAO_AV_Child_Process< T_StreamEndpoint_B, T_VDev, T_MediaCtrl >::run ( ACE_Time_Value * tv = 0)

runs the ORB event loop

◆ unbind_names()

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
int TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::unbind_names ( )
protected

Removes the vdev and streamendpoint names from the naming service.

Member Data Documentation

◆ host_

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
char TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::host_[MAXHOSTNAMELEN]
protected

Name of the host.

◆ media_ctrl_

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
T_MediaCtrl* TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::media_ctrl_
protected

Media controller.

◆ media_ctrl_obj_

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
CORBA::Object_var TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::media_ctrl_obj_
protected

◆ naming_context_

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
CosNaming::NamingContext_var TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::naming_context_
protected

The root Naming Context of the TAO naming service.

◆ orb_

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
CORBA::ORB_ptr TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::orb_
protected

◆ pid_

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
pid_t TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::pid_
protected

pid of this process

◆ poa_

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
PortableServer::POA_ptr TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::poa_
protected

◆ stream_endpoint_

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
T_StreamEndpoint* TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::stream_endpoint_
protected

The stream endpoint member.

◆ stream_endpoint_name_

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
CosNaming::Name TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::stream_endpoint_name_
protected

Name of the stream_endpoint.

◆ vdev_

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
T_VDev* TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::vdev_
protected

The virtual device.

◆ vdev_name_

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
CosNaming::Name TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::vdev_name_
protected

Name of the vdev.

◆ vdev_obj_

template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
CORBA::Object_var TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::vdev_obj_
protected

Virtual device CORBA object reference.

The documentation for this class was generated from the following files:
