Reactive strategy base class. More...
#include <Endpoint_Strategy_T.h>
Inheritance diagram for TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >:

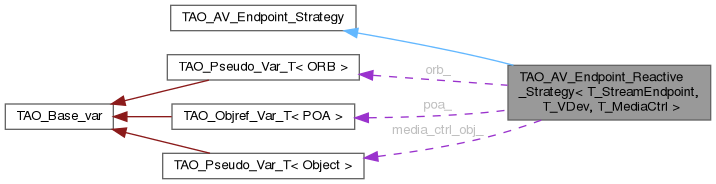

Collaboration diagram for TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >:
Protected Member Functions | |
| TAO_AV_Endpoint_Reactive_Strategy () | |
| Constructor. | |
| virtual | ~TAO_AV_Endpoint_Reactive_Strategy () |
| Destructor. | |
| virtual int | activate () |
| creates and activates the streamendpoint, vdev, and mediacontrol | |
| virtual int | activate_stream_endpoint ()=0 |
| activates the stream_endpoint with the POA | |
| virtual int | activate_vdev () |
| activates the vdev with the POA | |
| virtual int | activate_mediactrl () |
| activates the media controller with the POA | |
| virtual int | make_vdev (T_VDev *&vdev) |
| virtual int | make_stream_endpoint (T_StreamEndpoint *&stream_endpoint) |
| virtual int | make_mediactrl (T_MediaCtrl *&media_ctrl) |
| char * | activate_with_poa (PortableServer::Servant servant) |
Protected Attributes | |
| CORBA::ORB_var | orb_ |
| PortableServer::POA_var | poa_ |
| CORBA::Object_var | media_ctrl_obj_ |
| T_StreamEndpoint * | stream_endpoint_a_servant_ |
| T_StreamEndpoint * | stream_endpoint_b_servant_ |
| T_VDev * | vdev_servant_ |
| T_MediaCtrl * | media_ctrl_servant_ |
 Protected Attributes inherited from TAO_AV_Endpoint_Strategy | |
| AVStreams::StreamEndPoint_A_var | stream_endpoint_a_ |
| The "A" stream endpoint. | |
| AVStreams::StreamEndPoint_B_var | stream_endpoint_b_ |
| The "B" stream endpoint. | |
| AVStreams::VDev_var | vdev_ |
| The vdev. | |
Additional Inherited Members | |
| Public Member Functions inherited from TAO_AV_Endpoint_Strategy | |
| TAO_AV_Endpoint_Strategy () | |
| Constructor. | |
| virtual | ~TAO_AV_Endpoint_Strategy () |
| Destructor. | |
| virtual int | create_A (AVStreams::StreamEndPoint_A_ptr &stream_endpoint, AVStreams::VDev_ptr &vdev) |
| Called by the MMDevice, when it needs to create an A type endpoint. | |
| virtual int | create_B (AVStreams::StreamEndPoint_B_ptr &stream_endpoint, AVStreams::VDev_ptr &vdev) |
| Called by the MMDevice, when it needs to create an B type endpoint. | |
Detailed Description
template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
class TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >
class TAO_AV_Endpoint_Reactive_Strategy< T_StreamEndpoint, T_VDev, T_MediaCtrl >
Reactive strategy base class.
Constructor & Destructor Documentation
◆ TAO_AV_Endpoint_Reactive_Strategy()
template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
|
protected |
Constructor.
◆ ~TAO_AV_Endpoint_Reactive_Strategy()
template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
|
protectedvirtual |
Destructor.
Member Function Documentation
◆ activate()
template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
|
protectedvirtual |
creates and activates the streamendpoint, vdev, and mediacontrol
◆ activate_mediactrl()
template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
|
protectedvirtual |
activates the media controller with the POA
◆ activate_stream_endpoint()
template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
|
protectedpure virtual |
activates the stream_endpoint with the POA
Implemented in TAO_AV_Endpoint_Reactive_Strategy_A< T_StreamEndpoint, T_VDev, T_MediaCtrl >, and TAO_AV_Endpoint_Reactive_Strategy_B< T_StreamEndpoint, T_Vdev, T_MediaCtrl >.
◆ activate_vdev()
template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
|
protectedvirtual |
activates the vdev with the POA
◆ activate_with_poa()
template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
|
protected |
◆ make_mediactrl()
template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
|
protectedvirtual |
Bridge method to create a media_ctrl, a la Acceptor. Applications can override this
◆ make_stream_endpoint()
template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
|
protectedvirtual |
Bridge method to create a stream_endpoint, a la Acceptor. Applications can override this
◆ make_vdev()
template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
|
protectedvirtual |
Bridge method to create a vdev, a la Acceptor. Applications can override this
Member Data Documentation
◆ media_ctrl_obj_
template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
|
protected |
◆ media_ctrl_servant_
template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
|
protected |
◆ orb_
template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
|
protected |
◆ poa_
template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
|
protected |
◆ stream_endpoint_a_servant_
template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
|
protected |
◆ stream_endpoint_b_servant_
template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
|
protected |
◆ vdev_servant_
template<class T_StreamEndpoint , class T_VDev , class T_MediaCtrl >
|
protected |
The documentation for this class was generated from the following files:
