AVStreams::FlowEndPoint Interface Reference

import <AVStreams.idl;

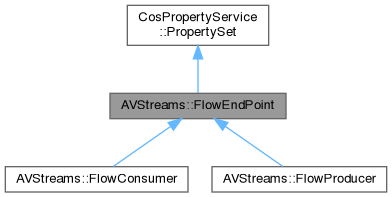

Inheritance diagram for AVStreams::FlowEndPoint:

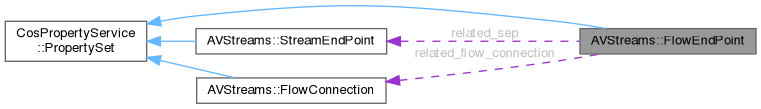

Collaboration diagram for AVStreams::FlowEndPoint:

Public Member Functions
boolean	lock ()
void	unlock ()
void	stop ()
void	start ()
void	destroy ()
FlowEndPoint	get_connected_fep () raises (notConnected,AVStreams::notSupported)
boolean	use_flow_protocol (in string fp_name, in any fp_settings) raises (AVStreams::FPError, AVStreams::notSupported)
	syntax of fp_name is <flowProtocol>
void	set_format (in string format) raises (AVStreams::notSupported)
void	set_dev_params (in CosPropertyService::Properties new_settings) raises (PropertyException, AVStreams::streamOpFailed)
void	set_protocol_restriction (in AVStreams::protocolSpec the_spec) raises (AVStreams::notSupported)
boolean	is_fep_compatible (in FlowEndPoint fep) raises (formatMismatch, deviceQosMismatch)
boolean	set_peer (in FlowConnection the_fc, in FlowEndPoint the_peer_fep, inout AVStreams::QoS the_qos) raises (AVStreams::QoSRequestFailed, AVStreams::streamOpFailed)
boolean	set_Mcast_peer (in FlowConnection the_fc, in AVStreams::MCastConfigIf a_mcastconfigif, inout AVStreams::QoS the_qos) raises (AVStreams::QoSRequestFailed)
boolean	connect_to_peer (inout AVStreams::QoS the_qos, in string address, in string use_flow_protocol) raises (failedToConnect,AVStreams::FPError, AVStreams::QoSRequestFailed)
string	go_to_listen (inout AVStreams::QoS the_qos, in boolean is_mcast, in FlowEndPoint peer, inout string flowProtocol) raises (failedToListen, AVStreams::FPError, AVStreams::QoSRequestFailed)

Public Attributes
attribute AVStreams::StreamEndPoint	related_sep
	Default is a nil object reference.
attribute FlowConnection	related_flow_connection

Member Function Documentation

connect_to_peer()

boolean AVStreams::FlowEndPoint::connect_to_peer	(	inout AVStreams::QoS	the_qos,
		in string	address,
		in string	use_flow_protocol )
raises	(	failedToConnect,
		AVStreams::FPError,
		AVStreams::QoSRequestFailed )

destroy()

void AVStreams::FlowEndPoint::destroy

(

)

get_connected_fep()

FlowEndPoint AVStreams::FlowEndPoint::get_connected_fep	(		)
raises	(	notConnected,
		AVStreams::notSupported )

go_to_listen()

string AVStreams::FlowEndPoint::go_to_listen	(	inout AVStreams::QoS	the_qos,
		in boolean	is_mcast,
		in FlowEndPoint	peer,
		inout string	flowProtocol )
raises	(	failedToListen,
		AVStreams::FPError,
		AVStreams::QoSRequestFailed )

Needs to know its peer to choose its protocol correctly Also to ask for a reverse channel for credit-based flow control, if one is required

is_fep_compatible()

boolean AVStreams::FlowEndPoint::is_fep_compatible	(	in FlowEndPoint	fep	)
raises	(	formatMismatch,
		deviceQosMismatch )

lock()

boolean AVStreams::FlowEndPoint::lock

(

)

set_dev_params()

void AVStreams::FlowEndPoint::set_dev_params	(	in CosPropertyService::Properties	new_settings	)
raises	(	PropertyException,
		AVStreams::streamOpFailed )

set_format()

void AVStreams::FlowEndPoint::set_format	(	in string	format	)
raises	(	AVStreams::notSupported )

set_format() initializes ��format�� as current media format e.g. MPEG.

set_Mcast_peer()

boolean AVStreams::FlowEndPoint::set_Mcast_peer	(	in FlowConnection	the_fc,
		in AVStreams::MCastConfigIf	a_mcastconfigif,
		inout AVStreams::QoS	the_qos )
raises	(	AVStreams::QoSRequestFailed )

set_peer()

boolean AVStreams::FlowEndPoint::set_peer	(	in FlowConnection	the_fc,
		in FlowEndPoint	the_peer_fep,
		inout AVStreams::QoS	the_qos )
raises	(	AVStreams::QoSRequestFailed,
		AVStreams::streamOpFailed )

set_protocol_restriction()

void AVStreams::FlowEndPoint::set_protocol_restriction	(	in AVStreams::protocolSpec	the_spec	)
raises	(	AVStreams::notSupported )

start()

void AVStreams::FlowEndPoint::start

(

)

stop()

void AVStreams::FlowEndPoint::stop

(

)

unlock()

void AVStreams::FlowEndPoint::unlock

(

)

use_flow_protocol()

boolean AVStreams::FlowEndPoint::use_flow_protocol	(	in string	fp_name,
		in any	fp_settings )
raises	(	AVStreams::FPError,
		AVStreams::notSupported )

syntax of fp_name is <flowProtocol>

Member Data Documentation

related_flow_connection

attribute FlowConnection AVStreams::FlowEndPoint::related_flow_connection

related_sep

attribute AVStreams::StreamEndPoint AVStreams::FlowEndPoint::related_sep

Default is a nil object reference.

---

The documentation for this interface was generated from the following file:

• AVStreams.idl
