Object created by TAO::LocateRequest_Invocation_Adapter to create and send LocateRequest invocation. More...

#include <LocateRequest_Invocation.h>

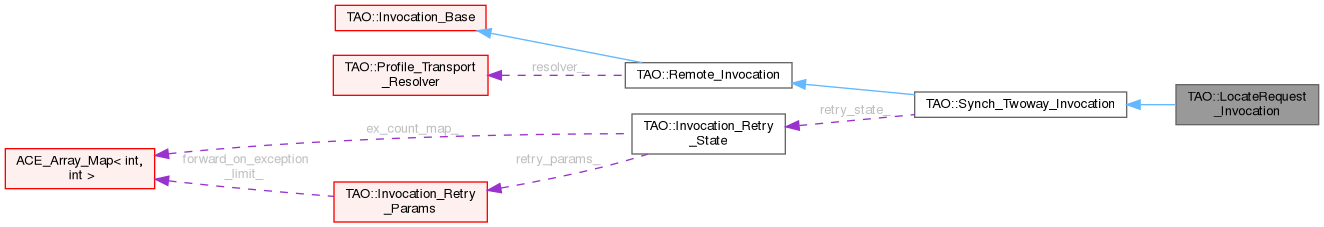

Inheritance diagram for TAO::LocateRequest_Invocation:

[legend]

Collaboration diagram for TAO::LocateRequest_Invocation:

[legend]

Public Member Functions
	LocateRequest_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail)

Invocation_Status	invoke (ACE_Time_Value *max_wait_time)
	Start the invocation.

Public Member Functions inherited from TAO::Synch_Twoway_Invocation
	Synch_Twoway_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail, bool response_expected=true)
	Constructor used by TAO::Invocation_Adapter.

Invocation_Status	remote_twoway (ACE_Time_Value *max_wait_time)

void	set_retry_state (Invocation_Retry_State *retry_state)

Public Member Functions inherited from TAO::Remote_Invocation
	Remote_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail, bool response_expected)

void	_tao_byte_order (int byte_order)

int	_tao_byte_order ()

Public Member Functions inherited from TAO::Invocation_Base
virtual	~Invocation_Base ()

TAO_Stub *	stub () const
	Accessor and mutator methods.

CORBA::Object_ptr	forwarded_reference ()

void	forwarded_reference (CORBA::Object_ptr o)

TAO_Service_Context &	request_service_context ()
	Accessors for the service context list.

TAO_Service_Context &	reply_service_context ()

CORBA::Object_ptr	steal_forwarded_reference ()
	Return the forwarded object location by loosing ownership.

CORBA::Object_ptr	effective_target () const
	Return the effective target of the invocation.

CORBA::Object_ptr	target () const
	Return the target object.

CORBA::Boolean	response_expected () const
	Does this invocation return a response?

GIOP::ReplyStatusType	reply_status () const
	Accessor of reply_status of the invocation.

void	reply_status (GIOP::ReplyStatusType s)
	Mutator of reply_status of the invocation.

TAO_Operation_Details &	operation_details ()
	The operaton details of the invocation.

Private Member Functions
Invocation_Status	check_reply (TAO_Synch_Reply_Dispatcher &rd)
	Helper to check the reply status.

Additional Inherited Members
Protected Member Functions inherited from TAO::Synch_Twoway_Invocation
virtual Invocation_Status	handle_user_exception (TAO_InputCDR &cdr)

Invocation_Status	location_forward (TAO_InputCDR &cdr)
	Helper method used to handle location forwarded replies.

Invocation_Status	handle_system_exception (TAO_InputCDR &cdr)

Invocation_Status	wait_for_reply (ACE_Time_Value *max_wait_time, TAO_Synch_Reply_Dispatcher &rd, TAO_Bind_Dispatcher_Guard &bd)
	As the name suggests waits for a reply from the remote ORB.

Protected Member Functions inherited from TAO::Remote_Invocation
void	init_target_spec (TAO_Target_Specification &spec, TAO_OutputCDR &output)
	Initialize the spec.

void	write_header (TAO_OutputCDR &out_stream)
	Write the GIOP header into the stream.

void	marshal_data (TAO_OutputCDR &cdr)
	Marshal the arguments into the stream.

Invocation_Status	send_message (TAO_OutputCDR &cdr, TAO_Message_Semantics message_semantics, ACE_Time_Value *max_wait_time)
	Write the message onto the socket.

Protected Member Functions inherited from TAO::Invocation_Base
	Invocation_Base (CORBA::Object_ptr otarget, CORBA::Object_ptr target, TAO_Stub *stub, TAO_Operation_Details &op, bool response_expected, bool request_is_remote)

Protected Attributes inherited from TAO::Synch_Twoway_Invocation
Invocation_Retry_State *	retry_state_

Protected Attributes inherited from TAO::Remote_Invocation
Profile_Transport_Resolver &	resolver_
	Our resolver.

int	byte_order_
	Intended byte order for message output stream.

Protected Attributes inherited from TAO::Invocation_Base
TAO_Operation_Details &	details_
	The operation details on which we are operating on.

CORBA::Object_var	forwarded_to_
	Forwarded object reference.

bool	response_expected_
	Is response expected?

GIOP::ReplyStatusType	reply_status_
	A GIOP reply status of the invocation.

Detailed Description

Object created by TAO::LocateRequest_Invocation_Adapter to create and send LocateRequest invocation.

Constructor & Destructor Documentation

◆ LocateRequest_Invocation()

TAO::LocateRequest_Invocation::LocateRequest_Invocation	(	CORBA::Object_ptr	otarget,
		Profile_Transport_Resolver &	resolver,
		TAO_Operation_Details &	detail )

Parameters

otarget	The target on which this invocation was started.
resolver	Container of the profile and transport on which this invocation is on
detail	Operation details of the invocation on target. This is of no practical importance since it is not used in this class. This is just to keep our base class happy.

Member Function Documentation

◆ check_reply()

Invocation_Status TAO::LocateRequest_Invocation::check_reply ( TAO_Synch_Reply_Dispatcher & rd )

private

Helper to check the reply status.

◆ invoke()

Invocation_Status TAO::LocateRequest_Invocation::invoke ( ACE_Time_Value * max_wait_time )

Start the invocation.

The documentation for this class was generated from the following files:
