CORBA::Exception Class Reference

Exception. More...

#include <Exception.h>

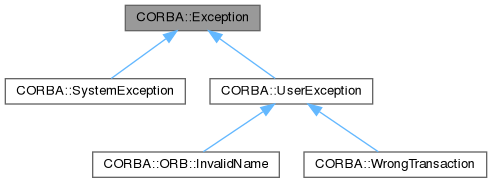

Inheritance diagram for CORBA::Exception:

Collaboration diagram for CORBA::Exception:

Public Member Functions
	Exception (const Exception &src)
	Copy constructor.
virtual	~Exception ()=default
	Destructor.
virtual void	_raise () const =0
virtual const char *	_rep_id () const
	Return the repository ID of the Exception.
virtual const char *	_name () const
	Return the name of the Exception.
virtual CORBA::TypeCode_ptr	_tao_type () const =0
	Will be overridden in the concrete derived classes.
void	_tao_print_exception (const char *info, FILE *f=stdout) const
	Print the exception to output determined by f.
virtual ACE_CString	_info () const =0
virtual void	_tao_encode (TAO_OutputCDR &cdr) const =0
virtual void	_tao_decode (TAO_InputCDR &cdr)=0
virtual CORBA::Exception *	_tao_duplicate () const =0
	Deep copy.

Static Public Member Functions
static Exception *	_downcast (Exception *x)
static Exception const *	_downcast (Exception const *x)
static void	_tao_any_destructor (void *)
	Used in the non-copying Any insertion operator.

Protected Member Functions
	Exception ()=default
	Default constructor.
Exception &	operator= (const Exception &src)
	Assignment operator.
	Exception (const char *repository_id, const char *local_name)
	Construct from a repository id.

Private Attributes
CORBA::String_var	id_
	Repository Id.
CORBA::String_var	name_
	Local name.

Detailed Description

Exception.

CORBA2-specified exception hierarchy. All exceptions have a type (represented by a TypeCode) and a widely scoped type ID (in the TypeCode) that are generated by any OMG-IDL compiler and available through the Interface Repository. Think of it as a "globally scoped" name distinguishing each exception.

Todo

According to the OMG CORBA C++ Mapping version 1.1, the copy constructors should be moved to "protected" section in class declarations. Since the current MS Visual C++ 7.1 compiler will cause some problems to TAO's exception mechanism, we defer doing this until we drop support for MSVC++ 7.1. Maybe there is another solution, have to test that later.

Constructor & Destructor Documentation

Exception() [1/3]

CORBA::Exception::Exception

(

const Exception &

src

)

Copy constructor.

Note

This constructor should be protected, but VC7.1 at warning level 4 complains about the inaccessible copy constructor preventing it from being caught. However, that probably isn't true for most cases since CORBA exceptions are typically caught by reference, not by copy.

~Exception()

virtual CORBA::Exception::~Exception ( )

virtualdefault

Destructor.

Exception() [2/3]

CORBA::Exception::Exception ( )

protecteddefault

Default constructor.

Exception() [3/3]

CORBA::Exception::Exception ( const char * repository_id, const char * local_name )

protected

Construct from a repository id.

Member Function Documentation

_downcast() [1/2]

CORBA::Exception * CORBA::Exception::_downcast ( CORBA::Exception * x )

static

_downcast() [2/2]

CORBA::Exception const * CORBA::Exception::_downcast ( CORBA::Exception const * x )

static

_info()

virtual ACE_CString CORBA::Exception::_info ( ) const

pure virtual

Returns a string containing information about the exception. This function is not CORBA compliant.

Implemented in CORBA::SystemException, and CORBA::UserException.

_name()

const char * CORBA::Exception::_name ( ) const

virtual

Return the name of the Exception.

_raise()

virtual void CORBA::Exception::_raise ( ) const

pure virtual

Implemented in CORBA::ORB::InvalidName, CORBA::WrongTransaction, CORBA::SystemException, and CORBA::UserException.

_rep_id()

const char * CORBA::Exception::_rep_id ( ) const

virtual

Return the repository ID of the Exception.

_tao_any_destructor()

void CORBA::Exception::_tao_any_destructor ( void * x )

static

Used in the non-copying Any insertion operator.

_tao_decode()

virtual void CORBA::Exception::_tao_decode ( TAO_InputCDR & cdr )

pure virtual

Implemented in CORBA::ORB::InvalidName, CORBA::WrongTransaction, and CORBA::SystemException.

_tao_duplicate()

virtual CORBA::Exception * CORBA::Exception::_tao_duplicate ( ) const

pure virtual

Deep copy.

The following operation is used in the implementation of it performs a deep copy of the exception, normally it is implemented as:

class SomeException : public // Derives from CORBA::Exception
{
public:
  CORBA::Exception *_tao_duplicate () override const
  {
    CORBA::Exception *result {};
    ACE_NEW_RETURN (
        result,
        SomeException (*this),
        nullptr);
    return result;
  }
};

Implemented in CORBA::ORB::InvalidName, CORBA::SystemException, and CORBA::WrongTransaction.

_tao_encode()

virtual void CORBA::Exception::_tao_encode ( TAO_OutputCDR & cdr ) const

pure virtual

Implemented in CORBA::ORB::InvalidName, CORBA::WrongTransaction, and CORBA::SystemException.

_tao_print_exception()

void CORBA::Exception::_tao_print_exception	(	const char *	info,
		FILE *	f = stdout ) const

Print the exception to output determined by f.

Note

This method is TAO-specific.

_tao_type()

virtual CORBA::TypeCode_ptr CORBA::Exception::_tao_type ( ) const

pure virtual

Will be overridden in the concrete derived classes.

Implemented in CORBA::UserException, and CORBA::WrongTransaction.

operator=()

CORBA::Exception & CORBA::Exception::operator= ( const Exception & src )

protected

Assignment operator.

Member Data Documentation

id_

CORBA::String_var CORBA::Exception::id_

private

Repository Id.

name_

CORBA::String_var CORBA::Exception::name_

private

Local name.

---

The documentation for this class was generated from the following files:

• Exception.h
• Exception.cpp
• Exception.inl
