Public Types | Public Member Functions | Public Attributes | Protected Types | Protected Member Functions | Private Attributes | List of all members
ACE_Connector< SVC_HANDLER, PEER_CONNECTOR > Class Template Reference

Generic factory for actively connecting clients and creating service handlers (SVC_HANDLERs). More...

#include <Connector.h>

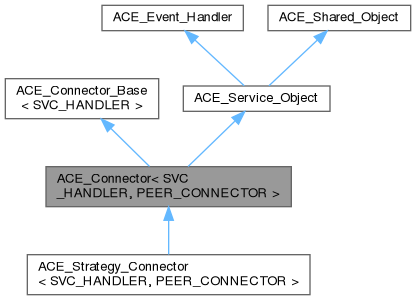

Inheritance diagram for ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >:
Inheritance graph
[legend]

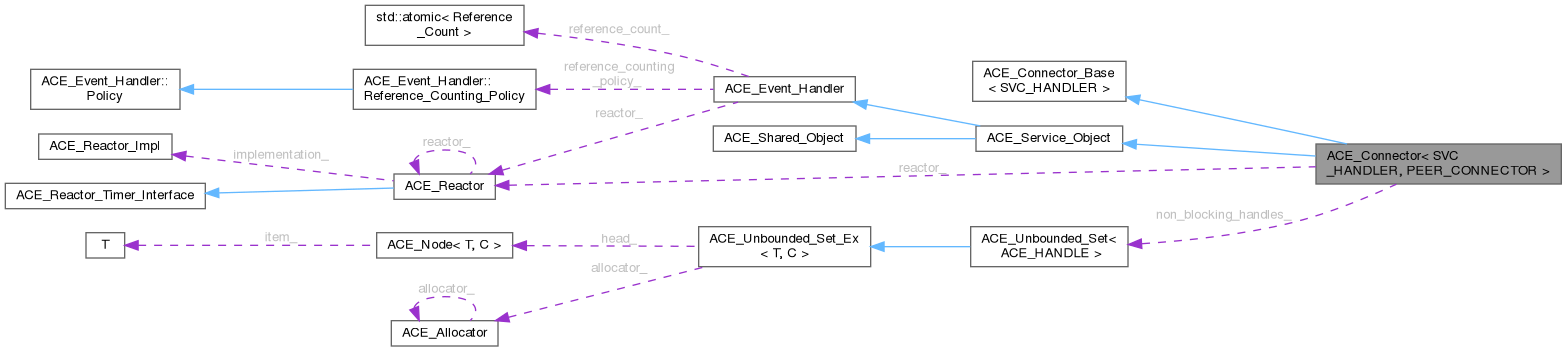

Collaboration diagram for ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >:
Collaboration graph
[legend]

Public Types

typedef SVC_HANDLER::addr_type addr_type

typedef PEER_CONNECTOR connector_type

typedef SVC_HANDLER handler_type

typedef SVC_HANDLER::stream_type stream_type

typedef PEER_CONNECTOR::PEER_ADDR peer_addr_type

typedef PEER_CONNECTOR::PEER_ADDR PEER_ADDR_TYPEDEF

- Public Types inherited from ACE_Event_Handler
enum  {
  LO_PRIORITY = 0 , HI_PRIORITY = 10 , NULL_MASK = 0 , READ_MASK = (1 << 0) ,
  WRITE_MASK = (1 << 1) , EXCEPT_MASK = (1 << 2) , ACCEPT_MASK = (1 << 3) , CONNECT_MASK = (1 << 4) ,
  TIMER_MASK = (1 << 5) , QOS_MASK = (1 << 6) , GROUP_QOS_MASK = (1 << 7) , SIGNAL_MASK = (1 << 8) ,
  ALL_EVENTS_MASK , RWE_MASK , DONT_CALL = (1 << 9)
}

enum  { ACE_EVENT_HANDLER_NOT_RESUMED = -1 , ACE_REACTOR_RESUMES_HANDLER = 0 , ACE_APPLICATION_RESUMES_HANDLER }

typedef long Reference_Count
 Reference count type.


Public Member Functions

 ACE_Connector (ACE_Reactor *r=ACE_Reactor::instance(), int flags=0)

virtual int open (ACE_Reactor *r=ACE_Reactor::instance(), int flags=0)

virtual ~ACE_Connector ()
 Shutdown a connector and release resources.

virtual int connect (SVC_HANDLER *&svc_handler, const typename PEER_CONNECTOR::PEER_ADDR &remote_addr, const ACE_Synch_Options &synch_options=ACE_Synch_Options::defaults, const typename PEER_CONNECTOR::PEER_ADDR &local_addr=reinterpret_cast< const peer_addr_type & >(peer_addr_type::sap_any), int reuse_addr=0, int flags=O_RDWR, int perms=0)

virtual int connect (SVC_HANDLER *&svc_handler_hint, SVC_HANDLER *&svc_handler, const typename PEER_CONNECTOR::PEER_ADDR &remote_addr, const ACE_Synch_Options &synch_options=ACE_Synch_Options::defaults, const typename PEER_CONNECTOR::PEER_ADDR &local_addr=reinterpret_cast< const peer_addr_type & >(peer_addr_type::sap_any), int reuse_addr=0, int flags=O_RDWR, int perms=0)

virtual int connect_n (size_t n, SVC_HANDLER *svc_handlers[], typename PEER_CONNECTOR::PEER_ADDR remote_addrs[], ACE_TCHAR *failed_svc_handlers=0, const ACE_Synch_Options &synch_options=ACE_Synch_Options::defaults)

virtual int cancel (SVC_HANDLER *svc_handler)

virtual int close ()

virtual PEER_CONNECTORconnector () const
 Return the underlying PEER_CONNECTOR object.

virtual void initialize_svc_handler (ACE_HANDLE handle, SVC_HANDLER *svc_handler)
 Initialize Svc_Handler.

virtual void reactor (ACE_Reactor *reactor)
 Set Reactor.

virtual ACE_Reactorreactor () const
 Get Reactor.

void dump () const
 Dump the state of an object.

- Public Member Functions inherited from ACE_Connector_Base< SVC_HANDLER >
virtual ~ACE_Connector_Base ()=default

- Public Member Functions inherited from ACE_Service_Object
 ACE_Service_Object (ACE_Reactor *=0)
 Constructor.

virtual ~ACE_Service_Object ()
 Destructor.

- Public Member Functions inherited from ACE_Event_Handler
virtual ~ACE_Event_Handler ()=default
 Destructor is virtual to enable proper cleanup.

virtual ACE_HANDLE get_handle () const
 Get the I/O handle.

virtual void set_handle (ACE_HANDLE)
 Set the I/O handle.

virtual int priority () const

virtual void priority (int priority)
 Set the priority of the Event_Handler.

virtual int handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
 Called when input events occur (e.g., connection or data).

virtual int handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
 Called when an exceptional events occur (e.g., SIGURG).

virtual int handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int handle_exit (ACE_Process *)
 Called when a process exits.

virtual int handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)

virtual int resume_handler ()

virtual int handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual ACE_Reactor_Timer_Interfacereactor_timer_interface () const
 Get only the reactor's timer related interface.

virtual Reference_Count add_reference ()
 Increment reference count on the handler.

virtual Reference_Count remove_reference ()
 Decrement reference count on the handler.

Reference_Counting_Policyreference_counting_policy ()
 Current Reference_Counting_Policy.

- Public Member Functions inherited from ACE_Shared_Object
 ACE_Shared_Object ()
 Constructor.

virtual ~ACE_Shared_Object ()
 Destructor.


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

- Public Attributes inherited from ACE_Service_Object
 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.


Protected Types

typedef ACE_NonBlocking_Connect_Handler< SVC_HANDLERNBCH

- Protected Types inherited from ACE_Event_Handler
typedef std::atomic< Reference_CountAtomic_Reference_Count
 Typedef for implementation of reference counting.


Protected Member Functions

virtual int make_svc_handler (SVC_HANDLER *&sh)

virtual int connect_svc_handler (SVC_HANDLER *&svc_handler, const typename PEER_CONNECTOR::PEER_ADDR &remote_addr, ACE_Time_Value *timeout, const typename PEER_CONNECTOR::PEER_ADDR &local_addr, int reuse_addr, int flags, int perms)

virtual int connect_svc_handler (SVC_HANDLER *&svc_handler, SVC_HANDLER *&sh_copy, const typename PEER_CONNECTOR::PEER_ADDR &remote_addr, ACE_Time_Value *timeout, const typename PEER_CONNECTOR::PEER_ADDR &local_addr, int reuse_addr, int flags, int perms)

virtual int activate_svc_handler (SVC_HANDLER *svc_handler)

int nonblocking_connect (SVC_HANDLER *, const ACE_Synch_Options &)
 Creates and registers ACE_NonBlocking_Connect_Handler.

virtual int connect_i (SVC_HANDLER *&svc_handler, SVC_HANDLER **sh_copy, const typename PEER_CONNECTOR::PEER_ADDR &remote_addr, const ACE_Synch_Options &synch_options, const typename PEER_CONNECTOR::PEER_ADDR &local_addr, int reuse_addr, int flags, int perms)
 Implementation of the connect methods.

ACE_Unbounded_Set< ACE_HANDLE > & non_blocking_handles ()

virtual int init (int argc, ACE_TCHAR *argv[])

virtual int fini ()
 Calls handle_close() to shutdown the Connector gracefully.

virtual int info (ACE_TCHAR **strp, size_t length) const
 Default version returns address info in buf.

virtual int suspend ()

virtual int resume ()

- Protected Member Functions inherited from ACE_Event_Handler
 ACE_Event_Handler (ACE_Reactor *=nullptr, int priority=ACE_Event_Handler::LO_PRIORITY)
 Force ACE_Event_Handler to be an abstract base class.


Private Attributes

PEER_CONNECTOR connector_
 This is the peer connector factory.

int flags_

ACE_Reactorreactor_
 Pointer to the Reactor.

ACE_Unbounded_Set< ACE_HANDLEnon_blocking_handles_
 Handle set representing the non-blocking connects in progress.


Additional Inherited Members

- Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN read_adapter (void *event_handler)

static int register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
 Performs the inverse of the register_stdin_handler() method.

- Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count reference_count_
 Reference count.


Detailed Description

template<typename SVC_HANDLER, typename PEER_CONNECTOR>
class ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >

Generic factory for actively connecting clients and creating service handlers (SVC_HANDLERs).

Implements the strategy for actively establishing connections with clients. Both blocking and non-blocking connects are supported. Moreover, non-blocking connects support timeouts.

An ACE_Connector is parameterized by concrete types that conform to the interfaces of SVC_HANDLER and PEER_CONNECTOR described below.

Template Parameters
SVC_HANDLERThe name of the concrete type that performs the application-specific service. The SVC_HANDLER typically inherits from ACE_Svc_Handler.
See also
Svc_Handler.h.
Template Parameters
PEER_CONNECTORThe name of the class that implements the PEER_CONNECTOR endpoint (e.g., ACE_SOCK_Connector) to passively establish connections. A PEER_CONNECTOR implementation must provide a PEER_STREAM and PEER_ADDR trait to identify the type of stream (e.g., ACE_SOCK_Stream) and type of address (e.g., ACE_INET_Addr) used by the endpoint.

Member Typedef Documentation

◆ addr_type

typedef SVC_HANDLER::addr_type ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::addr_type

◆ connector_type

◆ handler_type

◆ NBCH

◆ peer_addr_type

typedef PEER_CONNECTOR::PEER_ADDR ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::peer_addr_type

◆ PEER_ADDR_TYPEDEF

typedef PEER_CONNECTOR::PEER_ADDR ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::PEER_ADDR_TYPEDEF

◆ stream_type

typedef SVC_HANDLER::stream_type ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::stream_type

Constructor & Destructor Documentation

◆ ACE_Connector()

Initialize a connector. flags indicates how SVC_HANDLER's should be initialized prior to being activated. Right now, the only flag that is processed is ACE_NONBLOCK, which enabled non-blocking I/O on the SVC_HANDLER when it is opened.

◆ ~ACE_Connector()

Shutdown a connector and release resources.

Member Function Documentation

◆ activate_svc_handler()

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::activate_svc_handler ( SVC_HANDLER * svc_handler)
protectedvirtual

Bridge method for activating a svc_handler with the appropriate concurrency strategy. The default behavior of this method is to activate the SVC_HANDLER by calling its <open> method (which allows the SVC_HANDLER to define its own concurrency strategy). However, subclasses can override this strategy to do more sophisticated concurrency activations (such as creating the SVC_HANDLER as an "active object" via multi-threading or multi-processing).

Reimplemented in ACE_Strategy_Connector< SVC_HANDLER, PEER_CONNECTOR >.

◆ cancel()

Cancel the svc_handler that was started asynchronously. Note that this is the only case when the Connector does not actively close the svc_handler. It is left up to the caller of <cancel> to decide the fate of the svc_handler.

◆ close()

Close down the Connector. All pending non-blocking connects are canceled and the corresponding svc_handler is closed.

Reimplemented in ACE_Strategy_Connector< SVC_HANDLER, PEER_CONNECTOR >.

◆ connect() [1/2]

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::connect ( SVC_HANDLER *& svc_handler,
const typename PEER_CONNECTOR::PEER_ADDR & remote_addr,
const ACE_Synch_Options & synch_options = ACE_Synch_Options::defaults,
const typename PEER_CONNECTOR::PEER_ADDR & local_addr = reinterpret_cast<const peer_addr_type &>(peer_addr_type::sap_any),
int reuse_addr = 0,
int flags = O_RDWR,
int perms = 0 )
virtual

Initiate connection of svc_handler to peer at remote_addr using synch_options. If the caller wants to designate the selected local_addr they can (and can also insist that the local_addr be reused by passing a value reuse_addr == 1). flags and perms can be used to pass any flags that are needed to perform specific operations such as opening a file within connect with certain permissions. If the connection fails the <close> hook on the svc_handler will be called automatically to prevent resource leaks.

◆ connect() [2/2]

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::connect ( SVC_HANDLER *& svc_handler_hint,
SVC_HANDLER *& svc_handler,
const typename PEER_CONNECTOR::PEER_ADDR & remote_addr,
const ACE_Synch_Options & synch_options = ACE_Synch_Options::defaults,
const typename PEER_CONNECTOR::PEER_ADDR & local_addr = reinterpret_cast<const peer_addr_type &>(peer_addr_type::sap_any),
int reuse_addr = 0,
int flags = O_RDWR,
int perms = 0 )
virtual

This is a variation on the previous <connect> method. On cached connectors the svc_handler_hint variable can be used as a hint for future lookups. Since this variable is modified in the context of the internal cache its use is thread-safe. But the actual svc_handler for the current connection is returned in the second parameter svc_handler. If the connection fails the <close> hook on the svc_handler will be called automatically to prevent resource leaks.

◆ connect_i()

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::connect_i ( SVC_HANDLER *& svc_handler,
SVC_HANDLER ** sh_copy,
const typename PEER_CONNECTOR::PEER_ADDR & remote_addr,
const ACE_Synch_Options & synch_options,
const typename PEER_CONNECTOR::PEER_ADDR & local_addr,
int reuse_addr,
int flags,
int perms )
protectedvirtual

Implementation of the connect methods.

◆ connect_n()

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::connect_n ( size_t n,
SVC_HANDLER * svc_handlers[],
typename PEER_CONNECTOR::PEER_ADDR remote_addrs[],
ACE_TCHAR * failed_svc_handlers = 0,
const ACE_Synch_Options & synch_options = ACE_Synch_Options::defaults )
virtual

Initiate connection of n svc_handlers to peers at remote_addrs using synch_options. Returns -1 if failure occurs and 0 otherwise. If failed_svc_handlers is non-NULL, a 1 is placed in the corresponding index of failed_svc_handlers for each <svc_handlers[i]> that failed to connect, else a 0 is placed in that index.

◆ connect_svc_handler() [1/2]

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::connect_svc_handler ( SVC_HANDLER *& svc_handler,
const typename PEER_CONNECTOR::PEER_ADDR & remote_addr,
ACE_Time_Value * timeout,
const typename PEER_CONNECTOR::PEER_ADDR & local_addr,
int reuse_addr,
int flags,
int perms )
protectedvirtual

Bridge method for connecting the svc_handler to the remote_addr. The default behavior delegates to the <PEER_CONNECTOR::connect>.

Reimplemented in ACE_Strategy_Connector< SVC_HANDLER, PEER_CONNECTOR >.

◆ connect_svc_handler() [2/2]

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::connect_svc_handler ( SVC_HANDLER *& svc_handler,
SVC_HANDLER *& sh_copy,
const typename PEER_CONNECTOR::PEER_ADDR & remote_addr,
ACE_Time_Value * timeout,
const typename PEER_CONNECTOR::PEER_ADDR & local_addr,
int reuse_addr,
int flags,
int perms )
protectedvirtual

◆ connector()

Return the underlying PEER_CONNECTOR object.

◆ dump()

Dump the state of an object.

◆ fini()

Calls handle_close() to shutdown the Connector gracefully.

Reimplemented from ACE_Shared_Object.

◆ info()

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::info ( ACE_TCHAR ** strp,
size_t length ) const
protectedvirtual

Default version returns address info in buf.

Reimplemented from ACE_Shared_Object.

◆ init()

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::init ( int argc,
ACE_TCHAR * argv[] )
protectedvirtual

Default version does no work and returns -1. Must be overloaded by application developer to do anything meaningful.

Reimplemented from ACE_Shared_Object.

◆ initialize_svc_handler()

void ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::initialize_svc_handler ( ACE_HANDLE handle,
SVC_HANDLER * svc_handler )
virtual

Initialize Svc_Handler.

Implements ACE_Connector_Base< SVC_HANDLER >.

◆ make_svc_handler()

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::make_svc_handler ( SVC_HANDLER *& sh)
protectedvirtual

Bridge method for creating a SVC_HANDLER. The default is to create a new SVC_HANDLER only if sh == 0, else sh is unchanged. However, subclasses can override this policy to perform SVC_HANDLER creation in any way that they like (such as creating subclass instances of SVC_HANDLER, using a singleton, dynamically linking the handler, etc.). Returns -1 if failure, else 0.

Reimplemented in ACE_Strategy_Connector< SVC_HANDLER, PEER_CONNECTOR >.

◆ non_blocking_handles()

ACE_Unbounded_Set< ACE_HANDLE > & ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::non_blocking_handles ( )
protectedvirtual

Return the handle set representing the non-blocking connects in progress.

Implements ACE_Connector_Base< SVC_HANDLER >.

◆ nonblocking_connect()

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::nonblocking_connect ( SVC_HANDLER * sh,
const ACE_Synch_Options & synch_options )
protected

Creates and registers ACE_NonBlocking_Connect_Handler.

◆ open()

Initialize a connector. flags indicates how SVC_HANDLER's should be initialized prior to being activated. Right now, the only flag that is processed is ACE_NONBLOCK, which enabled non-blocking I/O on the SVC_HANDLER when it is opened.

Reimplemented in ACE_Strategy_Connector< SVC_HANDLER, PEER_CONNECTOR >.

◆ reactor() [1/2]

Get Reactor.

Reimplemented from ACE_Event_Handler.

◆ reactor() [2/2]

Set Reactor.

Reimplemented from ACE_Event_Handler.

◆ resume()

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::resume ( )
protectedvirtual

Default version does no work and returns -1. Must be overloaded by application developer to do anything meaningful.

Reimplemented from ACE_Service_Object.

◆ suspend()

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::suspend ( )
protectedvirtual

Default version does no work and returns -1. Must be overloaded by application developer to do anything meaningful.

Reimplemented from ACE_Service_Object.

Member Data Documentation

◆ ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

◆ connector_

This is the peer connector factory.

◆ flags_

Flags that indicate how SVC_HANDLER's should be initialized prior to being activated. Right now, the only flag that is processed is ACE_NONBLOCK, which enabled non-blocking I/O on the SVC_HANDLER when it is opened.

◆ non_blocking_handles_

Handle set representing the non-blocking connects in progress.

◆ reactor_

Pointer to the Reactor.


The documentation for this class was generated from the following files:
