ACE_Utils::UUID Class Reference

#include <UUID.h>

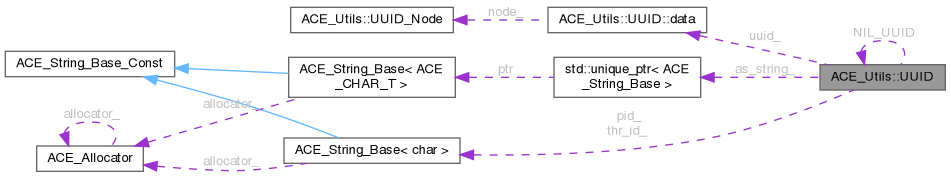

Collaboration diagram for ACE_Utils::UUID:

Classes
struct	data
	Data Members for Class Attributes. More...

Public Types
enum	{ BINARY_SIZE = 16 }
	The size of a binary UUID. More...

Public Member Functions
	UUID ()
	Constructor.
	UUID (const ACE_CString &uuidString)
	Constructs a UUID from a string representation.
	UUID (const UUID &right)
	~UUID ()=default
ACE_UINT32	time_low () const
void	time_low (ACE_UINT32)
ACE_UINT16	time_mid () const
void	time_mid (ACE_UINT16)
ACE_UINT16	time_hi_and_version () const
void	time_hi_and_version (ACE_UINT16)
u_char	clock_seq_hi_and_reserved () const
void	clock_seq_hi_and_reserved (u_char)
u_char	clock_seq_low () const
void	clock_seq_low (u_char)
UUID_Node &	node ()
const UUID_Node &	node () const
void	node (const UUID_Node &node)
ACE_CString *	thr_id ()
void	thr_id (char *)
ACE_CString *	pid ()
void	pid (char *)
const ACE_CString *	to_string () const
	Returns a string representation of the UUID.
void	from_string (const ACE_CString &uuid_string)
	Set the value using a string.
bool	operator== (const UUID &right) const
	Equality Operations.
bool	operator!= (const UUID &right) const
unsigned long	hash () const
	Compute a hash value for the UUID.
const UUID &	operator= (const UUID &rhs)
	Assign an existing UUID to this UUID.

Public Attributes
	ACE_ALLOC_HOOK_DECLARE

Static Public Attributes
static const UUID	NIL_UUID
	NIL UUID.

Private Member Functions
void	init ()
	Initialize the UUID.
void	from_string_i (const ACE_CString &uuid_string)

Private Attributes
struct ACE_Utils::UUID::data	uuid_
ACE_CString	thr_id_
ACE_CString	pid_
std::unique_ptr< ACE_CString >	as_string_

Member Enumeration Documentation

anonymous enum

anonymous enum

The size of a binary UUID.

Enumerator
BINARY_SIZE

Constructor & Destructor Documentation

UUID() [1/3]

ACE_Utils::UUID::UUID ( )

inline

Constructor.

UUID() [2/3]

ACE_Utils::UUID::UUID

(

const ACE_CString &

uuidString

)

Constructs a UUID from a string representation.

UUID() [3/3]

ACE_Utils::UUID::UUID ( const UUID & right )

inline

~UUID()

ACE_Utils::UUID::~UUID ( )

default

Member Function Documentation

clock_seq_hi_and_reserved() [1/2]

u_char ACE_Utils::UUID::clock_seq_hi_and_reserved ( ) const

inline

clock_seq_hi_and_reserved() [2/2]

void ACE_Utils::UUID::clock_seq_hi_and_reserved ( u_char clock_seq_hi_and_reserved )

inline

clock_seq_low() [1/2]

u_char ACE_Utils::UUID::clock_seq_low ( ) const

inline

clock_seq_low() [2/2]

void ACE_Utils::UUID::clock_seq_low ( u_char clock_seq_low )

inline

from_string()

void ACE_Utils::UUID::from_string ( const ACE_CString & uuid_string )

inline

Set the value using a string.

from_string_i()

void ACE_Utils::UUID::from_string_i ( const ACE_CString & uuid_string )

private

Helper method to convert from a string UUID.

Parameters

[in]

uuid_string

String version of UUID.

Special case for the nil UUID.

Support versions 1, 3, and 4 only

hash()

unsigned long ACE_Utils::UUID::hash ( ) const

inline

Compute a hash value for the UUID.

init()

void ACE_Utils::UUID::init ( )

inlineprivate

Initialize the UUID.

node() [1/3]

UUID_Node & ACE_Utils::UUID::node ( )

inline

node() [2/3]

const UUID_Node & ACE_Utils::UUID::node ( ) const

inline

node() [3/3]

void ACE_Utils::UUID::node ( const UUID_Node & node )

inline

operator!=()

bool ACE_Utils::UUID::operator!= ( const UUID & right ) const

inline

operator=()

const UUID & ACE_Utils::UUID::operator=

(

const UUID &

rhs

)

Assign an existing UUID to this UUID.

Todo

We should create an UUID_Ex class for UUIDs that contain the thread id and process id.

operator==()

bool ACE_Utils::UUID::operator== ( const UUID & right ) const

inline

Equality Operations.

pid() [1/2]

ACE_CString * ACE_Utils::UUID::pid ( )

inline

pid() [2/2]

void ACE_Utils::UUID::pid ( char * pid )

inline

thr_id() [1/2]

ACE_CString * ACE_Utils::UUID::thr_id ( )

inline

thr_id() [2/2]

void ACE_Utils::UUID::thr_id ( char * thr_id )

inline

time_hi_and_version() [1/2]

ACE_UINT16 ACE_Utils::UUID::time_hi_and_version ( ) const

inline

time_hi_and_version() [2/2]

void ACE_Utils::UUID::time_hi_and_version ( ACE_UINT16 time_hi_and_version )

inline

time_low() [1/2]

ACE_UINT32 ACE_Utils::UUID::time_low ( ) const

inline

time_low() [2/2]

void ACE_Utils::UUID::time_low ( ACE_UINT32 timelow )

inline

time_mid() [1/2]

ACE_UINT16 ACE_Utils::UUID::time_mid ( ) const

inline

time_mid() [2/2]

void ACE_Utils::UUID::time_mid ( ACE_UINT16 time_mid )

inline

to_string()

const ACE_CString * ACE_Utils::UUID::to_string

(

)

const

Returns a string representation of the UUID.

Member Data Documentation

ACE_ALLOC_HOOK_DECLARE

ACE_Utils::UUID::ACE_ALLOC_HOOK_DECLARE

as_string_

std::unique_ptr<ACE_CString> ACE_Utils::UUID::as_string_

mutableprivate

The string representation of the UUID. This is created and updated only on demand.

NIL_UUID

const UUID ACE_Utils::UUID::NIL_UUID

static

NIL UUID.

pid_

ACE_CString ACE_Utils::UUID::pid_

private

thr_id_

ACE_CString ACE_Utils::UUID::thr_id_

private

uuid_

struct ACE_Utils::UUID::data ACE_Utils::UUID::uuid_

private

---

The documentation for this class was generated from the following files:

• UUID.h
• UUID.cpp
• UUID.inl
