Provides a simple implementation of timers. More...

#include <Timer_List_T.h>

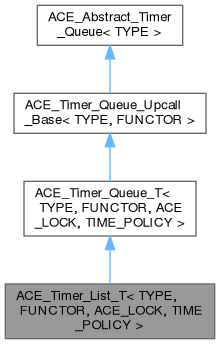

Inheritance diagram for ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >:

[legend]

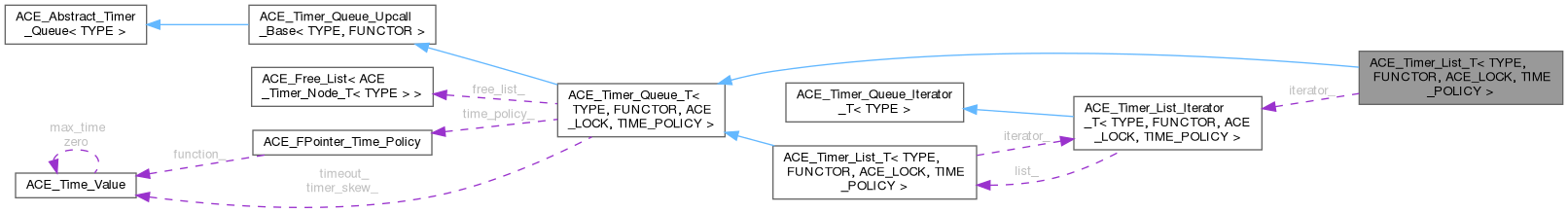

Collaboration diagram for ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >:

[legend]

Public Types
typedef ACE_Timer_List_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >	Iterator
	Type of iterator.

typedef ACE_Timer_Node_T< TYPE >	Node

typedef ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >	Base_Timer_Queue
	Type inherited from.

typedef ACE_Free_List< Node >	FreeList

Public Types inherited from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >
typedef TIME_POLICY	time_policy_t
	Type of time policy.

Public Types inherited from ACE_Abstract_Timer_Queue< TYPE >
typedef ACE_Timer_Queue_Iterator_T< TYPE >	ITERATOR
	Type of Iterator.

Public Member Functions
	ACE_Timer_List_T (FUNCTOR upcall_functor=0, FreeList freelist=0, TIME_POLICY const &time_policy=TIME_POLICY())

virtual	~ACE_Timer_List_T ()
	Destructor.

virtual bool	is_empty () const
	True if queue is empty, else false.

virtual const ACE_Time_Value &	earliest_time () const

virtual int	reset_interval (long timer_id, const ACE_Time_Value &interval)

virtual int	cancel (const TYPE &type, int dont_call_handle_close=1)

virtual int	cancel (long timer_id, const void **act=0, int dont_call_handle_close=1)

virtual int	close ()

virtual ACE_Timer_Queue_Iterator_T< TYPE > &	iter ()
	Returns a pointer to this ACE_Timer_Queue's iterator.

virtual ACE_Timer_Node_T< TYPE > *	remove_first ()
	Removes the earliest node from the queue and returns it.

virtual void	dump () const
	Dump the state of an object.

virtual void	reschedule (ACE_Timer_Node_T< TYPE > *)

virtual ACE_Timer_Node_T< TYPE > *	get_first ()
	Reads the earliest node from the queue and returns it.

Public Member Functions inherited from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >
	ACE_Timer_Queue_T (FUNCTOR upcall_functor=0, ACE_Free_List< ACE_Timer_Node_T< TYPE > > freelist=0, TIME_POLICY const &time_policy=TIME_POLICY())

virtual	~ACE_Timer_Queue_T ()

virtual long	schedule (const TYPE &type, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval=ACE_Time_Value::zero)

virtual int	expire (const ACE_Time_Value &current_time)

virtual int	expire ()

virtual int	expire_single (ACE_Command_Base &pre_dispatch_command)

virtual int	dispatch_info (const ACE_Time_Value &current_time, ACE_Timer_Node_Dispatch_Info_T< TYPE > &info)

virtual ACE_Time_Value	gettimeofday ()

virtual void	gettimeofday (ACE_Time_Value(*gettimeofday)())

ACE_Time_Value	gettimeofday_static ()

void	set_time_policy (TIME_POLICY const &time_policy)

virtual ACE_Time_Value *	calculate_timeout (ACE_Time_Value *max)

virtual ACE_Time_Value *	calculate_timeout (ACE_Time_Value max, ACE_Time_Value the_timeout)

virtual ACE_Time_Value	current_time ()

void	timer_skew (const ACE_Time_Value &skew)
	Set the timer skew for the Timer_Queue.

const ACE_Time_Value &	timer_skew () const
	Get the timer skew for the Timer_Queue.

ACE_LOCK &	mutex ()
	Synchronization variable used by the queue.

virtual void	return_node (ACE_Timer_Node_T< TYPE > *)

void	preinvoke (ACE_Timer_Node_Dispatch_Info_T< TYPE > &info, const ACE_Time_Value &cur_time, const void *&upcall_act)
	This method will call the preinvoke() on <functor>.

void	upcall (ACE_Timer_Node_Dispatch_Info_T< TYPE > &info, const ACE_Time_Value &cur_time)
	This method will call the timeout() on <functor>.

void	postinvoke (ACE_Timer_Node_Dispatch_Info_T< TYPE > &info, const ACE_Time_Value &cur_time, const void *upcall_act)
	This method will call the postinvoke() on <functor>.

Public Member Functions inherited from ACE_Timer_Queue_Upcall_Base< TYPE, FUNCTOR >
	ACE_Timer_Queue_Upcall_Base (FUNCTOR *upcall_functor=nullptr)

	ACE_Timer_Queue_Upcall_Base (const ACE_Timer_Queue_Upcall_Base &)=delete

	ACE_Timer_Queue_Upcall_Base (ACE_Timer_Queue_Upcall_Base &&)=delete

ACE_Timer_Queue_Upcall_Base &	operator= (const ACE_Timer_Queue_Upcall_Base &)=delete

ACE_Timer_Queue_Upcall_Base &	operator= (ACE_Timer_Queue_Upcall_Base &&)=delete

virtual	~ACE_Timer_Queue_Upcall_Base ()
	Destructor.

FUNCTOR &	upcall_functor ()
	Accessor to the upcall functor.

Public Member Functions inherited from ACE_Abstract_Timer_Queue< TYPE >
virtual	~ACE_Abstract_Timer_Queue ()=0
	Destructor.

Private Member Functions
virtual long	schedule_i (const TYPE &type, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval)

void	schedule_i (ACE_Timer_Node_T< TYPE > *n, const ACE_Time_Value &exp)
	The shared scheduling functionality between schedule() and reschedule()

ACE_Timer_Node_T< TYPE > *	find_node (long timer_id) const

void	cancel_i (ACE_Timer_Node_T< TYPE > *n)
	Shared subset of the two cancel() methods.

void	unlink (ACE_Timer_Node_T< TYPE > *n)

ACE_Timer_Node_T< TYPE > *	get_first_i () const

	ACE_Timer_List_T (const ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK > &)=delete

void	operator= (const ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK > &)=delete

Private Attributes
ACE_Timer_Node_T< TYPE > *	head_
	Pointer to linked list of <ACE_Timer_Handles>.

Iterator *	iterator_
	Iterator used to expire timers.

long	id_counter_

Friends
class	ACE_Timer_List_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >
	Iterator is a friend.

Additional Inherited Members
Protected Member Functions inherited from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >
virtual ACE_Timer_Node_T< TYPE > *	alloc_node ()
	Factory method that allocates a new node.

virtual void	free_node (ACE_Timer_Node_T< TYPE > *)
	Factory method that frees a previously allocated node.

virtual int	dispatch_info_i (const ACE_Time_Value &current_time, ACE_Timer_Node_Dispatch_Info_T< TYPE > &info)
	Non-locking version of dispatch_info ()

void	recompute_next_abs_interval_time (ACE_Timer_Node_T< TYPE > *expired, const ACE_Time_Value &cur_time)
	Recompute when the next time is that this interval timer should fire.

Protected Attributes inherited from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >
ACE_LOCK	mutex_

ACE_Free_List< ACE_Timer_Node_T< TYPE > > *	free_list_
	Class that implements a free list.

TIME_POLICY	time_policy_
	The policy to return the current time of day.

bool const	delete_free_list_
	Flag to delete only if the class created the <free_list_>

Protected Attributes inherited from ACE_Timer_Queue_Upcall_Base< TYPE, FUNCTOR >
FUNCTOR *	upcall_functor_
	Upcall functor.

bool const	delete_upcall_functor_
	To delete or not to delete is the question?

Detailed Description

template<class TYPE, class FUNCTOR, class ACE_LOCK, typename TIME_POLICY = ACE_Default_Time_Policy>
class ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >

Provides a simple implementation of timers.

This implementation uses a linked list of absolute times. Therefore, in the average case, scheduling and canceling timers is O(N) (where N is the total number of timers) and expiring timers is O(K) (where K is the total number of timers that are < the current time of day). More clever implementations could use a delta-list, a heap, or timing wheels, etc. For instance, ACE_Timer_Heap is a subclass of ACE_Timer_List that implements a heap-based callout queue. For most applications, the ACE_Timer_Heap will perform substantially faster than the ACE_Timer_List.

Member Typedef Documentation

◆ Base_Timer_Queue

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>

typedef ACE_Timer_Queue_T<TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY> ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::Base_Timer_Queue

Type inherited from.

◆ FreeList

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>

typedef ACE_Free_List<Node> ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::FreeList

◆ Iterator

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>

typedef ACE_Timer_List_Iterator_T<TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY> ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::Iterator

Type of iterator.

◆ Node

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>

typedef ACE_Timer_Node_T<TYPE> ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::Node

Constructor & Destructor Documentation

◆ ACE_Timer_List_T() [1/2]

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::ACE_Timer_List_T	(	FUNCTOR *	upcall_functor = 0,
		FreeList *	freelist = 0,
		TIME_POLICY const &	time_policy = TIME_POLICY() )

Default constructor. upcall_functor is the instance of the FUNCTOR to be used by the list. If upcall_functor is 0, a default FUNCTOR will be created. freelist is the freelist of timer nodes. If 0, then a default freelist will be created.

◆ ~ACE_Timer_List_T()

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::~ACE_Timer_List_T ( )

virtual

Destructor.

◆ ACE_Timer_List_T() [2/2]

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>

ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::ACE_Timer_List_T ( const ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK > & )

privatedelete

Member Function Documentation

◆ cancel() [1/2]

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

int ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::cancel	(	const TYPE &	type,
		int	dont_call_handle_close = 1 )

virtual

Cancel all timers associated with type. If dont_call_handle_close is 0 then the functor will be invoked. Returns the number of timers cancelled.

Implements ACE_Abstract_Timer_Queue< TYPE >.

◆ cancel() [2/2]

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

int ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::cancel	(	long	timer_id,
		const void **	act = 0,
		int	dont_call_handle_close = 1 )

virtual

Cancel the single timer that matches the timer_id value (which was returned from the <schedule> method). If act is non-NULL then it will be set to point to the `‘magic cookie’' argument passed in when the timer was registered. This makes it possible to free up the memory and avoid memory leaks. If <dont_call> is 0 then the <functor> will be invoked. Returns 1 if cancellation succeeded and 0 if the timer_id wasn't found.

Implements ACE_Abstract_Timer_Queue< TYPE >.

◆ cancel_i()

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

void ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::cancel_i ( ACE_Timer_Node_T< TYPE > * n )

private

Shared subset of the two cancel() methods.

◆ close()

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

int ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::close ( )

virtual

Destroy timer queue. Cancels all timers.

Implements ACE_Abstract_Timer_Queue< TYPE >.

◆ dump()

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

void ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::dump ( ) const

virtual

Dump the state of an object.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

◆ earliest_time()

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

const ACE_Time_Value & ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::earliest_time ( ) const

virtual

Returns the time of the earlier node in the ACE_Timer_List. Must be called on a non-empty queue.

Implements ACE_Abstract_Timer_Queue< TYPE >.

◆ find_node()

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

ACE_Timer_Node_T< TYPE > * ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::find_node ( long timer_id ) const

private

◆ get_first()

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

ACE_Timer_Node_T< TYPE > * ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::get_first ( )

virtual

Reads the earliest node from the queue and returns it.

Implements ACE_Abstract_Timer_Queue< TYPE >.

◆ get_first_i()

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

ACE_Timer_Node_T< TYPE > * ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::get_first_i ( ) const

private

◆ is_empty()

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

bool ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::is_empty ( ) const

virtual

True if queue is empty, else false.

Implements ACE_Abstract_Timer_Queue< TYPE >.

◆ iter()

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

ACE_Timer_Queue_Iterator_T< TYPE > & ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::iter ( )

virtual

Returns a pointer to this ACE_Timer_Queue's iterator.

Implements ACE_Abstract_Timer_Queue< TYPE >.

◆ operator=()

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>

void ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::operator= ( const ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK > & )

privatedelete

◆ remove_first()

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

ACE_Timer_Node_T< TYPE > * ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::remove_first ( )

virtual

Removes the earliest node from the queue and returns it.

Implements ACE_Abstract_Timer_Queue< TYPE >.

◆ reschedule()

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

void ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::reschedule ( ACE_Timer_Node_T< TYPE > * n )

virtual

Reschedule an "interval" ACE_Timer_Node_T. This should be private but for now it needs to be public for <ACE_Timer_Hash_T>

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

◆ reset_interval()

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

int ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::reset_interval	(	long	timer_id,
		const ACE_Time_Value &	interval )

virtual

Resets the interval of the timer represented by timer_id to interval, which is specified in relative time to the current <gettimeofday>. If interval is equal to ACE_Time_Value::zero, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not.

Implements ACE_Abstract_Timer_Queue< TYPE >.

◆ schedule_i() [1/2]

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

void ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::schedule_i	(	ACE_Timer_Node_T< TYPE > *	n,
		const ACE_Time_Value &	exp )

private

The shared scheduling functionality between schedule() and reschedule()

◆ schedule_i() [2/2]

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

long ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::schedule_i	(	const TYPE &	type,
		const void *	act,
		const ACE_Time_Value &	future_time,
		const ACE_Time_Value &	interval )

privatevirtual

Schedule type that will expire at future_time, which is specified in absolute time. If it expires then act is passed in as the value to the <functor>. If interval is != to ACE_Time_Value::zero then it is used to reschedule the type automatically, using relative time to the current <gettimeofday>. This method returns a timer_id that uniquely identifies the the type entry in an internal list. This timer_id can be used to cancel the timer before it expires. The cancellation ensures that <timer_ids> are unique up to values of greater than 2 billion timers. As long as timers don't stay around longer than this there should be no problems with accidentally deleting the wrong timer. Returns -1 on failure (which is guaranteed never to be a valid <timer_id>).

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

◆ unlink()

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

void ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::unlink ( ACE_Timer_Node_T< TYPE > * n )

private

Friends And Related Symbol Documentation

◆ ACE_Timer_List_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>

friend class ACE_Timer_List_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >

friend

Iterator is a friend.

Member Data Documentation

◆ head_

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>

ACE_Timer_Node_T<TYPE>* ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::head_

private

Pointer to linked list of <ACE_Timer_Handles>.

◆ id_counter_

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>

long ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::id_counter_

private

Keeps track of the timer id that uniquely identifies each timer. This id can be used to cancel a timer via the <cancel(long)> method.

◆ iterator_

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>

Iterator* ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::iterator_

private

Iterator used to expire timers.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Base_Timer_Queue

◆ FreeList

◆ Iterator

◆ Node

Constructor & Destructor Documentation

◆ ACE_Timer_List_T() [1/2]

◆ ~ACE_Timer_List_T()

◆ ACE_Timer_List_T() [2/2]

Member Function Documentation

◆ cancel() [1/2]

◆ cancel() [2/2]

◆ cancel_i()

◆ close()

◆ dump()

◆ earliest_time()

◆ find_node()

◆ get_first()

◆ get_first_i()

◆ is_empty()

◆ iter()

◆ operator=()

◆ remove_first()

◆ reschedule()

◆ reset_interval()

◆ schedule_i() [1/2]

◆ schedule_i() [2/2]

◆ unlink()

Friends And Related Symbol Documentation

◆ ACE_Timer_List_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >

Member Data Documentation

◆ head_

◆ id_counter_

◆ iterator_
