This class is the primary abstraction for the ASX framework. It is moduled after System V Stream. More...

#include <Stream.h>

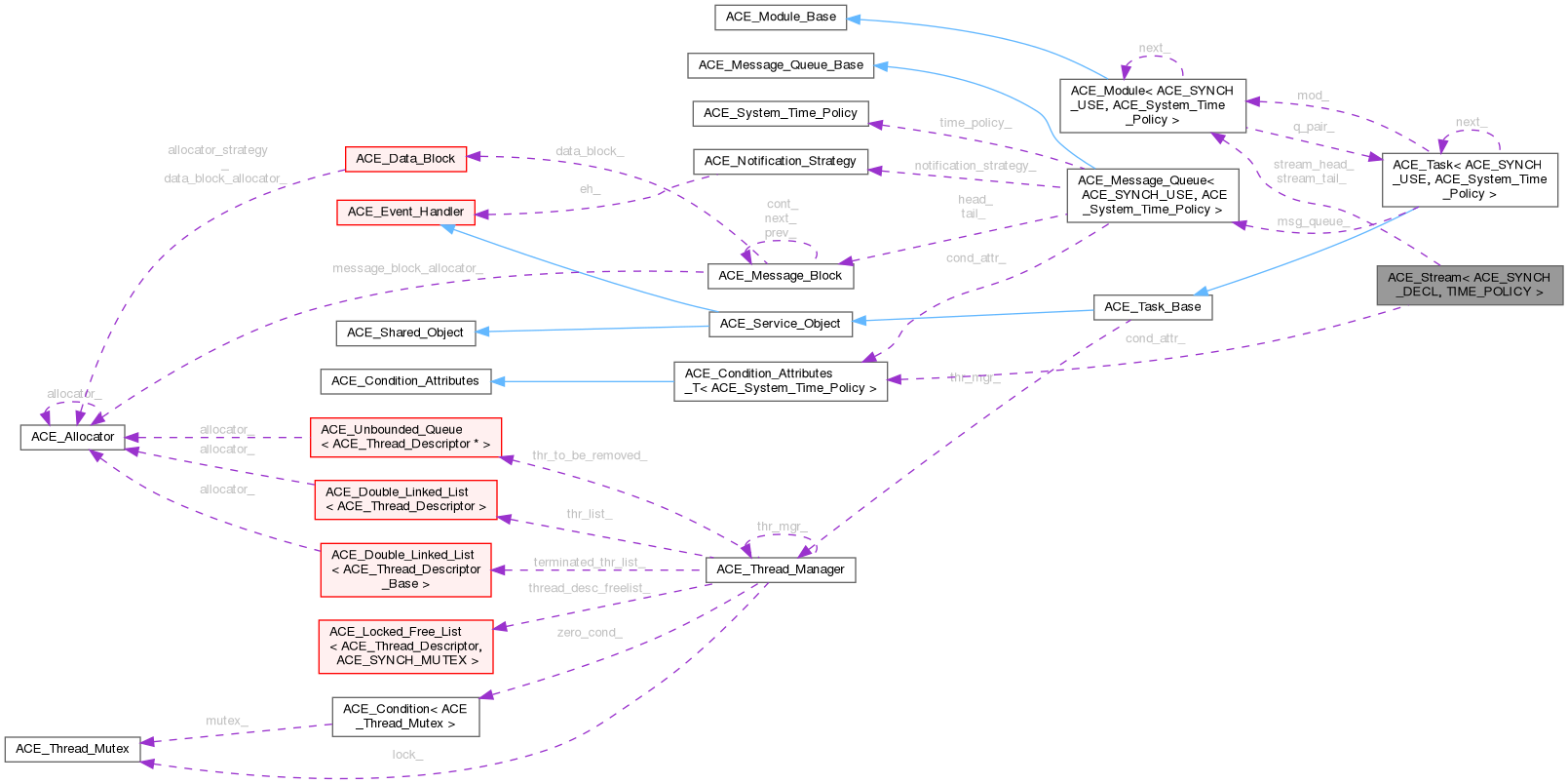

Collaboration diagram for ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >:

[legend]

Public Types
enum	{ M_DELETE = 3 }

Public Member Functions
	ACE_Stream (void arg=0, ACE_Module< ACE_SYNCH_USE, TIME_POLICY > head=0, ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *tail=0)

virtual int	open (void arg, ACE_Module< ACE_SYNCH_USE, TIME_POLICY > head=0, ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *tail=0)

virtual int	close (int flags=M_DELETE)
	Close down the stream and release all the resources.

virtual	~ACE_Stream ()
	Close down the stream and release all the resources.

virtual int	push (ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *mod)

virtual int	pop (int flags=M_DELETE)
	Remove the mod right below the Stream head and close it down.

virtual int	top (ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *&mod)

virtual int	insert (const ACE_TCHAR prev_name, ACE_Module< ACE_SYNCH_USE, TIME_POLICY > mod)
	Insert a new module mod below the named module prev_name.

virtual int	replace (const ACE_TCHAR replace_name, ACE_Module< ACE_SYNCH_USE, TIME_POLICY > mod, int flags=M_DELETE)
	Replace the named module replace_name with a new module mod.

virtual int	remove (const ACE_TCHAR *mod, int flags=M_DELETE)

virtual ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	head ()
	Return current stream head.

virtual ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	tail ()
	Return current stream tail.

virtual ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	find (const ACE_TCHAR *mod)
	Find a particular ACE_Module.

virtual int	link (ACE_Stream< ACE_SYNCH_USE, TIME_POLICY > &)
	Create a pipe between two Streams.

virtual int	unlink ()
	Remove a pipe formed between two Streams.

virtual int	put (ACE_Message_Block mb, ACE_Time_Value timeout=0)

virtual int	get (ACE_Message_Block &mb, ACE_Time_Value timeout=0)

virtual int	control (ACE_IO_Cntl_Msg::ACE_IO_Cntl_Cmds cmd, void *args)
	Send control message down the stream.

virtual int	wait ()
	Synchronize with the final close of the stream.

virtual void	dump () const
	Dump the state of an object.

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Protected Attributes
ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	stream_head_
	Pointer to the head of the stream.

ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	stream_tail_
	Pointer to the tail of the stream.

ACE_Stream< ACE_SYNCH_USE, TIME_POLICY > *	linked_us_
	Pointer to an adjoining linked stream.

ACE_SYNCH_MUTEX_T	lock_
	Protect the stream against race conditions.

ACE_Condition_Attributes_T< TIME_POLICY >	cond_attr_
	Attributes to initialize condition with.

ACE_SYNCH_CONDITION_T	final_close_
	Use to tell all threads waiting on the close that we are done.

Private Member Functions
int	unlink_i ()

int	link_i (ACE_Stream< ACE_SYNCH_USE, TIME_POLICY > &)

int	push_module (ACE_Module< ACE_SYNCH_USE, TIME_POLICY > , ACE_Module< ACE_SYNCH_USE, TIME_POLICY > =0, ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *=0)
	Must a new module onto the Stream.

Friends
class	ACE_Stream_Iterator< ACE_SYNCH_USE, TIME_POLICY >

Detailed Description

template<ACE_SYNCH_DECL, class TIME_POLICY = ACE_System_Time_Policy>
class ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >

This class is the primary abstraction for the ASX framework. It is moduled after System V Stream.

A Stream consists of a stack of ACE_Modules, each of which contains two ACE_Tasks. Even though the methods in this class are virtual, this class isn't really intended for subclassing unless you know what you are doing. In particular, the ACE_Stream destructor calls <close>, which won't be overridden properly unless you call it in a subclass destructor.

Member Enumeration Documentation

◆ anonymous enum

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>

anonymous enum

Enumerator
M_DELETE	Indicates that `close()` deletes the Tasks. Don't change this value without updating the same enum in class ACE_Module...

Constructor & Destructor Documentation

◆ ACE_Stream()

template<ACE_SYNCH_DECL , class TIME_POLICY >

ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::ACE_Stream	(	void *	arg = 0,
		ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	head = 0,
		ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	tail = 0 )

Create a Stream consisting of head and tail as the Stream head and Stream tail, respectively. If these are 0 then the ACE_Stream_Head and ACE_Stream_Tail are used, respectively. arg is the value past in to the <open> methods of the tasks.

◆ ~ACE_Stream()

template<ACE_SYNCH_DECL , class TIME_POLICY >

ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::~ACE_Stream ( )

virtual

Close down the stream and release all the resources.

Member Function Documentation

◆ close()

template<ACE_SYNCH_DECL , class TIME_POLICY >

int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::close ( int flags = M_DELETE )

virtual

Close down the stream and release all the resources.

◆ control()

template<ACE_SYNCH_DECL , class TIME_POLICY >

int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::control	(	ACE_IO_Cntl_Msg::ACE_IO_Cntl_Cmds	cmd,
		void *	args )

virtual

Send control message down the stream.

◆ dump()

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>

class TIME_POLICY void ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::dump ( ) const

virtual

Dump the state of an object.

◆ find()

template<ACE_SYNCH_DECL , class TIME_POLICY >

ACE_Module< ACE_SYNCH_USE, TIME_POLICY > * ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::find ( const ACE_TCHAR * mod )

virtual

Find a particular ACE_Module.

◆ get()

template<ACE_SYNCH_DECL , class TIME_POLICY >

int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::get	(	ACE_Message_Block *&	mb,
		ACE_Time_Value *	timeout = 0 )

virtual

Read the message mb that is stored in the stream head. Wait for upto timeout amount of absolute time for the operation to complete (or block forever if timeout == 0).

◆ head()

template<ACE_SYNCH_DECL , class TIME_POLICY >

ACE_Module< ACE_SYNCH_USE, TIME_POLICY > * ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::head ( )

inlinevirtual

Return current stream head.

◆ insert()

template<ACE_SYNCH_DECL , class TIME_POLICY >

int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::insert	(	const ACE_TCHAR *	prev_name,
		ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	mod )

virtual

Insert a new module mod below the named module prev_name.

◆ link()

template<ACE_SYNCH_DECL , class TIME_POLICY >

int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::link ( ACE_Stream< ACE_SYNCH_USE, TIME_POLICY > & us )

virtual

Create a pipe between two Streams.

◆ link_i()

template<ACE_SYNCH_DECL , class TIME_POLICY >

int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::link_i ( ACE_Stream< ACE_SYNCH_USE, TIME_POLICY > & us )

private

Actually perform the linking of two Streams (must be called with locks held).

◆ open()

template<ACE_SYNCH_DECL , class TIME_POLICY >

int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::open	(	void *	arg,
		ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	head = 0,
		ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	tail = 0 )

virtual

Create a Stream consisting of head and tail as the Stream head and Stream tail, respectively. If these are 0 then the ACE_Stream_Head and ACE_Stream_Tail are used, respectively. arg is the value past in to the open() methods of the tasks.

◆ pop()

template<ACE_SYNCH_DECL , class TIME_POLICY >

int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::pop ( int flags = M_DELETE )

virtual

Remove the mod right below the Stream head and close it down.

are invoked to cleanup the tasks.

◆ push()

template<ACE_SYNCH_DECL , class TIME_POLICY >

int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::push ( ACE_Module< ACE_SYNCH_USE, TIME_POLICY > * mod )

virtual

Add a new module mod right below the Stream head. The open() hook methods of the ACE_Tasks in this ACE_Module are invoked to initialize the tasks.

◆ push_module()

template<ACE_SYNCH_DECL , class TIME_POLICY >

int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::push_module	(	ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	new_top,
		ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	current_top = 0,
		ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	head = 0 )

private

Must a new module onto the Stream.

◆ put()

template<ACE_SYNCH_DECL , class TIME_POLICY >

int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::put	(	ACE_Message_Block *	mb,
		ACE_Time_Value *	timeout = 0 )

virtual

Send the message mb down the stream, starting at the Module below the Stream head. Wait for upto timeout amount of absolute time for the operation to complete (or block forever if timeout == 0).

◆ remove()

template<ACE_SYNCH_DECL , class TIME_POLICY >

int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::remove	(	const ACE_TCHAR *	mod,
		int	flags = M_DELETE )

virtual

Remove the named module mod from the stream. This bypasses the strict LIFO ordering of push and pop.

◆ replace()

template<ACE_SYNCH_DECL , class TIME_POLICY >

int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::replace	(	const ACE_TCHAR *	replace_name,
		ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	mod,
		int	flags = M_DELETE )

virtual

Replace the named module replace_name with a new module mod.

◆ tail()

template<ACE_SYNCH_DECL , class TIME_POLICY >

ACE_Module< ACE_SYNCH_USE, TIME_POLICY > * ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::tail ( )

inlinevirtual

Return current stream tail.

◆ top()

template<ACE_SYNCH_DECL , class TIME_POLICY >

int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::top ( ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *& mod )

virtual

Return the top module on the stream (right below the stream head).

◆ unlink()

template<ACE_SYNCH_DECL , class TIME_POLICY >

int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::unlink ( )

virtual

Remove a pipe formed between two Streams.

◆ unlink_i()

template<ACE_SYNCH_DECL , class TIME_POLICY >

int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::unlink_i ( )

private

Actually perform the unlinking of two Streams (must be called with locks held).

◆ wait()

template<ACE_SYNCH_DECL , class TIME_POLICY >

int ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::wait ( )

inlinevirtual

Synchronize with the final close of the stream.

Friends And Related Symbol Documentation

◆ ACE_Stream_Iterator< ACE_SYNCH_USE, TIME_POLICY >

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>

friend class ACE_Stream_Iterator< ACE_SYNCH_USE, TIME_POLICY >

friend

Member Data Documentation

◆ ACE_ALLOC_HOOK_DECLARE

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>

ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

◆ cond_attr_

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>

ACE_Condition_Attributes_T<TIME_POLICY> ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::cond_attr_

protected

Attributes to initialize condition with.

◆ final_close_

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>

ACE_SYNCH_CONDITION_T ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::final_close_

protected

Use to tell all threads waiting on the close that we are done.

◆ linked_us_

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>

ACE_Stream<ACE_SYNCH_USE, TIME_POLICY>* ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::linked_us_

protected

Pointer to an adjoining linked stream.

◆ lock_

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>

ACE_SYNCH_MUTEX_T ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::lock_

mutableprotected

Protect the stream against race conditions.

◆ stream_head_

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>

ACE_Module<ACE_SYNCH_USE, TIME_POLICY>* ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::stream_head_

protected

Pointer to the head of the stream.

◆ stream_tail_

template<ACE_SYNCH_DECL , class TIME_POLICY = ACE_System_Time_Policy>

ACE_Module<ACE_SYNCH_USE, TIME_POLICY>* ACE_Stream< ACE_SYNCH_DECL, TIME_POLICY >::stream_tail_

protected

Pointer to the tail of the stream.

The documentation for this class was generated from the following files:
