ACE_Based_Pointer_Repository Class Reference

Maps pointers to the base address of the region to which each pointer belongs. More...

#include <Based_Pointer_Repository.h>

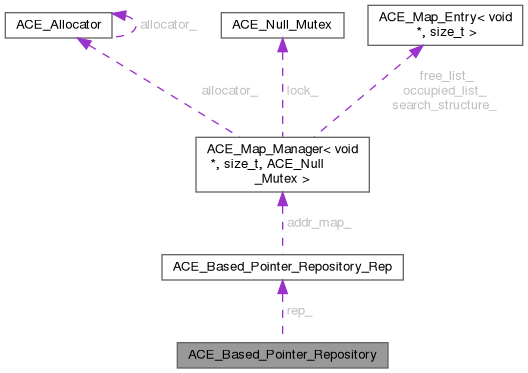

Collaboration diagram for ACE_Based_Pointer_Repository:

Public Member Functions
	ACE_Based_Pointer_Repository ()
	~ACE_Based_Pointer_Repository ()
int	find (void *addr, void *&base_addr)
int	bind (void *addr, size_t size)
int	unbind (void *addr)

Private Member Functions
void	operator= (const ACE_Based_Pointer_Repository &)=delete
	ACE_Based_Pointer_Repository (const ACE_Based_Pointer_Repository &)=delete

Private Attributes
ACE_Based_Pointer_Repository_Rep *	rep_

Detailed Description

Maps pointers to the base address of the region to which each pointer belongs.

Constructor & Destructor Documentation

ACE_Based_Pointer_Repository() [1/2]

ACE_Based_Pointer_Repository::ACE_Based_Pointer_Repository

(

)

~ACE_Based_Pointer_Repository()

ACE_Based_Pointer_Repository::~ACE_Based_Pointer_Repository

(

)

ACE_Based_Pointer_Repository() [2/2]

ACE_Based_Pointer_Repository::ACE_Based_Pointer_Repository ( const ACE_Based_Pointer_Repository & )

privatedelete

Member Function Documentation

bind()

int ACE_Based_Pointer_Repository::bind	(	void *	addr,
		size_t	size )

Bind a new entry to the repository or update the size of an existing entry. Returns 0 on success and -1 on failure.

find()

int ACE_Based_Pointer_Repository::find	(	void *	addr,
		void *&	base_addr )

Return the appropriate base_addr region that contains addr. Returns 1 on success and 0 if the addr isn't contained in any base_addr region.

operator=()

void ACE_Based_Pointer_Repository::operator= ( const ACE_Based_Pointer_Repository & )

privatedelete

unbind()

int ACE_Based_Pointer_Repository::unbind

(

void *

addr

)

Unbind from the repository the <base_addr> that addr is contained within.

Member Data Documentation

rep_

ACE_Based_Pointer_Repository_Rep* ACE_Based_Pointer_Repository::rep_

private

Use the "Cheshire-Cat" technique to hide the implementation in order to avoid circular #include dependencies.

---

The documentation for this class was generated from the following files:

• Based_Pointer_Repository.h
• Based_Pointer_Repository.cpp
