TAO_ECG_UDP_Request_Entry Class Reference

Keeps information about an incomplete request. More...

#include <ECG_CDR_Message_Receiver.h>

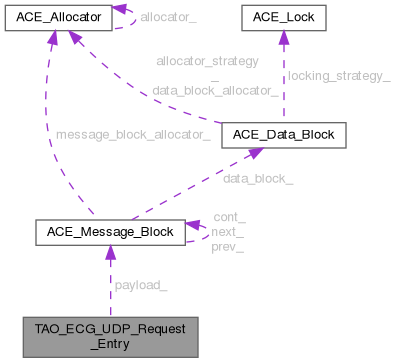

Collaboration diagram for TAO_ECG_UDP_Request_Entry:

Public Types
enum	{ ECG_DEFAULT_FRAGMENT_BUFSIZ = 8 }

Public Member Functions
	TAO_ECG_UDP_Request_Entry (CORBA::Boolean byte_order, CORBA::ULong request_id, CORBA::ULong request_size, CORBA::ULong fragment_count)
	Initialize the fragment, allocating memory, etc.
	~TAO_ECG_UDP_Request_Entry ()
int	validate_fragment (CORBA::Boolean byte_order, CORBA::ULong request_size, CORBA::ULong fragment_size, CORBA::ULong fragment_offset, CORBA::ULong fragment_id, CORBA::ULong fragment_count) const
	Validate a fragment, it should be rejected if it is invalid..
int	test_received (CORBA::ULong fragment_id) const
	Has fragment_id been received?
void	mark_received (CORBA::ULong fragment_id)
	Mark fragment_id as received, reset timeout counter...
int	complete () const
	Is the message complete?
char *	fragment_buffer (CORBA::ULong fragment_offset)
	Return a buffer for the fragment at offset fragment_offset.

Private Member Functions
	TAO_ECG_UDP_Request_Entry (const TAO_ECG_UDP_Request_Entry &rhs)
TAO_ECG_UDP_Request_Entry &	operator= (const TAO_ECG_UDP_Request_Entry &rhs)

Private Attributes
CORBA::Boolean	byte_order_
CORBA::ULong	request_id_
CORBA::ULong	request_size_
CORBA::ULong	fragment_count_
ACE_Message_Block	payload_
CORBA::ULong *	received_fragments_
	This is a bit vector, used to keep track of the received buffers.
int	own_received_fragments_
CORBA::ULong	received_fragments_size_
CORBA::ULong	default_received_fragments_ [ECG_DEFAULT_FRAGMENT_BUFSIZ]

Detailed Description

Keeps information about an incomplete request.

When a request arrives in fragments this object is used to keep track of the incoming data.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
ECG_DEFAULT_FRAGMENT_BUFSIZ

Constructor & Destructor Documentation

TAO_ECG_UDP_Request_Entry() [1/2]

TAO_ECG_UDP_Request_Entry::TAO_ECG_UDP_Request_Entry	(	CORBA::Boolean	byte_order,
		CORBA::ULong	request_id,
		CORBA::ULong	request_size,
		CORBA::ULong	fragment_count )

Initialize the fragment, allocating memory, etc.

~TAO_ECG_UDP_Request_Entry()

TAO_ECG_UDP_Request_Entry::~TAO_ECG_UDP_Request_Entry

(

)

TAO_ECG_UDP_Request_Entry() [2/2]

TAO_ECG_UDP_Request_Entry::TAO_ECG_UDP_Request_Entry ( const TAO_ECG_UDP_Request_Entry & rhs )

private

Member Function Documentation

complete()

int TAO_ECG_UDP_Request_Entry::complete

(

)

const

Is the message complete?

fragment_buffer()

char * TAO_ECG_UDP_Request_Entry::fragment_buffer

(

CORBA::ULong

fragment_offset

)

Return a buffer for the fragment at offset fragment_offset.

mark_received()

void TAO_ECG_UDP_Request_Entry::mark_received

(

CORBA::ULong

fragment_id

)

Mark fragment_id as received, reset timeout counter...

operator=()

TAO_ECG_UDP_Request_Entry & TAO_ECG_UDP_Request_Entry::operator= ( const TAO_ECG_UDP_Request_Entry & rhs )

private

test_received()

int TAO_ECG_UDP_Request_Entry::test_received

(

CORBA::ULong

fragment_id

)

const

Has fragment_id been received?

validate_fragment()

int TAO_ECG_UDP_Request_Entry::validate_fragment	(	CORBA::Boolean	byte_order,
		CORBA::ULong	request_size,
		CORBA::ULong	fragment_size,
		CORBA::ULong	fragment_offset,
		CORBA::ULong	fragment_id,
		CORBA::ULong	fragment_count ) const

Validate a fragment, it should be rejected if it is invalid..

Member Data Documentation

byte_order_

CORBA::Boolean TAO_ECG_UDP_Request_Entry::byte_order_

private

This attributes should remain constant in all the fragments, used for validation....

default_received_fragments_

CORBA::ULong TAO_ECG_UDP_Request_Entry::default_received_fragments_[ECG_DEFAULT_FRAGMENT_BUFSIZ]

private

fragment_count_

CORBA::ULong TAO_ECG_UDP_Request_Entry::fragment_count_

private

own_received_fragments_

int TAO_ECG_UDP_Request_Entry::own_received_fragments_

private

payload_

ACE_Message_Block TAO_ECG_UDP_Request_Entry::payload_

private

received_fragments_

CORBA::ULong* TAO_ECG_UDP_Request_Entry::received_fragments_

private

This is a bit vector, used to keep track of the received buffers.

received_fragments_size_

CORBA::ULong TAO_ECG_UDP_Request_Entry::received_fragments_size_

private

request_id_

CORBA::ULong TAO_ECG_UDP_Request_Entry::request_id_

private

request_size_

CORBA::ULong TAO_ECG_UDP_Request_Entry::request_size_

private

---

The documentation for this class was generated from the following files:

• ECG_CDR_Message_Receiver.h
• ECG_CDR_Message_Receiver.cpp
