Defines the member functions for the ACE QoS enabled socket wrapper for UDP/IP multicast. More...

#include <SOCK_Dgram_Mcast_QoS.h>

Inheritance diagram for ACE_SOCK_Dgram_Mcast_QoS:

[legend]

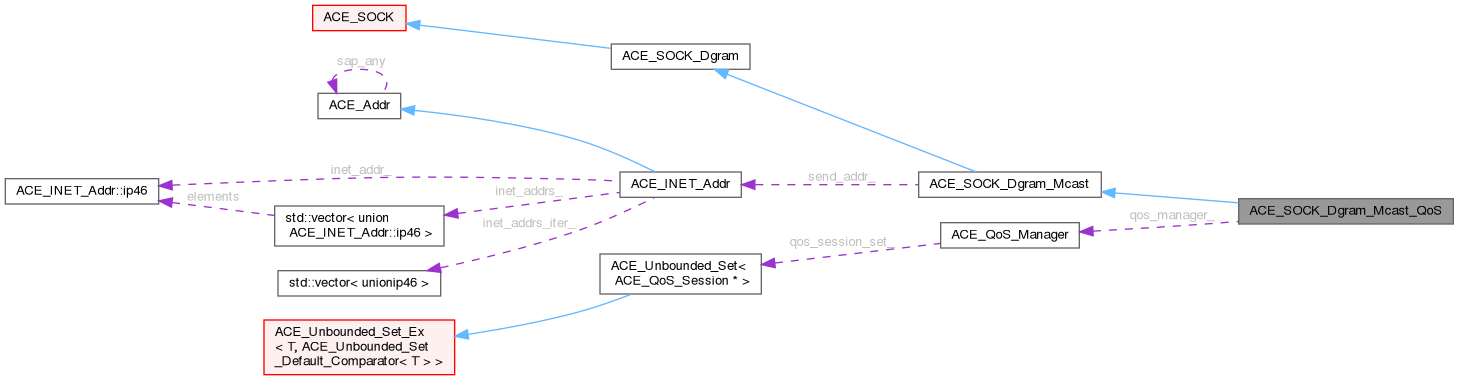

Collaboration diagram for ACE_SOCK_Dgram_Mcast_QoS:

[legend]

Public Member Functions
	ACE_SOCK_Dgram_Mcast_QoS (options opts=DEFOPTS)
	Ctor, has same defaults as ACE_SOCK_Dgram_Mcast.

	~ACE_SOCK_Dgram_Mcast_QoS ()
	Default dtor.

int	subscribe (const ACE_INET_Addr &mcast_addr, const ACE_QoS_Params &qos_params, int reuse_addr=1, const ACE_TCHAR net_if=0, int protocol_family=PF_INET, int protocol=0, ACE_Protocol_Info protocolinfo=0, ACE_SOCK_GROUP g=0, u_long flags=0, ACE_QoS_Session *qos_session=0)

ssize_t	send (const iovec buffers[], int buffer_count, size_t &number_of_bytes_sent, int flags, const ACE_Addr &addr, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const

ssize_t	send (const void buf, size_t n, const ACE_Addr &addr, int flags, ACE_OVERLAPPED overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
	Send an n byte buf to the datagram socket (uses <WSASentTo>).

ACE_QoS_Manager	qos_manager ()
	Returns the QoS manager for this socket.

int	open (const ACE_INET_Addr &addr, const ACE_QoS_Params &qos_params, int protocol_family=PF_INET, int protocol=0, ACE_Protocol_Info *protocolinfo=0, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0)

Public Member Functions inherited from ACE_SOCK_Dgram_Mcast
	ACE_SOCK_Dgram_Mcast (options opts=DEFOPTS)

	~ACE_SOCK_Dgram_Mcast ()

int	open (const ACE_INET_Addr &mcast_addr, const ACE_TCHAR *net_if=0, int reuse_addr=1)

int	join (const ACE_INET_Addr &mcast_addr, int reuse_addr=1, const ACE_TCHAR *net_if=0)

int	leave (const ACE_INET_Addr &mcast_addr, const ACE_TCHAR *net_if=0)

ssize_t	send (const void *buf, size_t n, int flags=0) const

ssize_t	send (const iovec iov[], int n, int flags=0) const

int	set_option (int option, char optval)

void	dump () const

void	opts (int opts)

int	opts () const

Public Member Functions inherited from ACE_SOCK_Dgram
	ACE_SOCK_Dgram ()

	ACE_SOCK_Dgram (const ACE_Addr &local, int protocol_family=ACE_PROTOCOL_FAMILY_INET, int protocol=0, int reuse_addr=0, int ipv6_only=0)

	ACE_SOCK_Dgram (const ACE_Addr &local, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0, int ipv6_only=0)

int	open (const ACE_Addr &local, int protocol_family=ACE_PROTOCOL_FAMILY_INET, int protocol=0, int reuse_addr=0, int ipv6_only=0)

int	open (const ACE_Addr &local, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0, int ipv6_only=0)

	~ACE_SOCK_Dgram ()

ssize_t	send (const void *buf, size_t n, const ACE_Addr &addr, int flags=0) const

ssize_t	recv (void *buf, size_t n, ACE_Addr &addr, int flags=0) const

ssize_t	recv (iovec io_vec, ACE_Addr &addr, int flags=0, const ACE_Time_Value timeout=0) const

ssize_t	send (const iovec iov[], int n, const ACE_Addr &addr, int flags=0) const

ssize_t	recv (iovec iov[], int n, ACE_Addr &addr, int flags=0, ACE_INET_Addr *to_addr=0) const

ssize_t	recv (void buf, size_t n, ACE_Addr &addr, int flags, const ACE_Time_Value timeout) const

ssize_t	send (const void buf, size_t n, const ACE_Addr &addr, int flags, const ACE_Time_Value timeout) const

ssize_t	send (const iovec buffers[], int buffer_count, size_t &number_of_bytes_sent, int flags, const ACE_Addr &addr, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const

ssize_t	recv (iovec buffers[], int buffer_count, size_t &number_of_bytes_recvd, int &flags, ACE_Addr &addr, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const

ssize_t	send (const void buf, size_t n, const ACE_Addr &addr, int flags, ACE_OVERLAPPED overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const

ssize_t	recv (void buf, size_t n, ACE_Addr &addr, int flags, ACE_OVERLAPPED overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const

void	dump () const

int	set_nic (const ACE_TCHAR *net_if, int addr_family=AF_UNSPEC)

Public Member Functions inherited from ACE_SOCK
int	set_option (int level, int option, void *optval, int optlen) const

int	get_option (int level, int option, void optval, int optlen) const

int	close ()

int	get_local_addr (ACE_Addr &) const

int	get_remote_addr (ACE_Addr &) const

void	dump () const

int	open (int type, int protocol_family, int protocol, int reuse_addr)

int	open (int type, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)

Public Member Functions inherited from ACE_IPC_SAP
int	control (int cmd, void *) const

int	enable (int value) const

int	disable (int value) const

ACE_HANDLE	get_handle () const

void	set_handle (ACE_HANDLE handle)

void	dump () const

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Public Attributes inherited from ACE_SOCK_Dgram_Mcast
	OPT_BINDADDR_NO

	OPT_BINDADDR_YES

	DEFOPT_BINDADDR

	OPT_NULLIFACE_ONE

	OPT_NULLIFACE_ALL

	DEFOPT_NULLIFACE

	DEFOPTS

	ACE_ALLOC_HOOK_DECLARE

Public Attributes inherited from ACE_SOCK_Dgram
	ACE_ALLOC_HOOK_DECLARE

Public Attributes inherited from ACE_SOCK
	ACE_ALLOC_HOOK_DECLARE

Public Attributes inherited from ACE_IPC_SAP
	ACE_ALLOC_HOOK_DECLARE

Private Member Functions
int	subscribe_ifs (const ACE_INET_Addr &mcast_addr, const ACE_QoS_Params &qos_params, const ACE_TCHAR net_if, int protocol_family, int protocol, int reuse_addr, ACE_Protocol_Info protocolinfo)
	Subscribe to the multicast interface using QoS-enabled semantics.

Private Attributes
ACE_QoS_Manager	qos_manager_
	Manages the QoS sessions that this socket subscribes to.

Additional Inherited Members
Public Types inherited from ACE_SOCK_Dgram_Mcast
enum	options

Public Types inherited from ACE_SOCK_Dgram
typedef ACE_INET_Addr	PEER_ADDR

Protected Member Functions inherited from ACE_SOCK_Dgram_Mcast
int	open_i (const ACE_INET_Addr &mcast_addr, const ACE_TCHAR *net_if=0, int reuse_addr=1)

int	clear_subs_list ()

Protected Member Functions inherited from ACE_SOCK_Dgram
int	shared_open (const ACE_Addr &local, int protocol_family, int ipv6_only=0)

int	make_multicast_ifaddr (ip_mreq mreq, const ACE_INET_Addr &mcast_addr, const ACE_TCHAR net_if)

int	make_multicast_ifaddr6 (ipv6_mreq mreq, const ACE_INET_Addr &mcast_addr, const ACE_TCHAR net_if)

Protected Member Functions inherited from ACE_SOCK
	ACE_SOCK (int type, int protocol_family, int protocol=0, int reuse_addr=0)

	ACE_SOCK (int type, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)

	ACE_SOCK ()

	~ACE_SOCK ()=default

Protected Member Functions inherited from ACE_IPC_SAP
	ACE_IPC_SAP ()

	~ACE_IPC_SAP ()

Protected Attributes inherited from ACE_SOCK_Dgram_Mcast
ACE_INET_Addr	send_addr_

ACE_TCHAR *	send_net_if_

Detailed Description

Defines the member functions for the ACE QoS enabled socket wrapper for UDP/IP multicast.

Constructor & Destructor Documentation

◆ ACE_SOCK_Dgram_Mcast_QoS()

ACE_SOCK_Dgram_Mcast_QoS::ACE_SOCK_Dgram_Mcast_QoS ( options opts = DEFOPTS )

Ctor, has same defaults as ACE_SOCK_Dgram_Mcast.

◆ ~ACE_SOCK_Dgram_Mcast_QoS()

ACE_SOCK_Dgram_Mcast_QoS::~ACE_SOCK_Dgram_Mcast_QoS ( )

inline

Default dtor.

Member Function Documentation

◆ open()

int ACE_SOCK_Dgram_Mcast_QoS::open	(	const ACE_INET_Addr &	addr,
		const ACE_QoS_Params &	qos_params,
		int	protocol_family = PF_INET,
		int	protocol = 0,
		ACE_Protocol_Info *	protocolinfo = 0,
		ACE_SOCK_GROUP	g = 0,
		u_long	flags = 0,
		int	reuse_addr = 0 )

◆ qos_manager()

ACE_QoS_Manager ACE_SOCK_Dgram_Mcast_QoS::qos_manager ( )

inline

Returns the QoS manager for this socket.

◆ send() [1/2]

ssize_t ACE_SOCK_Dgram_Mcast_QoS::send	(	const iovec	buffers[],
		int	buffer_count,
		size_t &	number_of_bytes_sent,
		int	flags,
		const ACE_Addr &	addr,
		ACE_OVERLAPPED *	overlapped,
		ACE_OVERLAPPED_COMPLETION_FUNC	func ) const

inline

Send <buffer_count> worth of buffers to addr using overlapped I/O (uses <WSASentTo>). Returns 0 on success.

◆ send() [2/2]

ssize_t ACE_SOCK_Dgram_Mcast_QoS::send	(	const void *	buf,
		size_t	n,
		const ACE_Addr &	addr,
		int	flags,
		ACE_OVERLAPPED *	overlapped,
		ACE_OVERLAPPED_COMPLETION_FUNC	func ) const

inline

Send an n byte buf to the datagram socket (uses <WSASentTo>).

◆ subscribe()

int ACE_SOCK_Dgram_Mcast_QoS::subscribe	(	const ACE_INET_Addr &	mcast_addr,
		const ACE_QoS_Params &	qos_params,
		int	reuse_addr = 1,
		const ACE_TCHAR *	net_if = 0,
		int	protocol_family = PF_INET,
		int	protocol = 0,
		ACE_Protocol_Info *	protocolinfo = 0,
		ACE_SOCK_GROUP	g = 0,
		u_long	flags = 0,
		ACE_QoS_Session *	qos_session = 0 )

This is a QoS-enabled method for joining a multicast group, which passes <qos_params> via <ACE_OS::join_leaf>. The network interface device driver is instructed to accept datagrams with <mcast_addr> multicast addresses. If the socket has already been opened, <subscribe> closes the socket and opens a new socket bound to the <mcast_addr>. The session object specifies the QoS session that the socket wants to subscribe to. A socket may subscribe to multiple QoS sessions by calling this method multiple times with different session objects.

The <net_if> interface is hardware specific, e.g., use "netstat -i" to find whether your interface is, such as "le0" or something else. If net_if == 0, <subscribe> uses the default mcast interface. Returns: -1 if the call fails.

Note that some platforms, such as pSoS, support only number, not names, for network interfaces. For these platforms, just give these numbers in alphanumeric form and <subscribe> will convert them into numbers via <ACE_OS::atoi>.

◆ subscribe_ifs()

int ACE_SOCK_Dgram_Mcast_QoS::subscribe_ifs	(	const ACE_INET_Addr &	mcast_addr,
		const ACE_QoS_Params &	qos_params,
		const ACE_TCHAR *	net_if,
		int	protocol_family,
		int	protocol,
		int	reuse_addr,
		ACE_Protocol_Info *	protocolinfo )

private

Subscribe to the multicast interface using QoS-enabled semantics.

Member Data Documentation

◆ ACE_ALLOC_HOOK_DECLARE

ACE_SOCK_Dgram_Mcast_QoS::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

◆ qos_manager_

ACE_QoS_Manager ACE_SOCK_Dgram_Mcast_QoS::qos_manager_

private

Manages the QoS sessions that this socket subscribes to.

The documentation for this class was generated from the following files:
