ACE_QoS_Session Class Reference

A QoS Session object. More...

#include <QoS_Session.h>

Inheritance diagram for ACE_QoS_Session:

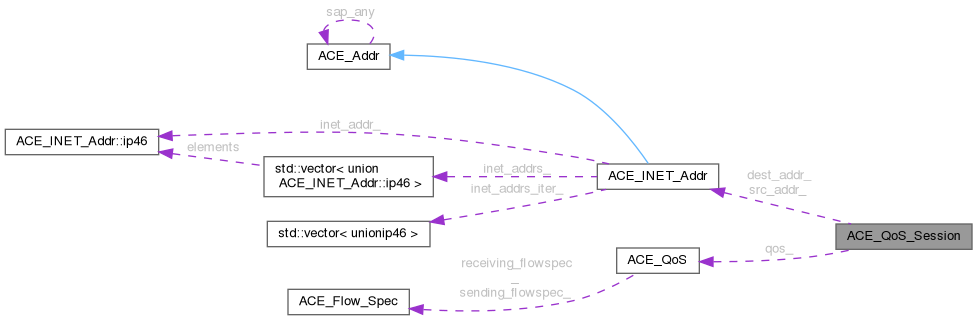

Collaboration diagram for ACE_QoS_Session:

Public Types
enum	RSVP_Event_Type {   RSVP_PATH_EVENT , RSVP_RESV_EVENT , RSVP_RESV_CONFIRM , RSVP_RESV_ERROR ,   RSVP_PATH_ERROR }
enum	ACE_End_Point_Type { ACE_QOS_SENDER , ACE_QOS_RECEIVER , ACE_QOS_BOTH }

Public Member Functions
virtual	~ACE_QoS_Session ()
	to shutup g++.
virtual int	open (ACE_INET_Addr dest_addr, ACE_Protocol_ID protocol_id)=0
	Open a QoS session [dest IP, dest port, Protocol ID].
virtual int	close ()=0
	Close the QoS Session.
virtual ACE_QoS	qos () const =0
	Returns the QoS in the current session.
virtual int	qos (ACE_SOCK *socket, ACE_QoS_Manager *qos_manager, const ACE_QoS &ace_qos)=0
virtual void	qos (const ACE_QoS &ace_qos)=0
virtual int	update_qos ()=0
virtual ACE_End_Point_Type	flags () const =0
	Get/Set methods for the flags_.
virtual void	flags (const ACE_End_Point_Type flags)=0
virtual int	session_id () const =0
	Get the session id.
virtual void	session_id (const int session_id)=0
	Set the session id.
virtual ACE_HANDLE	rsvp_events_handle ()=0
	Get the file descriptor on which RSVP events will occur.
virtual void	rsvp_event_type (RSVP_Event_Type event_type)=0
virtual RSVP_Event_Type	rsvp_event_type ()=0
	Set the RAPI event that last occurred.
virtual ACE_INET_Addr	dest_addr () const =0
	Get the RAPI event that last occurred.
virtual void	dest_addr (const ACE_INET_Addr &dest_addr)=0
	Set the destination address for this session.
virtual u_short	source_port () const =0
	Get the source port for this session.
virtual void	source_port (const u_short &source_port)=0
	Set the source port for this session.
virtual ACE_INET_Addr *	source_addr () const =0
virtual void	source_addr (ACE_INET_Addr *source_addr)=0
	Set the source port for this session.
virtual int	version ()=0

Protected Attributes
u_short	source_port_
	Source port if this is a Sender session. Used for rapi_sender ().
int	session_id_
	session id for the session.
ACE_INET_Addr	dest_addr_
	Destination address for this session.
ACE_INET_Addr *	src_addr_
	Source address for this session.
ACE_Protocol_ID	protocol_id_
	Is this a TCP or a UDP session.
ACE_QoS	qos_
	QoS for this session.
ACE_End_Point_Type	flags_
	Specifies if this is a sending/receiving/both session.
RSVP_Event_Type	rsvp_event_type_

Detailed Description

A QoS Session object.

This class defines the interface for a QoS Session. It abstracts the notion of QoS on different platforms and presents a simple, easy-to-use API. Current [RAPI,GQoS] and future implementations will conform to this interface.

Member Enumeration Documentation

ACE_End_Point_Type

enum ACE_QoS_Session::ACE_End_Point_Type

A flag to indicate if this endpoint is a sender or a receiver or both.

Enumerator
ACE_QOS_SENDER
ACE_QOS_RECEIVER
ACE_QOS_BOTH

RSVP_Event_Type

enum ACE_QoS_Session::RSVP_Event_Type

Enumerator
RSVP_PATH_EVENT
RSVP_RESV_EVENT
RSVP_RESV_CONFIRM
RSVP_RESV_ERROR
RSVP_PATH_ERROR

Constructor & Destructor Documentation

~ACE_QoS_Session()

virtual ACE_QoS_Session::~ACE_QoS_Session ( )

inlinevirtual

to shutup g++.

Member Function Documentation

close()

virtual int ACE_QoS_Session::close ( )

pure virtual

Close the QoS Session.

Implemented in ACE_GQoS_Session.

dest_addr() [1/2]

virtual ACE_INET_Addr ACE_QoS_Session::dest_addr ( ) const

pure virtual

Get the RAPI event that last occurred.

Get the destination address for this session.

Implemented in ACE_GQoS_Session.

dest_addr() [2/2]

virtual void ACE_QoS_Session::dest_addr ( const ACE_INET_Addr & dest_addr )

pure virtual

Set the destination address for this session.

Implemented in ACE_GQoS_Session.

flags() [1/2]

virtual ACE_End_Point_Type ACE_QoS_Session::flags ( ) const

pure virtual

Get/Set methods for the flags_.

Implemented in ACE_GQoS_Session.

flags() [2/2]

virtual void ACE_QoS_Session::flags ( const ACE_End_Point_Type flags )

pure virtual

Implemented in ACE_GQoS_Session.

open()

virtual int ACE_QoS_Session::open ( ACE_INET_Addr dest_addr, ACE_Protocol_ID protocol_id )

pure virtual

Open a QoS session [dest IP, dest port, Protocol ID].

Implemented in ACE_GQoS_Session.

qos() [1/3]

virtual ACE_QoS ACE_QoS_Session::qos ( ) const

pure virtual

Returns the QoS in the current session.

Implemented in ACE_GQoS_Session.

qos() [2/3]

virtual int ACE_QoS_Session::qos ( ACE_SOCK * socket, ACE_QoS_Manager * qos_manager, const ACE_QoS & ace_qos )

pure virtual

Set QoS for the current session. The qos manager is used to confirm if this QoS session was subscribed to by the socket.

Implemented in ACE_GQoS_Session.

qos() [3/3]

virtual void ACE_QoS_Session::qos ( const ACE_QoS & ace_qos )

pure virtual

Sets the QoS for this session object to ace_qos. Does not interfere with the QoS in the underlying socket. This call is useful to update the QoS object when the underlying socket QoS is being set through a mechanism other than the previous qos () method e.g. inside the dgram_mcast.subscribe () where the QoS for the socket is set through ACE_OS::join_leaf ().

Implemented in ACE_GQoS_Session.

rsvp_event_type() [1/2]

virtual RSVP_Event_Type ACE_QoS_Session::rsvp_event_type ( )

pure virtual

Set the RAPI event that last occurred.

Implemented in ACE_GQoS_Session.

rsvp_event_type() [2/2]

virtual void ACE_QoS_Session::rsvp_event_type ( RSVP_Event_Type event_type )

pure virtual

Implemented in ACE_GQoS_Session.

rsvp_events_handle()

virtual ACE_HANDLE ACE_QoS_Session::rsvp_events_handle ( )

pure virtual

Get the file descriptor on which RSVP events will occur.

Implemented in ACE_GQoS_Session.

session_id() [1/2]

virtual int ACE_QoS_Session::session_id ( ) const

pure virtual

Get the session id.

Implemented in ACE_GQoS_Session.

session_id() [2/2]

virtual void ACE_QoS_Session::session_id ( const int session_id )

pure virtual

Set the session id.

Implemented in ACE_GQoS_Session.

source_addr() [1/2]

virtual ACE_INET_Addr * ACE_QoS_Session::source_addr ( ) const

pure virtual

Implemented in ACE_GQoS_Session.

source_addr() [2/2]

virtual void ACE_QoS_Session::source_addr ( ACE_INET_Addr * source_addr )

pure virtual

Set the source port for this session.

Implemented in ACE_GQoS_Session.

source_port() [1/2]

virtual u_short ACE_QoS_Session::source_port ( ) const

pure virtual

Get the source port for this session.

Implemented in ACE_GQoS_Session.

source_port() [2/2]

virtual void ACE_QoS_Session::source_port ( const u_short & source_port )

pure virtual

Set the source port for this session.

Implemented in ACE_GQoS_Session.

update_qos()

virtual int ACE_QoS_Session::update_qos ( )

pure virtual

This is called from handle_qos () method of the the QoS Event Handler. Invoking this method is an indication of a QoS event occurring, that may have resulted in a change of QoS for the underlying session. This method updates the QoS object associated with this session.

Implemented in ACE_GQoS_Session.

version()

virtual int ACE_QoS_Session::version ( )

pure virtual

Returns the version of the underlying RSVP implementation. Is meaningful only when the underlying implementation has versioning.

Implemented in ACE_GQoS_Session.

Member Data Documentation

dest_addr_

ACE_INET_Addr ACE_QoS_Session::dest_addr_

protected

Destination address for this session.

flags_

ACE_End_Point_Type ACE_QoS_Session::flags_

protected

Specifies if this is a sending/receiving/both session.

protocol_id_

ACE_Protocol_ID ACE_QoS_Session::protocol_id_

protected

Is this a TCP or a UDP session.

qos_

ACE_QoS ACE_QoS_Session::qos_

protected

QoS for this session.

rsvp_event_type_

RSVP_Event_Type ACE_QoS_Session::rsvp_event_type_

protected

session_id_

int ACE_QoS_Session::session_id_

protected

session id for the session.

source_port_

u_short ACE_QoS_Session::source_port_

protected

Source port if this is a Sender session. Used for rapi_sender ().

src_addr_

ACE_INET_Addr* ACE_QoS_Session::src_addr_

protected

Source address for this session.

---

The documentation for this class was generated from the following file:

• QoS_Session.h
