AVStreams::StreamEndPoint Interface Reference

import <AVStreams.idl;

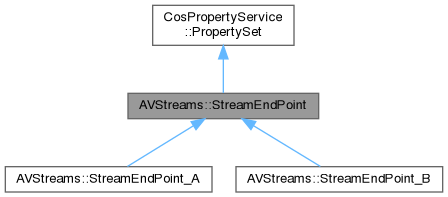

Inheritance diagram for AVStreams::StreamEndPoint:

Collaboration diagram for AVStreams::StreamEndPoint:

Public Member Functions
void	stop (in flowSpec the_spec) raises (noSuchFlow)
	Stop the stream. Empty the_spec means, for all the flows.
void	start (in flowSpec the_spec) raises (noSuchFlow)
	Start the stream, Empty the_spec means, for all the flows.
void	destroy (in flowSpec the_spec) raises (noSuchFlow)
	Destroy the stream, Empty the_spec means, for all the flows.
boolean	connect (in StreamEndPoint responder, inout streamQoS qos_spec, in flowSpec the_spec) raises (noSuchFlow, QoSRequestFailed, streamOpFailed)
	Called by StreamCtrl. responder is the peer to connect with.
boolean	request_connection (in StreamEndPoint initiator, in boolean is_mcast, inout streamQoS qos, inout flowSpec the_spec) raises (streamOpDenied, noSuchFlow, QoSRequestFailed, FPError)
boolean	modify_QoS (inout streamQoS new_qos, in flowSpec the_flows) raises (noSuchFlow, QoSRequestFailed)
	Change the transport qos on a stream.
boolean	set_protocol_restriction (in protocolSpec the_pspec)
	Used to restrict the set of protocols.
void	disconnect (in flowSpec the_spec) raises (noSuchFlow, streamOpFailed)
	Disconnect the flows.
void	set_FPStatus (in flowSpec the_spec, in string fp_name, in any fp_settings) raises (noSuchFlow, FPError)
	Used to control the SFP parameters.
Object	get_fep (in string flow_name) raises (notSupported, noSuchFlow)
	Not implemented in the light profile, throws notsupported.
string	add_fep (in Object the_fep) raises (notSupported, streamOpFailed)
	Not implemented in the light profile, throws notsupported.
void	remove_fep (in string fep_name) raises (notSupported, streamOpFailed)
	Not implemented in the light profile, throws notsupported.
void	set_negotiator (in Negotiator new_negotiator)
	Used to "attach" a negotiator to the endpoint.
void	set_key (in string flow_name, in key the_key)
	Used for public key encryption.
void	set_source_id (in long source_id)

Member Function Documentation

add_fep()

string AVStreams::StreamEndPoint::add_fep	(	in Object	the_fep	)
raises	(	notSupported,
		streamOpFailed )

Not implemented in the light profile, throws notsupported.

Can fail for reasons {duplicateFepName, duplicateRef}

connect()

boolean AVStreams::StreamEndPoint::connect	(	in StreamEndPoint	responder,
		inout streamQoS	qos_spec,
		in flowSpec	the_spec )
raises	(	noSuchFlow,
		QoSRequestFailed,
		streamOpFailed )

Called by StreamCtrl. responder is the peer to connect with.

destroy()

void AVStreams::StreamEndPoint::destroy	(	in flowSpec	the_spec	)
raises	(	noSuchFlow )

Destroy the stream, Empty the_spec means, for all the flows.

disconnect()

void AVStreams::StreamEndPoint::disconnect	(	in flowSpec	the_spec	)
raises	(	noSuchFlow,
		streamOpFailed )

Disconnect the flows.

get_fep()

Object AVStreams::StreamEndPoint::get_fep	(	in string	flow_name	)
raises	(	notSupported,
		noSuchFlow )

Not implemented in the light profile, throws notsupported.

modify_QoS()

boolean AVStreams::StreamEndPoint::modify_QoS	(	inout streamQoS	new_qos,
		in flowSpec	the_flows )
raises	(	noSuchFlow,
		QoSRequestFailed )

Change the transport qos on a stream.

remove_fep()

void AVStreams::StreamEndPoint::remove_fep	(	in string	fep_name	)
raises	(	notSupported,
		streamOpFailed )

Not implemented in the light profile, throws notsupported.

request_connection()

boolean AVStreams::StreamEndPoint::request_connection	(	in StreamEndPoint	initiator,
		in boolean	is_mcast,
		inout streamQoS	qos,
		inout flowSpec	the_spec )
raises	(	streamOpDenied,
		noSuchFlow,
		QoSRequestFailed,
		FPError )

Called by the peer StreamEndPoint. The flow_spec indicates the flows (which contain transport addresses etc.).

set_FPStatus()

void AVStreams::StreamEndPoint::set_FPStatus	(	in flowSpec	the_spec,
		in string	fp_name,
		in any	fp_settings )
raises	(	noSuchFlow,
		FPError )

Used to control the SFP parameters.

set_key()

void AVStreams::StreamEndPoint::set_key	(	in string	flow_name,
		in key	the_key )

Used for public key encryption.

set_negotiator()

void AVStreams::StreamEndPoint::set_negotiator

(

in Negotiator

new_negotiator

)

Used to "attach" a negotiator to the endpoint.

set_protocol_restriction()

boolean AVStreams::StreamEndPoint::set_protocol_restriction

(

in protocolSpec

the_pspec

)

Used to restrict the set of protocols.

set_source_id()

void AVStreams::StreamEndPoint::set_source_id

(

in long

source_id

)

Used to set a unique id for packets sent by this streamendpoint.

start()

void AVStreams::StreamEndPoint::start	(	in flowSpec	the_spec	)
raises	(	noSuchFlow )

Start the stream, Empty the_spec means, for all the flows.

stop()

void AVStreams::StreamEndPoint::stop	(	in flowSpec	the_spec	)
raises	(	noSuchFlow )

Stop the stream. Empty the_spec means, for all the flows.

---

The documentation for this interface was generated from the following file:

• AVStreams.idl
