TAO_Connector_Registry Class Reference

Per-ORB TAO Connector Registry. More...

#include <Connector_Registry.h>

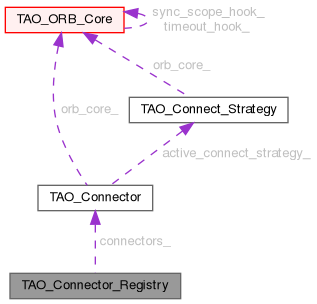

Collaboration diagram for TAO_Connector_Registry:

Public Member Functions
	TAO_Connector_Registry ()
	Default constructor.
	~TAO_Connector_Registry ()
	Default destructor.
TAO_Connector *	get_connector (CORBA::ULong tag) const
	Return the connector bridges.
int	open (TAO_ORB_Core *orb_core)
	Initialize all registered connectors.
int	close_all ()
	Close all open connectors.
int	make_mprofile (const char *ior, TAO_MProfile &mprofile)
TAO_Profile *	create_profile (TAO_InputCDR &cdr)
	Create a profile based on the contents of cdr.
char	object_key_delimiter (const char *ior)
TAO_ConnectorSetIterator	begin () const
TAO_ConnectorSetIterator	end () const

Private Member Functions
	TAO_Connector_Registry (const TAO_Connector_Registry &)=delete
void	operator= (const TAO_Connector_Registry &)=delete
	TAO_Connector_Registry (TAO_Connector_Registry &&)=delete
void	operator= (TAO_Connector_Registry &&)=delete

Private Attributes
TAO_Connector **	connectors_
	List of connectors that are currently open.
size_t	size_
	Number of connectors that are currently open.

Detailed Description

Per-ORB TAO Connector Registry.

Connector Registry and Generic Connector interface definitions. All loaded ESIOP or GIOP connector bridges must register with this object. This class is able to dynamically load a set of concrete protocol connectors which have registered with the service configurator and added their Factory name to the Resource_Factory line of the svc.conf file.

Constructor & Destructor Documentation

TAO_Connector_Registry() [1/3]

TAO_Connector_Registry::TAO_Connector_Registry

(

)

Default constructor.

~TAO_Connector_Registry()

TAO_Connector_Registry::~TAO_Connector_Registry

(

)

Default destructor.

TAO_Connector_Registry() [2/3]

TAO_Connector_Registry::TAO_Connector_Registry ( const TAO_Connector_Registry & )

privatedelete

TAO_Connector_Registry() [3/3]

TAO_Connector_Registry::TAO_Connector_Registry ( TAO_Connector_Registry && )

privatedelete

Member Function Documentation

begin()

TAO_ConnectorSetIterator TAO_Connector_Registry::begin

(

)

const

close_all()

int TAO_Connector_Registry::close_all

(

)

Close all open connectors.

create_profile()

TAO_Profile * TAO_Connector_Registry::create_profile

(

TAO_InputCDR &

cdr

)

Create a profile based on the contents of cdr.

end()

TAO_ConnectorSetIterator TAO_Connector_Registry::end

(

)

const

get_connector()

TAO_Connector * TAO_Connector_Registry::get_connector

(

CORBA::ULong

tag

)

const

Return the connector bridges.

make_mprofile()

int TAO_Connector_Registry::make_mprofile	(	const char *	ior,
		TAO_MProfile &	mprofile )

Parse a string containing a URL style IOR and return an MProfile.

object_key_delimiter()

char TAO_Connector_Registry::object_key_delimiter

(

const char *

ior

)

Obtain the object key delimiter used by the protocol specified in the provided URL style IOR.

open()

int TAO_Connector_Registry::open

(

TAO_ORB_Core *

orb_core

)

Initialize all registered connectors.

operator=() [1/2]

void TAO_Connector_Registry::operator= ( const TAO_Connector_Registry & )

privatedelete

operator=() [2/2]

void TAO_Connector_Registry::operator= ( TAO_Connector_Registry && )

privatedelete

Member Data Documentation

connectors_

TAO_Connector** TAO_Connector_Registry::connectors_

private

List of connectors that are currently open.

size_

size_t TAO_Connector_Registry::size_

private

Number of connectors that are currently open.

---

The documentation for this class was generated from the following files:

• Connector_Registry.h
• Connector_Registry.cpp
• Connector_Registry.inl
