ACE_Token_Invariant_Manager Class Reference

Token Invariants. More...

#include <Token_Invariants.h>

Inheritance diagram for ACE_Token_Invariant_Manager:

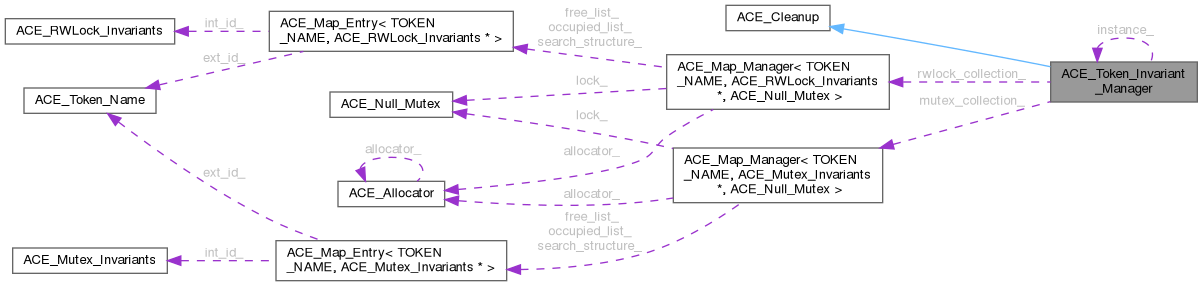

Collaboration diagram for ACE_Token_Invariant_Manager:

Public Member Functions
int	acquired (const ACE_Token_Proxy *proxy)
void	releasing (const ACE_Token_Proxy *proxy)
	Updates internal database.
int	mutex_acquired (const ACE_TCHAR *token_name)
void	mutex_releasing (const ACE_TCHAR *token_name)
	Updates internal database.
int	reader_acquired (const ACE_TCHAR *token_name)
int	writer_acquired (const ACE_TCHAR *token_name)
void	rwlock_releasing (const ACE_TCHAR *token_name)
	Updates internal database.
void	dump () const
	Dump the state of the class.
	ACE_Token_Invariant_Manager ()
	Prevent non-singleton construction.
virtual	~ACE_Token_Invariant_Manager ()
	Destruction.
Public Member Functions inherited from ACE_Cleanup
	ACE_Cleanup ()
	No-op constructor.
virtual	~ACE_Cleanup ()
	Destructor.
virtual void	cleanup (void *param=0)
	Cleanup method that, by default, simply deletes itself.

Static Public Member Functions
static ACE_Token_Invariant_Manager *	instance ()
	Singleton access point.

Protected Types
typedef ACE_Token_Name	TOKEN_NAME
	This may be changed to a template type.
typedef ACE_Map_Manager< TOKEN_NAME, ACE_Mutex_Invariants *, ACE_Null_Mutex >	MUTEX_COLLECTION
	COLLECTION maintains a mapping from token names to mutexes.
typedef ACE_Map_Manager< TOKEN_NAME, ACE_RWLock_Invariants *, ACE_Null_Mutex >	RWLOCK_COLLECTION
	COLLECTION maintains a mapping from token names to mutexes.

Protected Member Functions
int	get_mutex (const ACE_TCHAR *token_name, ACE_Mutex_Invariants *&inv)
	Return or create.
int	get_rwlock (const ACE_TCHAR *token_name, ACE_RWLock_Invariants *&inv)
	Return or create.

Protected Attributes
ACE_TOKEN_CONST::MUTEX	lock_
	ACE_Mutex_Token used to lock internal data structures.
MUTEX_COLLECTION	mutex_collection_
	MUTEX_COLLECTION maintains a mapping from token names to mutexes.
RWLOCK_COLLECTION	rwlock_collection_
	MUTEX_COLLECTION maintains a mapping from token names to mutexes.

Static Protected Attributes
static ACE_Token_Invariant_Manager *	instance_ = 0
	Singleton pointer.

Detailed Description

Token Invariants.

The Token Invariant Manager allows applications to test that invariants are always satisfied. Currently, Token_Invariants can test mutexes and readers/writer locks. Does not test recursive acquisition. Note that this class does not ever clean its database. Until destroyed, it's size will forever increase.

Member Typedef Documentation

MUTEX_COLLECTION

typedef ACE_Map_Manager<TOKEN_NAME, ACE_Mutex_Invariants *, ACE_Null_Mutex> ACE_Token_Invariant_Manager::MUTEX_COLLECTION

protected

COLLECTION maintains a mapping from token names to mutexes.

RWLOCK_COLLECTION

typedef ACE_Map_Manager<TOKEN_NAME, ACE_RWLock_Invariants *, ACE_Null_Mutex> ACE_Token_Invariant_Manager::RWLOCK_COLLECTION

protected

COLLECTION maintains a mapping from token names to mutexes.

TOKEN_NAME

typedef ACE_Token_Name ACE_Token_Invariant_Manager::TOKEN_NAME

protected

This may be changed to a template type.

Constructor & Destructor Documentation

ACE_Token_Invariant_Manager()

ACE_Token_Invariant_Manager::ACE_Token_Invariant_Manager

(

)

Prevent non-singleton construction.

~ACE_Token_Invariant_Manager()

ACE_Token_Invariant_Manager::~ACE_Token_Invariant_Manager ( )

virtual

Destruction.

Member Function Documentation

acquired()

int ACE_Token_Invariant_Manager::acquired

(

const ACE_Token_Proxy *

proxy

)

Returns 1 on success, 0 when an invariant has been violated and -1 on error.

dump()

void ACE_Token_Invariant_Manager::dump

(

)

const

Dump the state of the class.

get_mutex()

int ACE_Token_Invariant_Manager::get_mutex ( const ACE_TCHAR * token_name, ACE_Mutex_Invariants *& inv )

protected

Return or create.

get_rwlock()

int ACE_Token_Invariant_Manager::get_rwlock ( const ACE_TCHAR * token_name, ACE_RWLock_Invariants *& inv )

protected

Return or create.

instance()

ACE_Token_Invariant_Manager * ACE_Token_Invariant_Manager::instance ( )

static

Singleton access point.

mutex_acquired()

int ACE_Token_Invariant_Manager::mutex_acquired

(

const ACE_TCHAR *

token_name

)

Returns 1 on success, 0 when an invariant has been violated and -1 on error.

mutex_releasing()

void ACE_Token_Invariant_Manager::mutex_releasing

(

const ACE_TCHAR *

token_name

)

Updates internal database.

reader_acquired()

int ACE_Token_Invariant_Manager::reader_acquired

(

const ACE_TCHAR *

token_name

)

Returns 1 on success, 0 when an invariant has been violated and -1 on error.

releasing()

void ACE_Token_Invariant_Manager::releasing

(

const ACE_Token_Proxy *

proxy

)

Updates internal database.

rwlock_releasing()

void ACE_Token_Invariant_Manager::rwlock_releasing

(

const ACE_TCHAR *

token_name

)

Updates internal database.

writer_acquired()

int ACE_Token_Invariant_Manager::writer_acquired

(

const ACE_TCHAR *

token_name

)

Returns 1 on success, 0 when an invariant has been violated and -1 on error.

Member Data Documentation

instance_

ACE_Token_Invariant_Manager * ACE_Token_Invariant_Manager::instance_ = 0

staticprotected

Singleton pointer.

lock_

ACE_TOKEN_CONST::MUTEX ACE_Token_Invariant_Manager::lock_

protected

ACE_Mutex_Token used to lock internal data structures.

mutex_collection_

MUTEX_COLLECTION ACE_Token_Invariant_Manager::mutex_collection_

protected

MUTEX_COLLECTION maintains a mapping from token names to mutexes.

rwlock_collection_

RWLOCK_COLLECTION ACE_Token_Invariant_Manager::rwlock_collection_

protected

MUTEX_COLLECTION maintains a mapping from token names to mutexes.

---

The documentation for this class was generated from the following files:

• Token_Invariants.h
• Token_Invariants.cpp
