ACE_Token_Collection Class Reference

Allows atomic token group operations AND provides a ACE_Token manager interface. More...

#include <Token_Collection.h>

Inheritance diagram for ACE_Token_Collection:

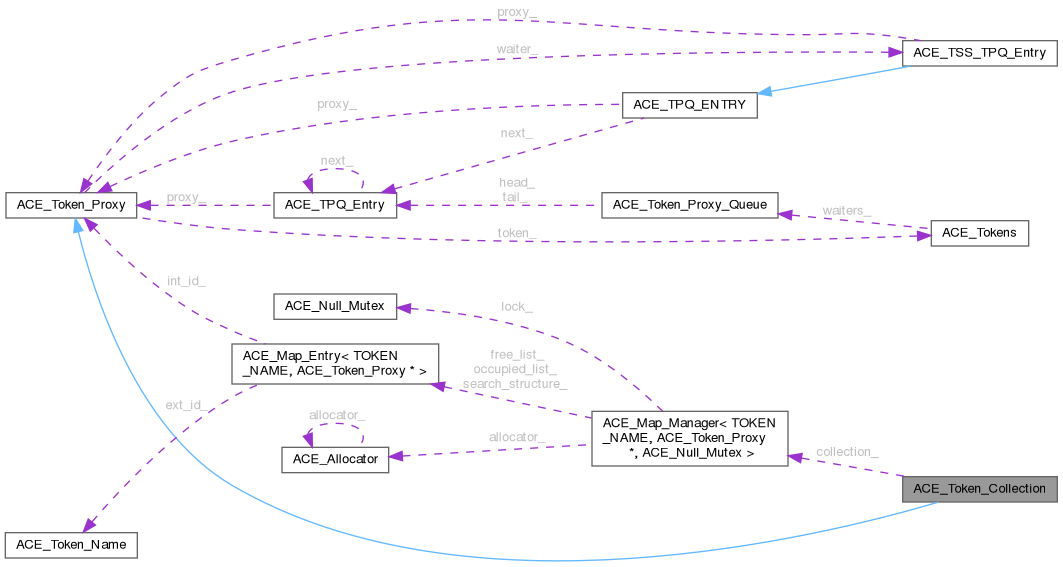

Collaboration diagram for ACE_Token_Collection:

Public Member Functions
	ACE_Token_Collection (bool debug=false, const ACE_TCHAR *name=0)
int	insert (ACE_Token_Proxy &token)
int	extract (const ACE_TCHAR *token_name, ACE_Token_Proxy *&proxy)
ACE_Token_Proxy *	is_member (const ACE_TCHAR *token_name)
	Returns the proxy if true. 0 otherwise.
int	is_member (const ACE_Token_Proxy &token)
virtual int	acquire (int notify=0, void(*sleep_hook)(void *)=0, ACE_Synch_Options &options=ACE_Synch_Options::defaults)
virtual int	acquire (const ACE_TCHAR *token_name, int notify=0, void(*sleep_hook)(void *)=0, ACE_Synch_Options &options=ACE_Synch_Options::defaults)
virtual int	tryacquire (void(*sleep_hook)(void *)=0)
	Try to acquire all tokens in collection.
virtual int	tryacquire (const ACE_TCHAR *token_name, void(*sleep_hook)(void *)=0)
	Try to acquire token_name.
virtual int	renew (int requeue_position=0, ACE_Synch_Options &options=ACE_Synch_Options::defaults)
virtual int	renew (const ACE_TCHAR *token_name, int requeue_position=0, ACE_Synch_Options &options=ACE_Synch_Options::defaults)
virtual int	release (ACE_Synch_Options &options=ACE_Synch_Options::defaults)
virtual int	release (const ACE_TCHAR *token_name, ACE_Synch_Options &options=ACE_Synch_Options::defaults)
	~ACE_Token_Collection ()
void	dump () const
	Dump the state of the class.
virtual const ACE_TCHAR *	name () const
Public Member Functions inherited from ACE_Token_Proxy
	ACE_Token_Proxy ()
	Construction.
virtual	~ACE_Token_Proxy ()
	Destructor.
virtual int	open (const ACE_TCHAR *name, int ignore_deadlock=0, int debug=0)
virtual int	remove (ACE_Synch_Options &options=ACE_Synch_Options::defaults)
	Calls remove on the token.
virtual int	acquire_read (int notify=0, void(*sleep_hook)(void *)=0, ACE_Synch_Options &options=ACE_Synch_Options::defaults)
virtual int	acquire_write (int notify=0, void(*sleep_hook)(void *)=0, ACE_Synch_Options &options=ACE_Synch_Options::defaults)
virtual int	tryacquire_read (void(*sleep_hook)(void *)=0)
virtual int	tryacquire_write (void(*sleep_hook)(void *)=0)
virtual const ACE_TCHAR *	client_id () const
virtual void	client_id (const ACE_TCHAR *client_id)
virtual void	sleep_hook ()
virtual void	token_acquired (ACE_TPQ_Entry *)
virtual const ACE_TCHAR *	owner_id ()
	The client id of the current token holder.
void	dump () const
	Dump the state of the class.
virtual int	type () const

Protected Types
typedef ACE_Token_Name	TOKEN_NAME
typedef ACE_Map_Manager< TOKEN_NAME, ACE_Token_Proxy *, ACE_Null_Mutex >	COLLECTION
	COLLECTION maintains a mapping from token names to ACE_Tokens*.

Protected Member Functions
virtual ACE_Token_Proxy *	clone () const
	Return a dynamically allocated clone of the derived class.
virtual ACE_Tokens *	create_token (const ACE_TCHAR *name)
Protected Member Functions inherited from ACE_Token_Proxy
	ACE_Token_Proxy (const ACE_Token_Proxy &)
	Duplication.
int	handle_options (ACE_Synch_Options &options, ACE_TOKEN_CONST::COND_VAR &cv)
	Handles cond_var waits.

Protected Attributes
COLLECTION	collection_
	COLLECTION maintains a mapping from token names to ACE_Tokens*.
bool	debug_
	Whether to print out debug messages or not.
ACE_TCHAR	name_ [ACE_MAXTOKENNAMELEN]
	Name of the collection.
Protected Attributes inherited from ACE_Token_Proxy
int	ignore_deadlock_
	If this is set, we ignore deadlock.
int	debug_
	Print a bunch of debug messages.
ACE_Tokens *	token_
ACE_TSS_TPQ_Entry	waiter_
	Waiter info used for asynchronous transactions.

Detailed Description

Allows atomic token group operations AND provides a ACE_Token manager interface.

There are two types of operations offered by ACE_Token_Collection. The first is atomic operations on collections of Token_Proxies. In this respect, the ACE_Token_Collection can be thought of as a single token consisting of multiple Token_Proxies. The second role of the ACE_Token_Collection is as a ACE_Token manager. ACE_Token_Collection allows individual operations on single members of a collection of Token_Proxies. This provides a single access point for operations on multiple tokens.

Bug

Although ACE_Token_Collection inherits from ACE_Token_Proxy, it can not be including in a collection. This is because <clone> returns zero for now.

Member Typedef Documentation

COLLECTION

typedef ACE_Map_Manager<TOKEN_NAME, ACE_Token_Proxy *, ACE_Null_Mutex> ACE_Token_Collection::COLLECTION

protected

COLLECTION maintains a mapping from token names to ACE_Tokens*.

TOKEN_NAME

typedef ACE_Token_Name ACE_Token_Collection::TOKEN_NAME

protected

Constructor & Destructor Documentation

ACE_Token_Collection()

ACE_Token_Collection::ACE_Token_Collection	(	bool	debug = false,
		const ACE_TCHAR *	name = 0 )

debug print out verbose debugging messages. name will give a name to the collection. Collections don't really need names, but are sometimes useful for debugging.

~ACE_Token_Collection()

ACE_Token_Collection::~ACE_Token_Collection

(

)

Member Function Documentation

acquire() [1/2]

int ACE_Token_Collection::acquire ( const ACE_TCHAR * token_name, int notify = 0, void(*)(void *) sleep_hook = 0, ACE_Synch_Options & options = ACE_Synch_Options::defaults )

virtual

Acquire the token corresponding to token_name. The other parameters are passed to <token>acquire.

acquire() [2/2]

int ACE_Token_Collection::acquire ( int notify = 0, void(*)(void *) sleep_hook = 0, ACE_Synch_Options & options = ACE_Synch_Options::defaults )

virtual

Acquire "atomically" all resources in the collection. This is only successfull if all tokens in the collection could be acquired. options contains the blocking semantics, timeout value, etc. Returns: 0 on success, -1 on failure with errno == problem. If and error or deadlock occurs for one of the tokens, all the tokens will be released and the method will return -1. Note that returning on detection of deadlock prevents livelock between competing collections. If a collection returns after detecting deadlock, it is the application's responsibility to not to blindly loop on the collection::acquire operation. In other words, once the collection reports deadlock, it is out of our hands.

Reimplemented from ACE_Token_Proxy.

clone()

ACE_Token_Proxy * ACE_Token_Collection::clone ( ) const

protectedvirtual

Return a dynamically allocated clone of the derived class.

Implements ACE_Token_Proxy.

create_token()

ACE_Tokens * ACE_Token_Collection::create_token ( const ACE_TCHAR * name )

protectedvirtual

Make the correct type of ACE_Tokens. This is called by the Token Manager.

Implements ACE_Token_Proxy.

dump()

void ACE_Token_Collection::dump

(

)

const

Dump the state of the class.

extract()

int ACE_Token_Collection::extract	(	const ACE_TCHAR *	token_name,
		ACE_Token_Proxy *&	proxy )

Removes the ACE_Token matching the given token_name from the collection. On success, extract returns 0. On failure (token_name was not in the collection,) extract returns -1. On success, the state of the token found is copied into proxy. The returned ACE_Token_Proxy* must be deleted by the user.

insert()

int ACE_Token_Collection::insert

(

ACE_Token_Proxy &

token

)

Insert a Token into the collection. All ACE_Token type operations performed on the collection will also be performed on the new_proxy until it is removed. Note that no operations performed prior to the insertion will be performed. Returns: 0 on success, -1 on failure with errno == problem. If a token proxy already exists in the collection with the same name, the insertion will fail. Also, <token> is copied. Note that during the copy, client_id's are not inherited. The client ID of the thread using the collection will be used. Client ID's can be changed explicity on each proxy using is_member.

is_member() [1/2]

ACE_Token_Proxy * ACE_Token_Collection::is_member

(

const ACE_TCHAR *

token_name

)

Returns the proxy if true. 0 otherwise.

is_member() [2/2]

int ACE_Token_Collection::is_member

(

const ACE_Token_Proxy &

token

)

Is the specified token in the collection? 1, yes. 0, no.

name()

const ACE_TCHAR * ACE_Token_Collection::name ( ) const

inlinevirtual

Return the name of the collection. Not very functionally important, but sometimes a useful debugging tool.

Reimplemented from ACE_Token_Proxy.

release() [1/2]

int ACE_Token_Collection::release ( ACE_Synch_Options & options = ACE_Synch_Options::defaults )

virtual

Releases "atomically" all resources in the collection. This is only successfull if all tokens in the collection could be released. options contains the blocking semantics, timeout value, etc. Returns: 0 on success, -1 on failure with errno == problem.

Reimplemented from ACE_Token_Proxy.

release() [2/2]

int ACE_Token_Collection::release ( const ACE_TCHAR * token_name, ACE_Synch_Options & options = ACE_Synch_Options::defaults )

virtual

Release the token corresponding to <token_name>. The other parameters are passed to <token>release.

renew() [1/2]

int ACE_Token_Collection::renew ( const ACE_TCHAR * token_name, int requeue_position = 0, ACE_Synch_Options & options = ACE_Synch_Options::defaults )

virtual

Renew the token corresponding to token_name. The other parameters are passed to <token>renew.

renew() [2/2]

int ACE_Token_Collection::renew ( int requeue_position = 0, ACE_Synch_Options & options = ACE_Synch_Options::defaults )

virtual

Renews "atomically" all resources in the collection. This is only successfull if all tokens in the collection could be renewed. options contains the blocking semantics, timeout value, etc. Returns: 0 on success, -1 on failure with errno == problem.

Reimplemented from ACE_Token_Proxy.

tryacquire() [1/2]

int ACE_Token_Collection::tryacquire ( const ACE_TCHAR * token_name, void(*)(void *) sleep_hook = 0 )

virtual

Try to acquire token_name.

tryacquire() [2/2]

int ACE_Token_Collection::tryacquire ( void(*)(void *) sleep_hook = 0 )

virtual

Try to acquire all tokens in collection.

Reimplemented from ACE_Token_Proxy.

Member Data Documentation

collection_

COLLECTION ACE_Token_Collection::collection_

protected

COLLECTION maintains a mapping from token names to ACE_Tokens*.

debug_

bool ACE_Token_Collection::debug_

protected

Whether to print out debug messages or not.

name_

ACE_TCHAR ACE_Token_Collection::name_[ACE_MAXTOKENNAMELEN]

protected

Name of the collection.

---

The documentation for this class was generated from the following files:

• Token_Collection.h
• Token_Collection.cpp
• Token_Collection.inl
