ACE_SPIPE_Acceptor Class Reference

A factory class that produces ACE_SPIPE_Stream objects. More...

#include <SPIPE_Acceptor.h>

Inheritance diagram for ACE_SPIPE_Acceptor:

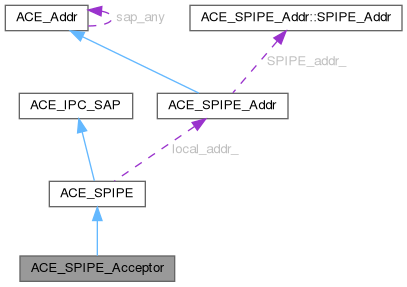

Collaboration diagram for ACE_SPIPE_Acceptor:

Public Types
typedef ACE_SPIPE_Addr	PEER_ADDR
typedef ACE_SPIPE_Stream	PEER_STREAM

Public Member Functions
	ACE_SPIPE_Acceptor ()
	Default constructor.
	ACE_SPIPE_Acceptor (const ACE_SPIPE_Addr &local_sap, int reuse_addr=1, int perms=ACE_DEFAULT_FILE_PERMS, LPSECURITY_ATTRIBUTES sa=0, int pipe_mode=PIPE_TYPE_MESSAGE|PIPE_READMODE_MESSAGE)
	Initiate a passive-mode STREAM pipe listener.
int	open (const ACE_SPIPE_Addr &local_sap, int reuse_addr=1, int perms=ACE_DEFAULT_FILE_PERMS, LPSECURITY_ATTRIBUTES sa=0, int pipe_mode=PIPE_TYPE_MESSAGE|PIPE_READMODE_MESSAGE)
	Initiate a passive-mode STREAM pipe listener.
int	close ()
	Close down the passive-mode STREAM pipe listener.
int	remove ()
	Remove the underlying mounted pipe from the file system.
int	accept (ACE_SPIPE_Stream &ipc_sap_spipe, ACE_SPIPE_Addr *remote_addr=0, ACE_Time_Value *timeout=0, bool restart=true, bool reset_new_handle=false)
void	dump () const
	Dump the state of an object.
Public Member Functions inherited from ACE_SPIPE
int	close ()
	Close down the SPIPE without removing the rendezvous point.
int	remove ()
int	get_local_addr (ACE_SPIPE_Addr &) const
	Return the local address of this endpoint.
int	disable (int signum) const
void	dump () const
	Dump the state of an object.
Public Member Functions inherited from ACE_IPC_SAP
int	control (int cmd, void *) const
	Interface for <ioctl>.
int	enable (int value) const
int	disable (int value) const
ACE_HANDLE	get_handle () const
	Get the underlying handle.
void	set_handle (ACE_HANDLE handle)
	Set the underlying handle.
void	dump () const
	Dump the state of an object.

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Public Attributes inherited from ACE_SPIPE
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Public Attributes inherited from ACE_IPC_SAP
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Private Member Functions
int	create_new_instance (int perms=0)
	Create a new instance of an SPIPE.

Additional Inherited Members
Protected Member Functions inherited from ACE_SPIPE
	ACE_SPIPE ()
	Ensure that this class is an abstract base class.
Protected Member Functions inherited from ACE_IPC_SAP
	ACE_IPC_SAP ()
	Default constructor.
	~ACE_IPC_SAP ()
	Protected destructor.
Protected Attributes inherited from ACE_SPIPE
ACE_SPIPE_Addr	local_addr_
	Our local address.

Detailed Description

A factory class that produces ACE_SPIPE_Stream objects.

ACE_SPIPE_Acceptor is a factory class that accepts SPIPE connections. Each accepted connection produces an ACE_SPIPE_Stream object.

Warning

Windows: Works only on Windows NT 4 and higher. To use this class with the ACE_Reactor framework, note that the handle to demultiplex on is an event handle and should be registered with the ACE_Reactor::register_handler (ACE_Event_Handler *, ACE_HANDLE) method.

Works on non-Windows platforms only when ACE_HAS_STREAM_PIPES is defined.

Member Typedef Documentation

PEER_ADDR

typedef ACE_SPIPE_Addr ACE_SPIPE_Acceptor::PEER_ADDR

PEER_STREAM

typedef ACE_SPIPE_Stream ACE_SPIPE_Acceptor::PEER_STREAM

Constructor & Destructor Documentation

ACE_SPIPE_Acceptor() [1/2]

ACE_SPIPE_Acceptor::ACE_SPIPE_Acceptor

(

)

Default constructor.

ACE_SPIPE_Acceptor() [2/2]

ACE_SPIPE_Acceptor::ACE_SPIPE_Acceptor	(	const ACE_SPIPE_Addr &	local_sap,
		int	reuse_addr = 1,
		int	perms = ACE_DEFAULT_FILE_PERMS,
		LPSECURITY_ATTRIBUTES	sa = 0,
		int	pipe_mode = PIPE_TYPE_MESSAGE | PIPE_READMODE_MESSAGE )

Initiate a passive-mode STREAM pipe listener.

Parameters

local_sap	The name of the pipe instance to open and listen on.
reuse_addr	Optional, and ignored. Needed for API compatibility with other acceptor classes.
perms	Optional, the protection mask to create the pipe with. Ignored on Windows.
sa	Optional, ignored on non-Windows. The SECURITY_ATTRIBUTES to create the named pipe instances with. This pointer is remembered and reused on each new named pipe instance, so only pass a value that remains valid as long as this object does.
pipe_mode	Optional, ignored on non-Windows. The NT pipe mode used when creating the pipe.

Member Function Documentation

accept()

int ACE_SPIPE_Acceptor::accept	(	ACE_SPIPE_Stream &	ipc_sap_spipe,
		ACE_SPIPE_Addr *	remote_addr = 0,
		ACE_Time_Value *	timeout = 0,
		bool	restart = true,
		bool	reset_new_handle = false )

Accept a new data transfer connection.

Parameters

ipc_sap_spipe	The ACE_SPIPE_Stream to initialize with the newly-accepted pipe.
remote_addr	Optional, accepts the address of the peer.
timeout	0 means block forever, {0, 0} means poll.
restart	1 means "restart if interrupted."

Return values

0	for success.
-1	for failure.

close()

int ACE_SPIPE_Acceptor::close

(

)

Close down the passive-mode STREAM pipe listener.

create_new_instance()

int ACE_SPIPE_Acceptor::create_new_instance ( int perms = 0 )

private

Create a new instance of an SPIPE.

dump()

void ACE_SPIPE_Acceptor::dump

(

)

const

Dump the state of an object.

open()

int ACE_SPIPE_Acceptor::open	(	const ACE_SPIPE_Addr &	local_sap,
		int	reuse_addr = 1,
		int	perms = ACE_DEFAULT_FILE_PERMS,
		LPSECURITY_ATTRIBUTES	sa = 0,
		int	pipe_mode = PIPE_TYPE_MESSAGE | PIPE_READMODE_MESSAGE )

Initiate a passive-mode STREAM pipe listener.

Parameters

local_sap	The name of the pipe instance to open and listen on.
reuse_addr	Optional, and ignored. Needed for API compatibility with other acceptor classes.
perms	Optional, the protection mask to create the pipe with. Ignored on Windows.
sa	Optional, ignored on non-Windows. The SECURITY_ATTRIBUTES to create the named pipe instances with. This pointer is remembered and reused on each new named pipe instance, so only pass a value that remains valid as long as this object does.
pipe_mode	Optional, ignored on non-Windows. The NT pipe mode used when creating the pipe.

Return values

0	for success.
-1	for failure.

remove()

int ACE_SPIPE_Acceptor::remove

(

)

Remove the underlying mounted pipe from the file system.

Member Data Documentation

ACE_ALLOC_HOOK_DECLARE

ACE_SPIPE_Acceptor::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

---

The documentation for this class was generated from the following files:

• SPIPE_Acceptor.h
• SPIPE_Acceptor.cpp
