Defines the member functions for the ACE_SOCK datagram abstraction. More...

#include <SOCK_Dgram_Bcast.h>

Inheritance diagram for ACE_SOCK_Dgram_Bcast:

[legend]

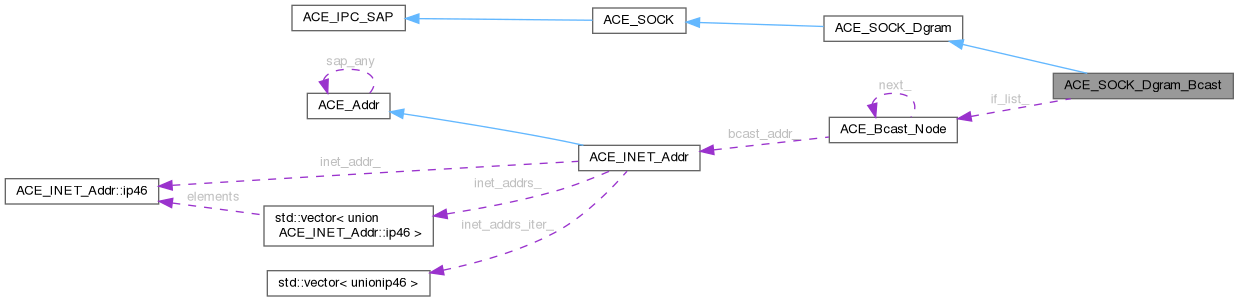

Collaboration diagram for ACE_SOCK_Dgram_Bcast:

[legend]

Public Member Functions
	ACE_SOCK_Dgram_Bcast ()
	Default constructor.

	ACE_SOCK_Dgram_Bcast (const ACE_Addr &local, int protocol_family=PF_INET, int protocol=0, int reuse_addr=0, const ACE_TCHAR *host_name=0)

	~ACE_SOCK_Dgram_Bcast ()
	Default dtor.

int	open (const ACE_Addr &local, int protocol_family=PF_INET, int protocol=0, int reuse_addr=0, const ACE_TCHAR *host_name=0)
	Initiate a connectionless datagram broadcast endpoint.

int	close ()
	Close up and release dynamically allocated resources.

ssize_t	send (const void *buf, size_t n, u_short portnum, int flags=0) const

ssize_t	send (const iovec iov[], int n, u_short portnum, int flags=0) const

ssize_t	send (const void *buf, size_t n, const ACE_Addr &addr, int flags=0) const

ssize_t	send (const iovec iov[], int n, const ACE_Addr &addr, int flags=0) const

void	dump () const
	Dump the state of an object.

Public Member Functions inherited from ACE_SOCK_Dgram
	ACE_SOCK_Dgram ()
	Default constructor.

	ACE_SOCK_Dgram (const ACE_Addr &local, int protocol_family=ACE_PROTOCOL_FAMILY_INET, int protocol=0, int reuse_addr=0, int ipv6_only=0)

	ACE_SOCK_Dgram (const ACE_Addr &local, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0, int ipv6_only=0)

int	open (const ACE_Addr &local, int protocol_family=ACE_PROTOCOL_FAMILY_INET, int protocol=0, int reuse_addr=0, int ipv6_only=0)

int	open (const ACE_Addr &local, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0, int ipv6_only=0)

	~ACE_SOCK_Dgram ()
	Default dtor.

ssize_t	send (const void *buf, size_t n, const ACE_Addr &addr, int flags=0) const
	Send an n byte buf to the datagram socket (uses <sendto(3)>).

ssize_t	recv (void *buf, size_t n, ACE_Addr &addr, int flags=0) const

ssize_t	recv (iovec io_vec, ACE_Addr &addr, int flags=0, const ACE_Time_Value timeout=0) const

ssize_t	send (const iovec iov[], int n, const ACE_Addr &addr, int flags=0) const

ssize_t	recv (iovec iov[], int n, ACE_Addr &addr, int flags=0, ACE_INET_Addr *to_addr=0) const

ssize_t	recv (void buf, size_t n, ACE_Addr &addr, int flags, const ACE_Time_Value timeout) const

ssize_t	send (const void buf, size_t n, const ACE_Addr &addr, int flags, const ACE_Time_Value timeout) const

ssize_t	send (const iovec buffers[], int buffer_count, size_t &number_of_bytes_sent, int flags, const ACE_Addr &addr, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const

ssize_t	recv (iovec buffers[], int buffer_count, size_t &number_of_bytes_recvd, int &flags, ACE_Addr &addr, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const

ssize_t	send (const void buf, size_t n, const ACE_Addr &addr, int flags, ACE_OVERLAPPED overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
	Send an n byte buf to the datagram socket (uses <WSASendTo>).

ssize_t	recv (void buf, size_t n, ACE_Addr &addr, int flags, ACE_OVERLAPPED overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const

void	dump () const
	Dump the state of an object.

int	set_nic (const ACE_TCHAR *net_if, int addr_family=AF_UNSPEC)
	Set NIC to use as multicast interface.

Public Member Functions inherited from ACE_SOCK
int	set_option (int level, int option, void *optval, int optlen) const
	Wrapper around the `setsockopt` system call.

int	get_option (int level, int option, void optval, int optlen) const
	Wrapper around the `getsockopt` system call.

int	close ()

int	get_local_addr (ACE_Addr &) const

int	get_remote_addr (ACE_Addr &) const

void	dump () const
	Dump the state of an object.

int	open (int type, int protocol_family, int protocol, int reuse_addr)
	Wrapper around the BSD-style `socket` system call (no QoS).

int	open (int type, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)
	Wrapper around the QoS-enabled `WSASocket` function.

Public Member Functions inherited from ACE_IPC_SAP
int	control (int cmd, void *) const
	Interface for <ioctl>.

int	enable (int value) const

int	disable (int value) const

ACE_HANDLE	get_handle () const
	Get the underlying handle.

void	set_handle (ACE_HANDLE handle)
	Set the underlying handle.

void	dump () const
	Dump the state of an object.

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Public Attributes inherited from ACE_SOCK_Dgram
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Public Attributes inherited from ACE_SOCK
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Public Attributes inherited from ACE_IPC_SAP
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Private Member Functions
int	mk_broadcast (const ACE_TCHAR *host_name)
	Make broadcast available for Datagram socket.

int	get_remote_addr (ACE_Addr &) const
	Do not allow this function to percolate up to this interface...

Private Attributes
ACE_Bcast_Node *	if_list_
	Points to the head of the list of broadcast interfaces.

Additional Inherited Members
Public Types inherited from ACE_SOCK_Dgram
typedef ACE_INET_Addr	PEER_ADDR

Protected Member Functions inherited from ACE_SOCK_Dgram
int	shared_open (const ACE_Addr &local, int protocol_family, int ipv6_only=0)
	Open is shared by this and by <LSOCK_Dgram>.

int	make_multicast_ifaddr (ip_mreq mreq, const ACE_INET_Addr &mcast_addr, const ACE_TCHAR net_if)

int	make_multicast_ifaddr6 (ipv6_mreq mreq, const ACE_INET_Addr &mcast_addr, const ACE_TCHAR net_if)

Protected Member Functions inherited from ACE_SOCK
	ACE_SOCK (int type, int protocol_family, int protocol=0, int reuse_addr=0)

	ACE_SOCK (int type, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)

	ACE_SOCK ()

	~ACE_SOCK ()=default
	Protected destructor.

Protected Member Functions inherited from ACE_IPC_SAP
	ACE_IPC_SAP ()
	Default constructor.

	~ACE_IPC_SAP ()
	Protected destructor.

Detailed Description

Defines the member functions for the ACE_SOCK datagram abstraction.

Constructor & Destructor Documentation

◆ ACE_SOCK_Dgram_Bcast() [1/2]

ACE_SOCK_Dgram_Bcast::ACE_SOCK_Dgram_Bcast ( )

Default constructor.

◆ ACE_SOCK_Dgram_Bcast() [2/2]

ACE_SOCK_Dgram_Bcast::ACE_SOCK_Dgram_Bcast	(	const ACE_Addr &	local,
		int	protocol_family = PF_INET,
		int	protocol = 0,
		int	reuse_addr = 0,
		const ACE_TCHAR *	host_name = 0 )

◆ ~ACE_SOCK_Dgram_Bcast()

ACE_SOCK_Dgram_Bcast::~ACE_SOCK_Dgram_Bcast ( )

inline

Default dtor.

Member Function Documentation

◆ close()

int ACE_SOCK_Dgram_Bcast::close ( )

Close up and release dynamically allocated resources.

◆ dump()

void ACE_SOCK_Dgram_Bcast::dump ( ) const

Dump the state of an object.

◆ get_remote_addr()

int ACE_SOCK_Dgram_Bcast::get_remote_addr ( ACE_Addr & ) const

private

Do not allow this function to percolate up to this interface...

◆ mk_broadcast()

int ACE_SOCK_Dgram_Bcast::mk_broadcast ( const ACE_TCHAR * host_name )

private

Make broadcast available for Datagram socket.

◆ open()

int ACE_SOCK_Dgram_Bcast::open	(	const ACE_Addr &	local,
		int	protocol_family = PF_INET,
		int	protocol = 0,
		int	reuse_addr = 0,
		const ACE_TCHAR *	host_name = 0 )

Initiate a connectionless datagram broadcast endpoint.

◆ send() [1/4]

ssize_t ACE_SOCK_Dgram_Bcast::send	(	const iovec	iov[],
		int	n,
		const ACE_Addr &	addr,
		int	flags = 0 ) const

Broadcast an iovec of size n to addr as a datagram (note that addr must be preassigned to the broadcast address of the subnet...)

◆ send() [2/4]

ssize_t ACE_SOCK_Dgram_Bcast::send	(	const iovec	iov[],
		int	n,
		u_short	portnum,
		int	flags = 0 ) const

Broadcast the iov datagrams to every interface. Returns the average number of bytes sent.

◆ send() [3/4]

ssize_t ACE_SOCK_Dgram_Bcast::send	(	const void *	buf,
		size_t	n,
		const ACE_Addr &	addr,
		int	flags = 0 ) const

inline

Broadcast an N byte datagram to ADDR (note that addr must be preassigned to the broadcast address of the subnet...).

◆ send() [4/4]

ssize_t ACE_SOCK_Dgram_Bcast::send	(	const void *	buf,
		size_t	n,
		u_short	portnum,
		int	flags = 0 ) const

Broadcast the datagram to every interface. Returns the average number of bytes sent.

Member Data Documentation

◆ ACE_ALLOC_HOOK_DECLARE

ACE_SOCK_Dgram_Bcast::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

◆ if_list_

ACE_Bcast_Node* ACE_SOCK_Dgram_Bcast::if_list_

private

Points to the head of the list of broadcast interfaces.

The documentation for this class was generated from the following files:
