Defines the member functions for the ACE_SOCK datagram abstraction. More...

#include <SOCK_Dgram.h>

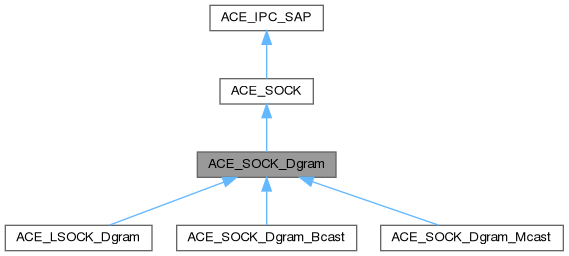

Inheritance diagram for ACE_SOCK_Dgram:

[legend]

Collaboration diagram for ACE_SOCK_Dgram:

[legend]

Public Types
typedef ACE_INET_Addr	PEER_ADDR

Public Member Functions
	ACE_SOCK_Dgram ()
	Default constructor.

	ACE_SOCK_Dgram (const ACE_Addr &local, int protocol_family=ACE_PROTOCOL_FAMILY_INET, int protocol=0, int reuse_addr=0, int ipv6_only=0)

	ACE_SOCK_Dgram (const ACE_Addr &local, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0, int ipv6_only=0)

int	open (const ACE_Addr &local, int protocol_family=ACE_PROTOCOL_FAMILY_INET, int protocol=0, int reuse_addr=0, int ipv6_only=0)

int	open (const ACE_Addr &local, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0, int ipv6_only=0)

	~ACE_SOCK_Dgram ()
	Default dtor.

ssize_t	send (const void *buf, size_t n, const ACE_Addr &addr, int flags=0) const
	Send an n byte buf to the datagram socket (uses <sendto(3)>).

ssize_t	recv (void *buf, size_t n, ACE_Addr &addr, int flags=0) const

ssize_t	recv (iovec io_vec, ACE_Addr &addr, int flags=0, const ACE_Time_Value timeout=0) const

ssize_t	send (const iovec iov[], int n, const ACE_Addr &addr, int flags=0) const

ssize_t	recv (iovec iov[], int n, ACE_Addr &addr, int flags=0, ACE_INET_Addr *to_addr=0) const

ssize_t	recv (void buf, size_t n, ACE_Addr &addr, int flags, const ACE_Time_Value timeout) const

ssize_t	send (const void buf, size_t n, const ACE_Addr &addr, int flags, const ACE_Time_Value timeout) const

ssize_t	send (const iovec buffers[], int buffer_count, size_t &number_of_bytes_sent, int flags, const ACE_Addr &addr, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const

ssize_t	recv (iovec buffers[], int buffer_count, size_t &number_of_bytes_recvd, int &flags, ACE_Addr &addr, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const

ssize_t	send (const void buf, size_t n, const ACE_Addr &addr, int flags, ACE_OVERLAPPED overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
	Send an n byte buf to the datagram socket (uses <WSASendTo>).

ssize_t	recv (void buf, size_t n, ACE_Addr &addr, int flags, ACE_OVERLAPPED overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const

void	dump () const
	Dump the state of an object.

int	set_nic (const ACE_TCHAR *net_if, int addr_family=AF_UNSPEC)
	Set NIC to use as multicast interface.

Public Member Functions inherited from ACE_SOCK
int	set_option (int level, int option, void *optval, int optlen) const
	Wrapper around the `setsockopt` system call.

int	get_option (int level, int option, void optval, int optlen) const
	Wrapper around the `getsockopt` system call.

int	close ()

int	get_local_addr (ACE_Addr &) const

int	get_remote_addr (ACE_Addr &) const

void	dump () const
	Dump the state of an object.

int	open (int type, int protocol_family, int protocol, int reuse_addr)
	Wrapper around the BSD-style `socket` system call (no QoS).

int	open (int type, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)
	Wrapper around the QoS-enabled `WSASocket` function.

Public Member Functions inherited from ACE_IPC_SAP
int	control (int cmd, void *) const
	Interface for <ioctl>.

int	enable (int value) const

int	disable (int value) const

ACE_HANDLE	get_handle () const
	Get the underlying handle.

void	set_handle (ACE_HANDLE handle)
	Set the underlying handle.

void	dump () const
	Dump the state of an object.

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Public Attributes inherited from ACE_SOCK
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Public Attributes inherited from ACE_IPC_SAP
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Protected Member Functions
int	shared_open (const ACE_Addr &local, int protocol_family, int ipv6_only=0)
	Open is shared by this and by <LSOCK_Dgram>.

int	make_multicast_ifaddr (ip_mreq mreq, const ACE_INET_Addr &mcast_addr, const ACE_TCHAR net_if)

int	make_multicast_ifaddr6 (ipv6_mreq mreq, const ACE_INET_Addr &mcast_addr, const ACE_TCHAR net_if)

Protected Member Functions inherited from ACE_SOCK
	ACE_SOCK (int type, int protocol_family, int protocol=0, int reuse_addr=0)

	ACE_SOCK (int type, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)

	ACE_SOCK ()

	~ACE_SOCK ()=default
	Protected destructor.

Protected Member Functions inherited from ACE_IPC_SAP
	ACE_IPC_SAP ()
	Default constructor.

	~ACE_IPC_SAP ()
	Protected destructor.

Private Member Functions
int	get_remote_addr (ACE_Addr &) const
	Do not allow this function to percolate up to this interface...

Detailed Description

Defines the member functions for the ACE_SOCK datagram abstraction.

Member Typedef Documentation

◆ PEER_ADDR

typedef ACE_INET_Addr ACE_SOCK_Dgram::PEER_ADDR

Constructor & Destructor Documentation

◆ ACE_SOCK_Dgram() [1/3]

ACE_SOCK_Dgram::ACE_SOCK_Dgram ( )

inline

Default constructor.

◆ ACE_SOCK_Dgram() [2/3]

ACE_SOCK_Dgram::ACE_SOCK_Dgram	(	const ACE_Addr &	local,
		int	protocol_family = ACE_PROTOCOL_FAMILY_INET,
		int	protocol = 0,
		int	reuse_addr = 0,
		int	ipv6_only = 0 )

This is a BSD-style method (i.e., no QoS) for initiating a socket dgram that will accept datagrams at the <local> address.

◆ ACE_SOCK_Dgram() [3/3]

ACE_SOCK_Dgram::ACE_SOCK_Dgram	(	const ACE_Addr &	local,
		int	protocol_family,
		int	protocol,
		ACE_Protocol_Info *	protocolinfo,
		ACE_SOCK_GROUP	g = 0,
		u_long	flags = 0,
		int	reuse_addr = 0,
		int	ipv6_only = 0 )

This is a QoS-enabed method for initiating a socket dgram that will accept datagrams at the <local> address. The qos_params are passed to <ACE_OS::join_leaf>.

◆ ~ACE_SOCK_Dgram()

ACE_SOCK_Dgram::~ACE_SOCK_Dgram ( )

inline

Default dtor.

Member Function Documentation

◆ dump()

void ACE_SOCK_Dgram::dump ( ) const

Dump the state of an object.

◆ get_remote_addr()

int ACE_SOCK_Dgram::get_remote_addr ( ACE_Addr & ) const

private

Do not allow this function to percolate up to this interface...

◆ make_multicast_ifaddr()

int ACE_SOCK_Dgram::make_multicast_ifaddr	(	ip_mreq *	mreq,
		const ACE_INET_Addr &	mcast_addr,
		const ACE_TCHAR *	net_if )

protected

Create a multicast addr/if pair, in format useful for system calls. If mreq param is NULL, just verify the passed addr/interface specs.

◆ make_multicast_ifaddr6()

int ACE_SOCK_Dgram::make_multicast_ifaddr6	(	ipv6_mreq *	mreq,
		const ACE_INET_Addr &	mcast_addr,
		const ACE_TCHAR *	net_if )

protected

Create a multicast addr/if pair, in format useful for system calls. If mreq param is NULL, just verify the passed addr/interface specs.

◆ open() [1/2]

int ACE_SOCK_Dgram::open	(	const ACE_Addr &	local,
		int	protocol_family,
		int	protocol,
		ACE_Protocol_Info *	protocolinfo,
		ACE_SOCK_GROUP	g = 0,
		u_long	flags = 0,
		int	reuse_addr = 0,
		int	ipv6_only = 0 )

This is a QoS-enabed method for initiating a socket dgram that will accept datagrams at the <local> address. The qos_params are passed to <ACE_OS::join_leaf>.

◆ open() [2/2]

int ACE_SOCK_Dgram::open	(	const ACE_Addr &	local,
		int	protocol_family = ACE_PROTOCOL_FAMILY_INET,
		int	protocol = 0,
		int	reuse_addr = 0,
		int	ipv6_only = 0 )

This is a BSD-style method (i.e., no QoS) for initiating a socket dgram that will accept datagrams at the <local> address.

◆ recv() [1/6]

ssize_t ACE_SOCK_Dgram::recv	(	iovec *	io_vec,
		ACE_Addr &	addr,
		int	flags = 0,
		const ACE_Time_Value *	timeout = 0 ) const

Allows a client to read from a socket without having to provide a buffer to read. This method determines how much data is in the socket, allocates a buffer of this size, reads in the data, and returns the number of bytes read. The caller is responsible for deleting the member in the <iov_base> field of <io_vec> using the `‘delete []’' syntax.

◆ recv() [2/6]

ssize_t ACE_SOCK_Dgram::recv	(	iovec	buffers[],
		int	buffer_count,
		size_t &	number_of_bytes_recvd,
		int &	flags,
		ACE_Addr &	addr,
		ACE_OVERLAPPED *	overlapped,
		ACE_OVERLAPPED_COMPLETION_FUNC	func ) const

inline

Recv <buffer_count> worth of buffers from addr using overlapped I/O (uses <WSARecvFrom>). Returns 0 on success.

◆ recv() [3/6]

ssize_t ACE_SOCK_Dgram::recv	(	iovec	iov[],
		int	n,
		ACE_Addr &	addr,
		int	flags = 0,
		ACE_INET_Addr *	to_addr = 0 ) const

Recv an <iovec> of size n to the datagram socket (uses <recvmsg(3)>). The IP destination address will be placed in *to_addr if it is not null and set_option has been called with 1) level IPPROTO_IP, option ACE_RECVPKTINFO, and value 1 for IPV4 addresses or 2) IPPROTO_IPV6, option ACE_RECVPKTINFO6, and value 1 for IPV6 addresses.

◆ recv() [4/6]

ssize_t ACE_SOCK_Dgram::recv	(	void *	buf,
		size_t	n,
		ACE_Addr &	addr,
		int	flags,
		ACE_OVERLAPPED *	overlapped,
		ACE_OVERLAPPED_COMPLETION_FUNC	func ) const

inline

Receive an n byte buf from the datagram socket (uses <WSARecvFrom>).

◆ recv() [5/6]

ssize_t ACE_SOCK_Dgram::recv	(	void *	buf,
		size_t	n,
		ACE_Addr &	addr,
		int	flags,
		const ACE_Time_Value *	timeout ) const

Wait up to timeout amount of time to receive a datagram into buf. The ACE_Time_Value indicates how long to blocking trying to receive. If timeout == 0, the caller will block until action is possible, else will wait until the relative time specified in *timeout elapses). If <recv> times out a -1 is returned with errno == ETIME. If it succeeds the number of bytes received is returned.

◆ recv() [6/6]

ssize_t ACE_SOCK_Dgram::recv	(	void *	buf,
		size_t	n,
		ACE_Addr &	addr,
		int	flags = 0 ) const

inline

Receive an n byte buf from the datagram socket (uses <recvfrom(3)>).

◆ send() [1/5]

ssize_t ACE_SOCK_Dgram::send	(	const iovec	buffers[],
		int	buffer_count,
		size_t &	number_of_bytes_sent,
		int	flags,
		const ACE_Addr &	addr,
		ACE_OVERLAPPED *	overlapped,
		ACE_OVERLAPPED_COMPLETION_FUNC	func ) const

inline

Send <buffer_count> worth of buffers to addr using overlapped I/O (uses <WSASendTo>). Returns 0 on success.

◆ send() [2/5]

ssize_t ACE_SOCK_Dgram::send	(	const iovec	iov[],
		int	n,
		const ACE_Addr &	addr,
		int	flags = 0 ) const

Send an <iovec> of size n to the datagram socket (uses <sendmsg(3)>).

Send an iovec of size N to ADDR as a datagram (connectionless version).

◆ send() [3/5]

ssize_t ACE_SOCK_Dgram::send	(	const void *	buf,
		size_t	n,
		const ACE_Addr &	addr,
		int	flags,
		ACE_OVERLAPPED *	overlapped,
		ACE_OVERLAPPED_COMPLETION_FUNC	func ) const

inline

Send an n byte buf to the datagram socket (uses <WSASendTo>).

◆ send() [4/5]

ssize_t ACE_SOCK_Dgram::send	(	const void *	buf,
		size_t	n,
		const ACE_Addr &	addr,
		int	flags,
		const ACE_Time_Value *	timeout ) const

Wait up to timeout amount of time to send a datagram to buf. The ACE_Time_Value indicates how long to blocking trying to receive. If timeout == 0, the caller will block until action is possible, else will wait until the relative time specified in *timeout elapses). If <send> times out a -1 is returned with errno == ETIME. If it succeeds the number of bytes sent is returned.

◆ send() [5/5]

ssize_t ACE_SOCK_Dgram::send	(	const void *	buf,
		size_t	n,
		const ACE_Addr &	addr,
		int	flags = 0 ) const

inline

Send an n byte buf to the datagram socket (uses <sendto(3)>).

◆ set_nic()

int ACE_SOCK_Dgram::set_nic	(	const ACE_TCHAR *	net_if,
		int	addr_family = AF_UNSPEC )

Set NIC to use as multicast interface.

◆ shared_open()

int ACE_SOCK_Dgram::shared_open	(	const ACE_Addr &	local,
		int	protocol_family,
		int	ipv6_only = 0 )

protected

Open is shared by this and by <LSOCK_Dgram>.

Member Data Documentation

◆ ACE_ALLOC_HOOK_DECLARE

ACE_SOCK_Dgram::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

The documentation for this class was generated from the following files:
