ACE_Sig_Handler Class Reference

This is the main dispatcher of signals for ACE. It improves the existing UNIX signal handling mechanism by allowing C++ objects to handle signals in a way that avoids the use of global/static variables and functions. More...

#include <Sig_Handler.h>

Inheritance diagram for ACE_Sig_Handler:

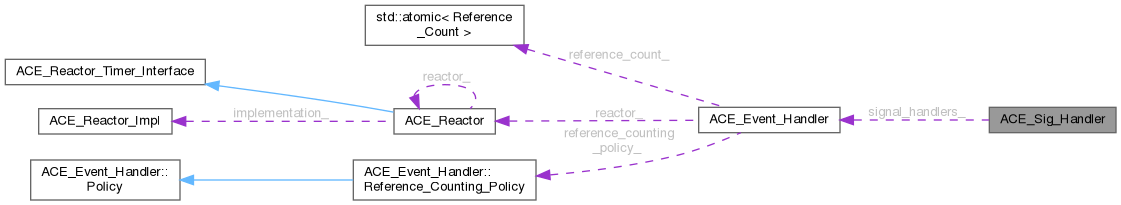

Collaboration diagram for ACE_Sig_Handler:

Public Member Functions
	ACE_Sig_Handler ()
	Default constructor.
virtual	~ACE_Sig_Handler ()
	Destructor.
virtual int	register_handler (int signum, ACE_Event_Handler *new_sh, ACE_Sig_Action *new_disp=0, ACE_Event_Handler **old_sh=0, ACE_Sig_Action *old_disp=0)
virtual int	remove_handler (int signum, ACE_Sig_Action *new_disp=0, ACE_Sig_Action *old_disp=0, int sigkey=-1)
	Remove an ACE_Event_Handler.
virtual ACE_Event_Handler *	handler (int signum)
	Return the ACE_Sig_Handler associated with signum.
virtual ACE_Event_Handler *	handler (int signum, ACE_Event_Handler *)
void	dump () const
	Dump the state of an object.

Static Public Member Functions
static int	sig_pending ()
	True if there is a pending signal.
static void	sig_pending (int)
	Reset the value of sig_pending_ so that no signal is pending.
static void	dispatch (int, siginfo_t *, ucontext_t *)

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Static Protected Member Functions
static ACE_Event_Handler *	handler_i (int signum, ACE_Event_Handler *)
static int	register_handler_i (int signum, ACE_Event_Handler *new_sh, ACE_Sig_Action *new_disp=nullptr, ACE_Event_Handler **old_sh=nullptr, ACE_Sig_Action *old_disp=nullptr)
static int	remove_handler_i (int signum, ACE_Sig_Action *new_disp=nullptr, ACE_Sig_Action *old_disp=nullptr, int sigkey=-1)
static int	in_range (int signum)
	Check whether the SIGNUM is within the legal range of signals.

Static Protected Attributes
static sig_atomic_t	sig_pending_ = 0
	Keeps track of whether a signal is pending.

Static Private Attributes
static ACE_Event_Handler *	signal_handlers_ [ACE_NSIG]
	Array of Event_Handlers that will handle the signals.

Detailed Description

This is the main dispatcher of signals for ACE. It improves the existing UNIX signal handling mechanism by allowing C++ objects to handle signals in a way that avoids the use of global/static variables and functions.

Using this class a program can register an ACE_Event_Handler with the ACE_Sig_Handler in order to handle a designated signum. When a signal occurs that corresponds to this signum, the handle_signal method of the registered ACE_Event_Handler is invoked automatically.

Constructor & Destructor Documentation

ACE_Sig_Handler()

ACE_Sig_Handler::ACE_Sig_Handler ( )

inline

Default constructor.

~ACE_Sig_Handler()

ACE_Sig_Handler::~ACE_Sig_Handler ( )

virtual

Destructor.

Member Function Documentation

dispatch()

void ACE_Sig_Handler::dispatch ( int signum, siginfo_t * siginfo, ucontext_t * ucontext )

static

Callback routine registered with sigaction(2) that dispatches the handle_signal() method of the appropriate pre-registered ACE_Event_Handler.

Master dispatcher function that gets called by a signal handler and dispatches one handler...

dump()

void ACE_Sig_Handler::dump

(

)

const

Dump the state of an object.

handler() [1/2]

ACE_Event_Handler * ACE_Sig_Handler::handler ( int signum )

virtual

Return the ACE_Sig_Handler associated with signum.

Reimplemented in ACE_Sig_Handlers.

handler() [2/2]

ACE_Event_Handler * ACE_Sig_Handler::handler ( int signum, ACE_Event_Handler * new_sh )

virtual

Set a new ACE_Event_Handler that is associated with signum. Return the existing handler.

Reimplemented in ACE_Sig_Handlers.

handler_i()

ACE_Event_Handler * ACE_Sig_Handler::handler_i ( int signum, ACE_Event_Handler * new_sh )

staticprotected

Set a new ACE_Event_Handler that is associated with signum. Return the existing handler. Does not acquire any locks so that it can be called from a signal handler, such as dispatch().

in_range()

int ACE_Sig_Handler::in_range ( int signum )

inlinestaticprotected

Check whether the SIGNUM is within the legal range of signals.

register_handler()

int ACE_Sig_Handler::register_handler ( int signum, ACE_Event_Handler * new_sh, ACE_Sig_Action * new_disp = 0, ACE_Event_Handler ** old_sh = 0, ACE_Sig_Action * old_disp = 0 )

virtual

Add a new ACE_Event_Handler and a new sigaction associated with signum. Passes back the existing ACE_Event_Handler and its sigaction if pointers are non-zero. Returns -1 on failure and >= 0 on success.

Register an ACE_Event_Handler along with the corresponding SIGNUM. This method acquires a lock, so it can't be called from a signal handler, e.g., <dispatch>.

Reimplemented in ACE_Sig_Handlers.

register_handler_i()

int ACE_Sig_Handler::register_handler_i ( int signum, ACE_Event_Handler * new_sh, ACE_Sig_Action * new_disp = nullptr, ACE_Event_Handler ** old_sh = nullptr, ACE_Sig_Action * old_disp = nullptr )

staticprotected

This implementation method is called by register_handler() and dispatch. It doesn't do any locking so that it can be called within a signal handler, such as dispatch. It adds a new ACE_Event_Handler and a new sigaction associated with signum. Passes back the existing ACE_Event_Handler and its sigaction if pointers are non-zero. Returns -1 on failure and >= 0 on success.

Register an ACE_Event_Handler along with the corresponding SIGNUM. This method does NOT acquire any locks, so it can be called from a signal handler.

remove_handler()

int ACE_Sig_Handler::remove_handler ( int signum, ACE_Sig_Action * new_disp = 0, ACE_Sig_Action * old_disp = 0, int sigkey = -1 )

virtual

Remove an ACE_Event_Handler.

Remove the ACE_Event_Handler currently associated with signum. sigkey is ignored in this implementation since there is only one instance of a signal handler. Install the new disposition (if given) and return the previous disposition (if desired by the caller). Returns 0 on success and -1 if signum is invalid.

Reimplemented in ACE_Sig_Handlers.

remove_handler_i()

int ACE_Sig_Handler::remove_handler_i ( int signum, ACE_Sig_Action * new_disp = nullptr, ACE_Sig_Action * old_disp = nullptr, int sigkey = -1 )

staticprotected

sig_pending() [1/2]

int ACE_Sig_Handler::sig_pending ( )

static

True if there is a pending signal.

sig_pending() [2/2]

void ACE_Sig_Handler::sig_pending ( int pending )

static

Reset the value of sig_pending_ so that no signal is pending.

Member Data Documentation

ACE_ALLOC_HOOK_DECLARE

ACE_Sig_Handler::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

sig_pending_

sig_atomic_t ACE_Sig_Handler::sig_pending_ = 0

staticprotected

Keeps track of whether a signal is pending.

Remembers if a signal has occurred.

signal_handlers_

ACE_Event_Handler * ACE_Sig_Handler::signal_handlers_

staticprivate

Array of Event_Handlers that will handle the signals.

Array used to store one user-defined Event_Handler for every signal.

---

The documentation for this class was generated from the following files:

• Sig_Handler.h
• Sig_Handler.cpp
• Sig_Handler.inl
