ACE_Select_Reactor_Notify Class Reference

Unblock the ACE_Select_Reactor from its event loop. More...

#include <Select_Reactor_Base.h>

Inheritance diagram for ACE_Select_Reactor_Notify:

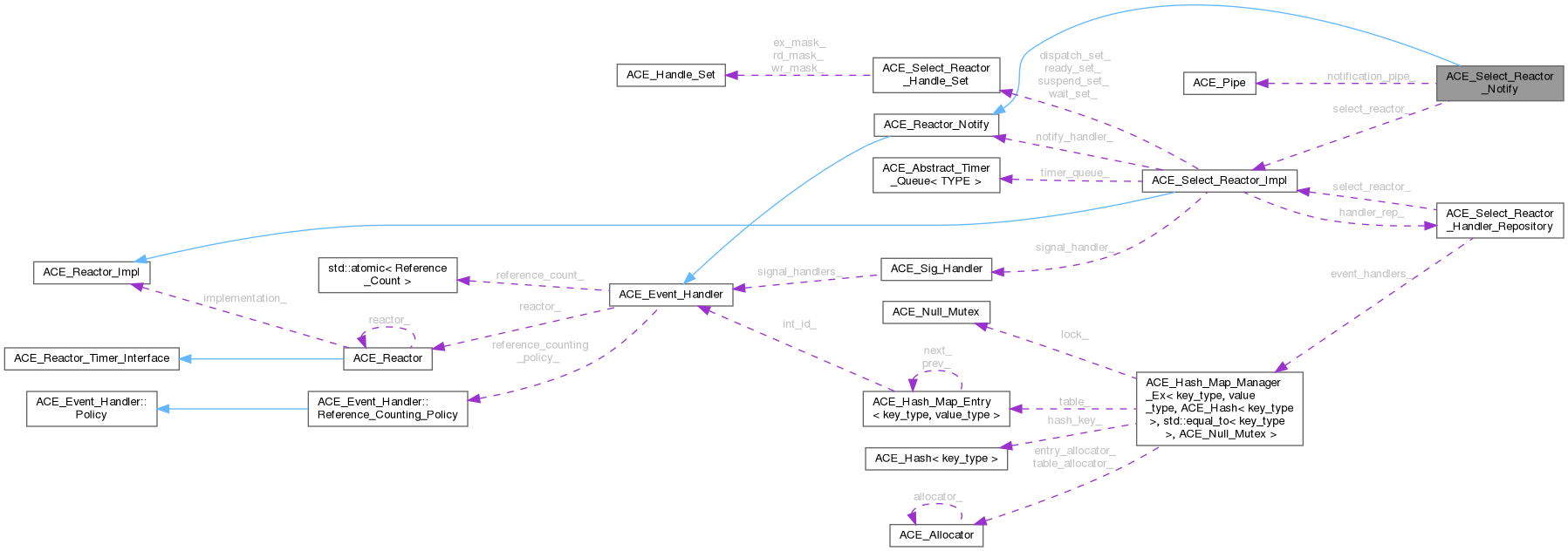

Collaboration diagram for ACE_Select_Reactor_Notify:

Public Member Functions
	ACE_Select_Reactor_Notify ()
	Constructor.
virtual	~ACE_Select_Reactor_Notify ()
	Destructor.
virtual int	open (ACE_Reactor_Impl *, ACE_Timer_Queue *=0, int disable_notify_pipe=ACE_DISABLE_NOTIFY_PIPE_DEFAULT)
	Initialize.
virtual int	close ()
	Destroy.
virtual int	notify (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value *timeout=0)
virtual int	dispatch_notifications (int &number_of_active_handles, ACE_Handle_Set &rd_mask)
virtual ACE_HANDLE	notify_handle ()
virtual int	dispatch_notify (ACE_Notification_Buffer &buffer)
virtual int	read_notify_pipe (ACE_HANDLE handle, ACE_Notification_Buffer &buffer)
virtual int	is_dispatchable (ACE_Notification_Buffer &buffer)
	Verify whether the buffer has dispatchable info or not.
virtual int	handle_input (ACE_HANDLE handle)
virtual void	max_notify_iterations (int)
virtual int	max_notify_iterations ()
virtual int	purge_pending_notifications (ACE_Event_Handler *sh, ACE_Reactor_Mask mask=ACE_Event_Handler::ALL_EVENTS_MASK)
virtual void	dump () const
	Dump the state of an object.
Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler ()=default
	Destructor is virtual to enable proper cleanup.
virtual ACE_HANDLE	get_handle () const
	Get the I/O handle.
virtual void	set_handle (ACE_HANDLE)
	Set the I/O handle.
virtual int	priority () const
virtual void	priority (int priority)
	Set the priority of the Event_Handler.
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when an exceptional events occur (e.g., SIGURG).
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	handle_exit (ACE_Process *)
	Called when a process exits.
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)
virtual int	resume_handler ()
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void	reactor (ACE_Reactor *reactor)
	Set the event demultiplexors.
virtual ACE_Reactor *	reactor () const
	Get the event demultiplexors.
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface () const
	Get only the reactor's timer related interface.
virtual Reference_Count	add_reference ()
	Increment reference count on the handler.
virtual Reference_Count	remove_reference ()
	Decrement reference count on the handler.
Reference_Counting_Policy &	reference_counting_policy ()
	Current Reference_Counting_Policy.

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Protected Attributes
ACE_Select_Reactor_Impl *	select_reactor_
ACE_Pipe	notification_pipe_
int	max_notify_iterations_
Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_
	Reference count.

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
enum	{   LO_PRIORITY = 0 , HI_PRIORITY = 10 , NULL_MASK = 0 , READ_MASK = (1 << 0) ,   WRITE_MASK = (1 << 1) , EXCEPT_MASK = (1 << 2) , ACCEPT_MASK = (1 << 3) , CONNECT_MASK = (1 << 4) ,   TIMER_MASK = (1 << 5) , QOS_MASK = (1 << 6) , GROUP_QOS_MASK = (1 << 7) , SIGNAL_MASK = (1 << 8) ,   ALL_EVENTS_MASK , RWE_MASK , DONT_CALL = (1 << 9) }
enum	{ ACE_EVENT_HANDLER_NOT_RESUMED = -1 , ACE_REACTOR_RESUMES_HANDLER = 0 , ACE_APPLICATION_RESUMES_HANDLER }
typedef long	Reference_Count
	Reference count type.
Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)
static int	register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int	remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
	Performs the inverse of the register_stdin_handler() method.
Protected Types inherited from ACE_Event_Handler
typedef std::atomic< Reference_Count >	Atomic_Reference_Count
	Typedef for implementation of reference counting.
Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=nullptr, int priority=ACE_Event_Handler::LO_PRIORITY)
	Force ACE_Event_Handler to be an abstract base class.

Detailed Description

Unblock the ACE_Select_Reactor from its event loop.

This implementation is necessary for cases where the ACE_Select_Reactor is run in a multi-threaded program. In this case, we need to be able to unblock select or poll when updates occur other than in the main ACE_Select_Reactor thread. To do this, we signal an auto-reset event the ACE_Select_Reactor is listening on. If an ACE_Event_Handler and ACE_Select_Reactor_Mask is passed to notify, the appropriate handle_* method is dispatched in the context of the ACE_Select_Reactor thread.

Constructor & Destructor Documentation

ACE_Select_Reactor_Notify()

ACE_Select_Reactor_Notify::ACE_Select_Reactor_Notify

(

)

Constructor.

~ACE_Select_Reactor_Notify()

ACE_Select_Reactor_Notify::~ACE_Select_Reactor_Notify ( )

virtual

Destructor.

Member Function Documentation

close()

int ACE_Select_Reactor_Notify::close ( )

virtual

Destroy.

Implements ACE_Reactor_Notify.

dispatch_notifications()

int ACE_Select_Reactor_Notify::dispatch_notifications ( int & number_of_active_handles, ACE_Handle_Set & rd_mask )

virtual

Handles pending threads (if any) that are waiting to unblock the ACE_Select_Reactor.

Implements ACE_Reactor_Notify.

dispatch_notify()

int ACE_Select_Reactor_Notify::dispatch_notify ( ACE_Notification_Buffer & buffer )

virtual

Handle one of the notify call on the handle. This could be because of a thread trying to unblock the Reactor_Impl

Implements ACE_Reactor_Notify.

dump()

void ACE_Select_Reactor_Notify::dump ( ) const

virtual

Dump the state of an object.

Implements ACE_Reactor_Notify.

handle_input()

int ACE_Select_Reactor_Notify::handle_input ( ACE_HANDLE handle )

virtual

Called back by the ACE_Select_Reactor when a thread wants to unblock us.

Reimplemented from ACE_Event_Handler.

is_dispatchable()

int ACE_Select_Reactor_Notify::is_dispatchable ( ACE_Notification_Buffer & buffer )

virtual

Verify whether the buffer has dispatchable info or not.

Implements ACE_Reactor_Notify.

max_notify_iterations() [1/2]

int ACE_Select_Reactor_Notify::max_notify_iterations ( )

virtual

Get the maximum number of times that the ACE_Select_Reactor_Notify::handle_input() method will iterate and dispatch the ACE_Event_Handlers that are passed in via the notify pipe before breaking out of its recv loop.

Implements ACE_Reactor_Notify.

max_notify_iterations() [2/2]

void ACE_Select_Reactor_Notify::max_notify_iterations ( int iterations )

virtual

Set the maximum number of times that the ACE_Select_Reactor_Notify::handle_input() method will iterate and dispatch the ACE_Event_Handlers that are passed in via the notify pipe before breaking out of its recv loop. By default, this is set to -1, which means "iterate until the pipe is empty." Setting this to a value like "1 or 2" will increase "fairness" (and thus prevent starvation) at the expense of slightly higher dispatching overhead.

Implements ACE_Reactor_Notify.

notify()

int ACE_Select_Reactor_Notify::notify ( ACE_Event_Handler * event_handler = 0, ACE_Reactor_Mask mask = ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value * timeout = 0 )

virtual

Called by a thread when it wants to unblock the ACE_Select_Reactor. This wakeups the ACE_Select_Reactor if currently blocked in select/poll. Pass over both the Event_Handler and the mask to allow the caller to dictate which Event_Handler method the ACE_Select_Reactor will invoke. The ACE_Time_Value indicates how long to blocking trying to notify the ACE_Select_Reactor. If timeout == 0, the caller will block until action is possible, else will wait until the relative time specified in *timeout elapses).

Implements ACE_Reactor_Notify.

notify_handle()

ACE_HANDLE ACE_Select_Reactor_Notify::notify_handle ( )

virtual

Returns the ACE_HANDLE of the notify pipe on which the reactor is listening for notifications so that other threads can unblock the Select_Reactor

Implements ACE_Reactor_Notify.

open()

int ACE_Select_Reactor_Notify::open ( ACE_Reactor_Impl * r, ACE_Timer_Queue * = 0, int disable_notify_pipe = ACE_DISABLE_NOTIFY_PIPE_DEFAULT )

virtual

Initialize.

Implements ACE_Reactor_Notify.

purge_pending_notifications()

int ACE_Select_Reactor_Notify::purge_pending_notifications ( ACE_Event_Handler * sh, ACE_Reactor_Mask mask = ACE_Event_Handler::ALL_EVENTS_MASK )

virtual

Purge any notifications pending in this reactor for the specified ACE_Event_Handler object. If eh == 0, all notifications for all handlers are removed (but not any notifications posted just to wake up the reactor itself). Returns the number of notifications purged. Returns -1 on error.

Implements ACE_Reactor_Notify.

read_notify_pipe()

int ACE_Select_Reactor_Notify::read_notify_pipe ( ACE_HANDLE handle, ACE_Notification_Buffer & buffer )

virtual

Read one of the notify call on the handle into the buffer. This could be because of a thread trying to unblock the Reactor_Impl

Return value semantics for this are: -1: nothing read, fatal, unrecoverable error 0: nothing read at all 1: complete buffer read

Implements ACE_Reactor_Notify.

Member Data Documentation

ACE_ALLOC_HOOK_DECLARE

ACE_Select_Reactor_Notify::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

max_notify_iterations_

int ACE_Select_Reactor_Notify::max_notify_iterations_

protected

Keeps track of the maximum number of times that the ACE_Select_Reactor_Notify::handle_input() method will iterate and dispatch the ACE_Event_Handlers that are passed in via the notify pipe before breaking out of its recv loop. By default, this is set to -1, which means "iterate until the pipe is empty."

notification_pipe_

ACE_Pipe ACE_Select_Reactor_Notify::notification_pipe_

protected

Contains the ACE_HANDLE the ACE_Select_Reactor is listening on, as well as the ACE_HANDLE that threads wanting the attention of the ACE_Select_Reactor will write to.

select_reactor_

ACE_Select_Reactor_Impl* ACE_Select_Reactor_Notify::select_reactor_

protected

Keep a back pointer to the ACE_Select_Reactor. If this value if NULL then the ACE_Select_Reactor has been initialized with disable_notify_pipe.

---

The documentation for this class was generated from the following files:

• Select_Reactor_Base.h
• Select_Reactor_Base.cpp
