ACE_Reactor_Notify Class Reference

Abstract class for unblocking an ACE_Reactor_Impl from its event loop. More...

#include <Reactor_Impl.h>

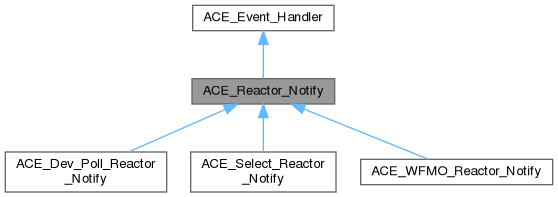

Inheritance diagram for ACE_Reactor_Notify:

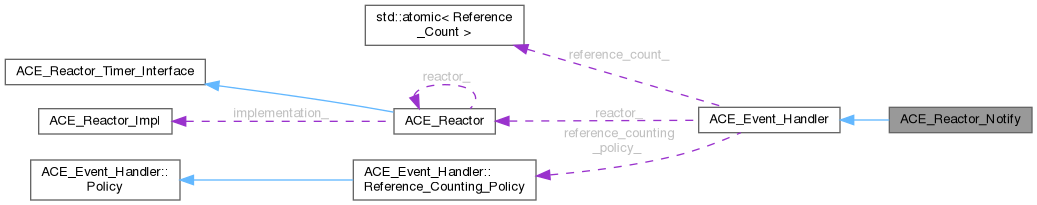

Collaboration diagram for ACE_Reactor_Notify:

Public Member Functions
virtual int	open (ACE_Reactor_Impl *, ACE_Timer_Queue *timer_queue=0, int disable_notify=0)=0
virtual int	close ()=0
virtual int	notify (ACE_Event_Handler *eh=0, ACE_Reactor_Mask mask=ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value *timeout=0)=0
virtual int	dispatch_notifications (int &number_of_active_handles, ACE_Handle_Set &rd_mask)=0
virtual ACE_HANDLE	notify_handle ()=0
virtual int	is_dispatchable (ACE_Notification_Buffer &buffer)=0
	Verify whether the buffer has dispatchable info or not.
virtual int	dispatch_notify (ACE_Notification_Buffer &buffer)=0
virtual int	read_notify_pipe (ACE_HANDLE handle, ACE_Notification_Buffer &buffer)=0
virtual void	max_notify_iterations (int)=0
virtual int	max_notify_iterations ()=0
virtual int	purge_pending_notifications (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)=0
virtual void	dump () const =0
	Dump the state of an object.
Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler ()=default
	Destructor is virtual to enable proper cleanup.
virtual ACE_HANDLE	get_handle () const
	Get the I/O handle.
virtual void	set_handle (ACE_HANDLE)
	Set the I/O handle.
virtual int	priority () const
virtual void	priority (int priority)
	Set the priority of the Event_Handler.
virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when input events occur (e.g., connection or data).
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when an exceptional events occur (e.g., SIGURG).
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	handle_exit (ACE_Process *)
	Called when a process exits.
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)
virtual int	resume_handler ()
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void	reactor (ACE_Reactor *reactor)
	Set the event demultiplexors.
virtual ACE_Reactor *	reactor () const
	Get the event demultiplexors.
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface () const
	Get only the reactor's timer related interface.
virtual Reference_Count	add_reference ()
	Increment reference count on the handler.
virtual Reference_Count	remove_reference ()
	Decrement reference count on the handler.
Reference_Counting_Policy &	reference_counting_policy ()
	Current Reference_Counting_Policy.

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
enum	{   LO_PRIORITY = 0 , HI_PRIORITY = 10 , NULL_MASK = 0 , READ_MASK = (1 << 0) ,   WRITE_MASK = (1 << 1) , EXCEPT_MASK = (1 << 2) , ACCEPT_MASK = (1 << 3) , CONNECT_MASK = (1 << 4) ,   TIMER_MASK = (1 << 5) , QOS_MASK = (1 << 6) , GROUP_QOS_MASK = (1 << 7) , SIGNAL_MASK = (1 << 8) ,   ALL_EVENTS_MASK , RWE_MASK , DONT_CALL = (1 << 9) }
enum	{ ACE_EVENT_HANDLER_NOT_RESUMED = -1 , ACE_REACTOR_RESUMES_HANDLER = 0 , ACE_APPLICATION_RESUMES_HANDLER }
typedef long	Reference_Count
	Reference count type.
Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)
static int	register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int	remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
	Performs the inverse of the register_stdin_handler() method.
Protected Types inherited from ACE_Event_Handler
typedef std::atomic< Reference_Count >	Atomic_Reference_Count
	Typedef for implementation of reference counting.
Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=nullptr, int priority=ACE_Event_Handler::LO_PRIORITY)
	Force ACE_Event_Handler to be an abstract base class.
Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_
	Reference count.

Detailed Description

Abstract class for unblocking an ACE_Reactor_Impl from its event loop.

This class is for ACE internal use only.

Member Function Documentation

close()

virtual int ACE_Reactor_Notify::close ( )

pure virtual

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

dispatch_notifications()

virtual int ACE_Reactor_Notify::dispatch_notifications ( int & number_of_active_handles, ACE_Handle_Set & rd_mask )

pure virtual

Handles pending threads (if any) that are waiting to unblock the Reactor_Impl.

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

dispatch_notify()

virtual int ACE_Reactor_Notify::dispatch_notify ( ACE_Notification_Buffer & buffer )

pure virtual

Handle one of the notify call on the handle. This could be because of a thread trying to unblock the Reactor_Impl

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

dump()

virtual void ACE_Reactor_Notify::dump ( ) const

pure virtual

Dump the state of an object.

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

is_dispatchable()

virtual int ACE_Reactor_Notify::is_dispatchable ( ACE_Notification_Buffer & buffer )

pure virtual

Verify whether the buffer has dispatchable info or not.

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

max_notify_iterations() [1/2]

virtual int ACE_Reactor_Notify::max_notify_iterations ( )

pure virtual

Get the maximum number of times that the handle_input method will iterate and dispatch the ACE_Event_Handlers that are passed in via the notify queue before breaking out of its event loop.

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

max_notify_iterations() [2/2]

virtual void ACE_Reactor_Notify::max_notify_iterations ( int )

pure virtual

Set the maximum number of times that the handle_input method will iterate and dispatch the ACE_Event_Handlers that are passed in via the notify queue before breaking out of the event loop. By default, this is set to -1, which means "iterate until the queue is empty." Setting this to a value like "1 or 2" will increase "fairness" (and thus prevent starvation) at the expense of slightly higher dispatching overhead.

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

notify()

virtual int ACE_Reactor_Notify::notify ( ACE_Event_Handler * eh = 0, ACE_Reactor_Mask mask = ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value * timeout = 0 )

pure virtual

Called by a thread when it wants to unblock the Reactor_Impl. This wakeups the Reactor_Impl if currently blocked. Pass over both the Event_Handler and the mask to allow the caller to dictate which Event_Handler method the Reactor_Impl will invoke. The ACE_Time_Value indicates how long to blocking trying to notify the Reactor_Impl. If timeout == 0, the caller will block until action is possible, else will wait until the relative time specified in *timeout elapses).

Implemented in ACE_Select_Reactor_Notify, ACE_Dev_Poll_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

notify_handle()

virtual ACE_HANDLE ACE_Reactor_Notify::notify_handle ( )

pure virtual

Returns the ACE_HANDLE of the notify pipe on which the reactor is listening for notifications so that other threads can unblock the Reactor_Impl

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

open()

virtual int ACE_Reactor_Notify::open ( ACE_Reactor_Impl * , ACE_Timer_Queue * timer_queue = 0, int disable_notify = 0 )

pure virtual

Implemented in ACE_Select_Reactor_Notify, ACE_Dev_Poll_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

purge_pending_notifications()

virtual int ACE_Reactor_Notify::purge_pending_notifications ( ACE_Event_Handler * = 0, ACE_Reactor_Mask = ACE_Event_Handler::ALL_EVENTS_MASK )

pure virtual

Purge any notifications pending in this reactor for the specified ACE_Event_Handler object. Returns the number of notifications purged. Returns -1 on error.

Implemented in ACE_WFMO_Reactor_Notify, ACE_Dev_Poll_Reactor_Notify, and ACE_Select_Reactor_Notify.

read_notify_pipe()

virtual int ACE_Reactor_Notify::read_notify_pipe ( ACE_HANDLE handle, ACE_Notification_Buffer & buffer )

pure virtual

Read one of the notify call on the handle into the buffer. This could be because of a thread trying to unblock the Reactor_Impl

Implemented in ACE_Dev_Poll_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_WFMO_Reactor_Notify.

---

The documentation for this class was generated from the following file:

• Reactor_Impl.h
